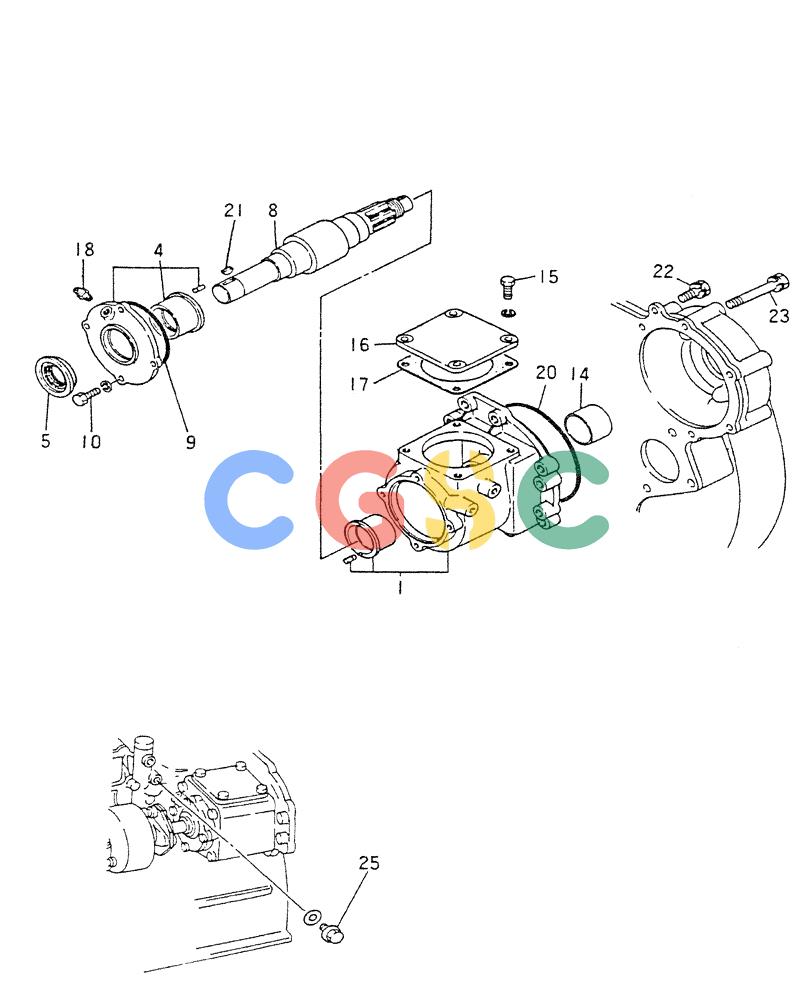

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (05-001) - FUEL INJECTION PUMP DRIVE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
161 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS0B | [1] | FUEL INJECTION PUMP DRIVE(M0) | |
| . . | 6D221CT-KS03 | [1] | FUEL INJECTION PUMP DRIVE(M0) | |
| . . | 6D221CT-KS0A | [1] | FUEL INJECTION PUMP DRIVE(M0) | |
| . . | 6D221CT-KS07 | [1] | FUEL INJECTION PUMP DRIVE(M0) | |
| 1-18. | VAME058313 | [1] | INJECTION PUMP DRIVE ASSY(SANWA) | |
| 1. | VAME713000 | [1] | CRANKCASE ASSY(ME057119) | |
| 4-5. | VAME713003 | [1] | BEARING HOLDER ASSY(3097501030) | |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER,BRG |
| 5. | VAME713004 | [1] | PISTON RING SET | KOBOILSEAL(30975206001) Superseded by part number: VA3097520600 |
| 8. | VA3092599100 | [1] | SHAFT, PUMP DRIVE SHAFT(PARTS EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINE) | SHAFT, PUMP DRIVE SHAFT(PARTS EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINE) |
| 9. | VAME713002 | [1] | O-RING | KOBO-RING(3097520400) Superseded by part number: 132630A1 |
| 10. | VAMF101256 | [4] | BOLT 8X22 | |
| . . | VAMF450405 | [4] | WASHER | KOBWASHER,SPG 8 Superseded by part number: 132502A1 |
| 14. | VAME713030 | [1] | COLLAR COLLAR(3097524600) | COLLAR COLLAR(3097524600) |
| 15. | VAMF129648 | [4] | BOLT BOLT 10X30 | BOLT BOLT 10X30 |
| . . | VAMF450406 | [4] | WASHER | KOBWASHER,SPG 10 |
| 16. | VA3092599200 | [1] | COVER(PARTS EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINE) | |
| 17. | VA3092599300 | [1] | GASKET | KOBGASKET(PARTS EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINE) Superseded by part number: VAME737074 |
| 18. | VAME713196 | [1] | UNIVERSAL JOINT | KOBJOINT(MH038303) |
| 20. | VA3127574400 | [1] | O-RING | KOBO-RING Superseded by part number: VAME093522 |
| 21. | VAMS476136 | [1] | WOODRUFF KEY | KOBKEY,WOODRUFF 5X22 |
| 22. | VAMF300843 | [1] | SCREW | KOBBOLT,W/WSR 10X25 Superseded by part number: 133250A1 |
| 23. | VAMF300859 | [5] | BOLT BOLT,W/WSR 10X90 | BOLT BOLT,W/WSR 10X90 |
| 25. | VAM0001300 | [1] | PLUG | KOBPLUG,DRAIN 16 |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
