久保田零件查询J12500 HYDRAULIC PUMP [COMPONENT PARTS] PUMP/MOTOR SYSTEMEPC Kubota online_久保田Kubota_工程机械

久保田零件查询J12500 HYDRAULIC PUMP [COMPONENT PARTS] PUMP/MOTOR SYSTEMEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 983 次

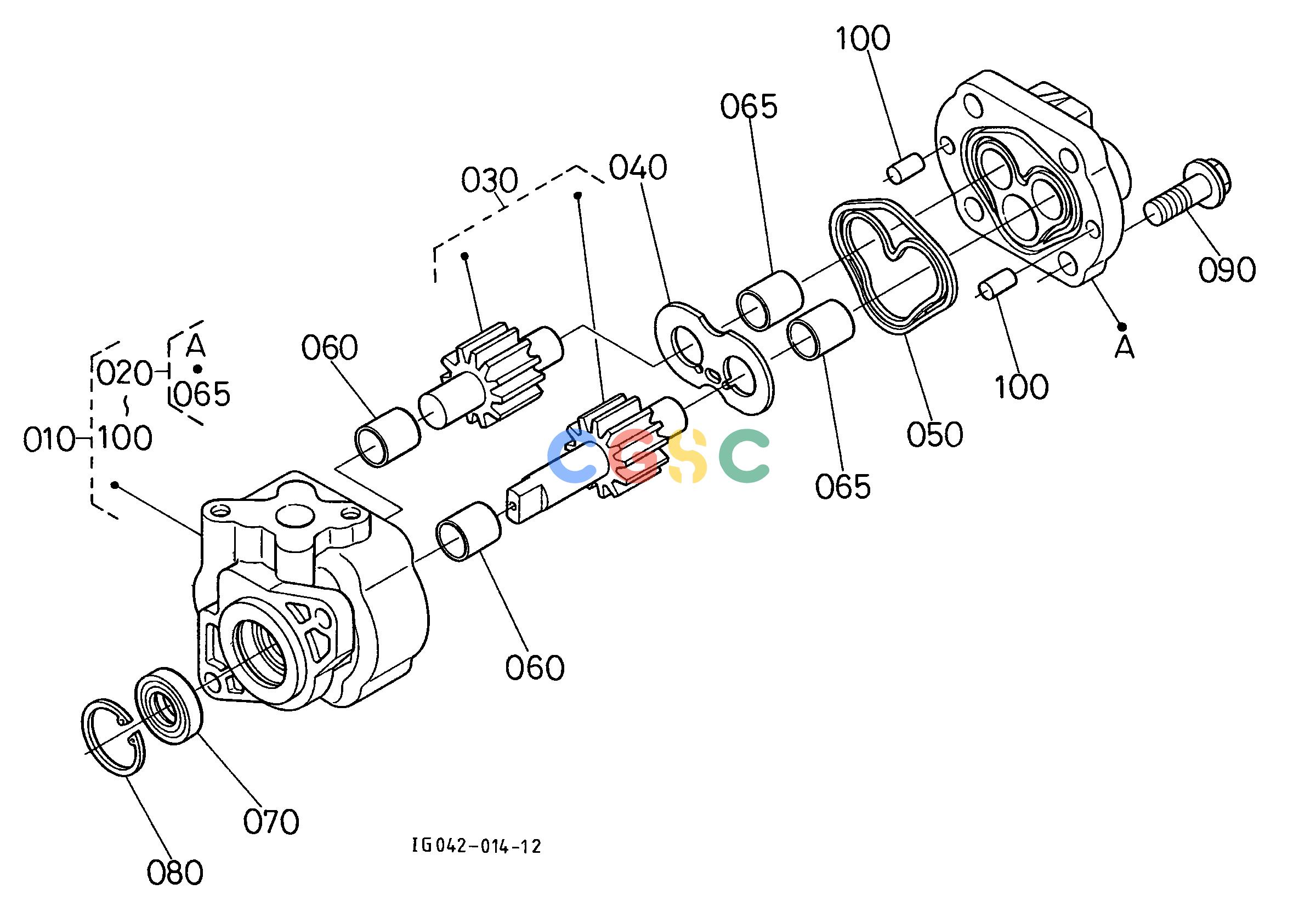

Pos.	Part No	Qty	Parts name	Comments
010.	K351136702	[1]	ASSY PUMP HYDRAULIC	; <=61534 3.2120(lbs); 1.460
010.	K351136706	[1]	ASSY PUMP HYDRAULIC	; =>61535 3.2120(lbs); 1.460
020.	K351136802	[1]	COMP.COVER	0.5940(lbs); 0.270
030.	K351136790	[1]	COMP.GEAR HYD.PUMP	; <=50614 0.8800(lbs); 0.400
030.	K351136792	[1]	COMP.GEAR HYD.PUMP	; =>50615 0.8228(lbs); 0.374
040.	6C04036350	[1]	PLATE SIDE	; <=50715 0.0506(lbs); 0.023
040.	6C04036352	[1]	PLATE SIDE	; =>50716 0.0506(lbs); 0.023
040.	6C14036350	[1]	PLATE SIDE	; =>60001 0.1100(lbs); 0.050
050.	6C04036340	[1]	RING DOUBLE	0.0088(lbs); 0.004
050.	6C04036342	[1]	RING DOUBLE	; <=61534 0.0066(lbs); 0.003
050.	6C04036344	[1]	RING DOUBLE	; =>61535 0.0066(lbs); 0.003
060.	K351136760	[2]	BUSH	; =>50716 0.0220(lbs); 0.010
060.	K351136762	[2]	BUSH	; =>61535 0.0220(lbs); 0.010
065.	K351136760	[2]	BUSH	; <=61534 0.0220(lbs); 0.010
065.	K351136762	[2]	BUSH	; =>61535 0.0220(lbs); 0.010
070.	3138176390	[1]	SEAL OIL	0.0220(lbs); 0.010
080.	0461100300	[1]	CIR CLIP INTERNAL	0.0088(lbs); 0.004
090.	0175451030	[4]	BOLT FLANGE	0.0660(lbs); 0.030
100.	0501200814	[2]	PIN STRAIGHT	; <=6Q9351 0.0132(lbs); 0.006
100.	0501400816	[2]	PIN STRAIGHT	; =>6S0032 0.0110(lbs); 0.005
