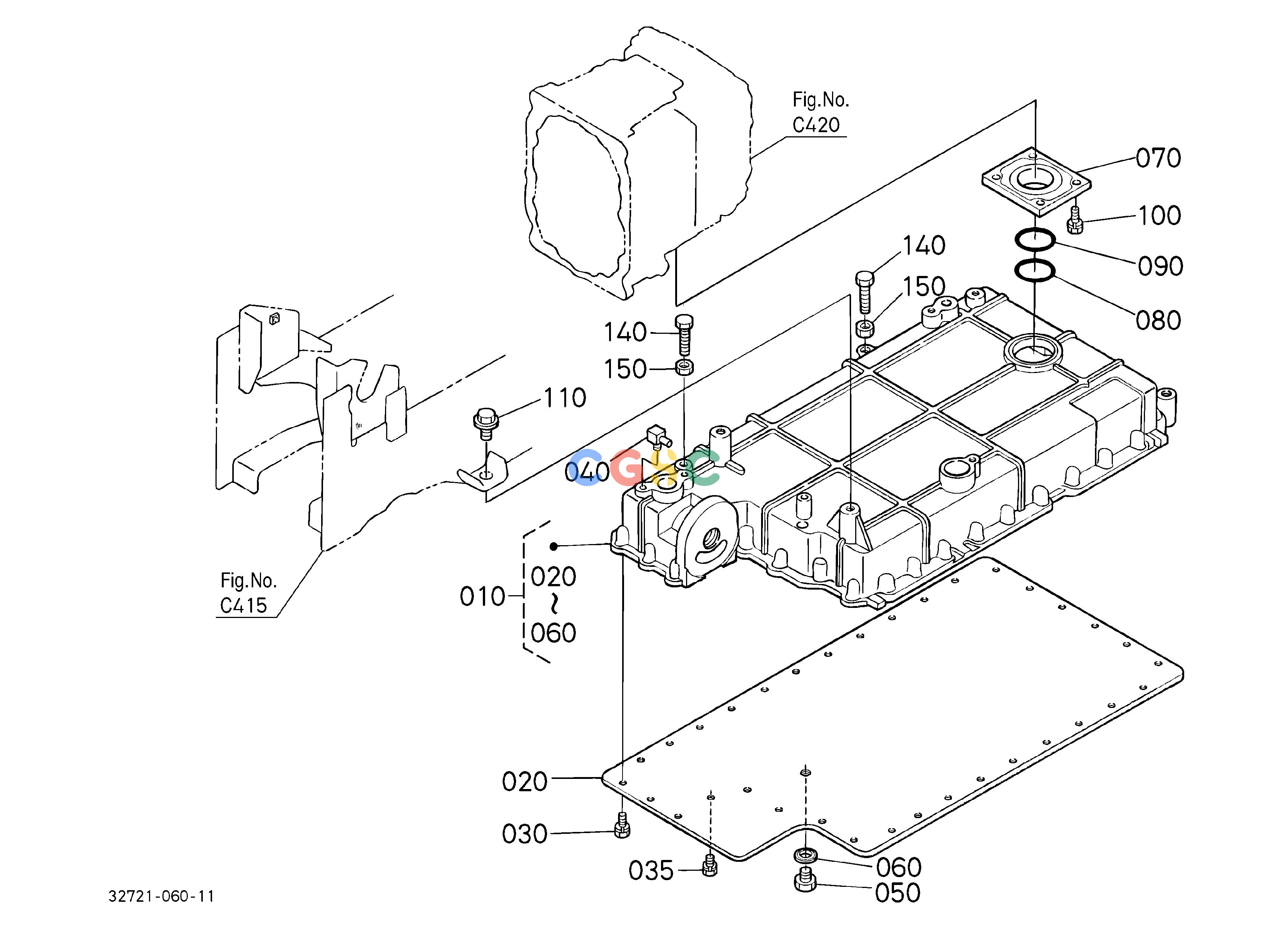

久保田零件查询J15000 OIL TANK PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
227 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272139703
|
[1] |
ASSY TANK OIL
|
32.1200(lbs); 14.600
|
| 020. |
3272139730
|
[1] |
COVER OIL TANK
|
17.6000(lbs); 8.000
|
| 030. |
0112350822
|
[33] |
BOLT
|
0.0264(lbs); 0.012
|
| 035. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 040. |
3407661170
|
[1] |
JOINT
|
0.0550(lbs); 0.025
|
| 050. |
0633145012
|
[1] |
PLUG
|
0.0616(lbs); 0.028
|
| 060. |
0471701200
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 070. |
3272139710
|
[1] |
PLATE OIL TANK
|
0.8360(lbs); 0.380
|
| 080. |
0481100500
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 080. |
0481600500
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 090. |
0481107530
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0112351025
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 110. |
0112551228
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 140. |
0115550830
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 150. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
