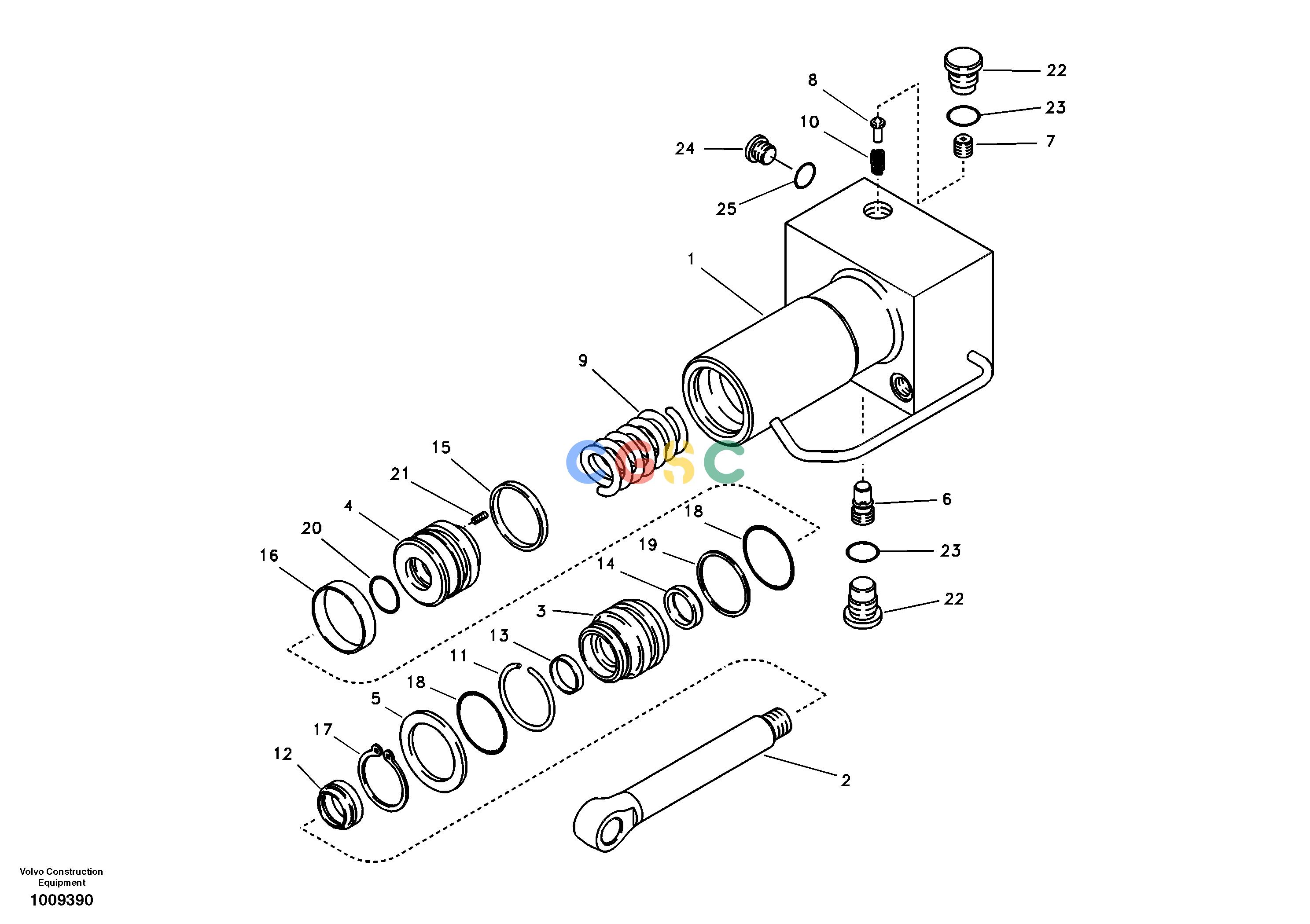

沃尔沃零件查询EC135B Quick fit cylinderSER NO 20001-200798278014-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
839 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14522369
|
[1] |
Cylinder
|
|
| 1. |
VOE14523100
|
[1] |
Tube
|
|
| 2. |
VOE14523101
|
[1] |
Rod
|
|
| 3. |
VOE14523102
|
[1] |
Gland
|
|
| 4. |
VOE14523103
|
[1] |
Piston
|
|
| 5. |
VOE14523104
|
[1] |
Washer
|
|
| 6. |
VOE14523105
|
[1] |
Non-return valve
|
|
| 7. |
VOE14523106
|
[1] |
Seat
|
|
| 8. |
VOE14523107
|
[1] |
Valve guide
|
|
| 9. |
VOE14523108
|
[1] |
Spring
|
|
| 10. |
VOE14523109
|
[1] |
Spring
|
|
| 11. |
VOE14523110
|
[1] |
Ring
|
|
| 12. |
|
[1] |
Seal
|
|
| 13. |
VOE14523112
|
[1] |
Ring
|
|
| 14. |
VOE14523113
|
[1] |
Control plunger
|
|
| 15. |
VOE14523114
|
[1] |
Control plunger
|
|
| 16. |
VOE14523115
|
[1] |
Ring
|
|
| 17. |
VOE914470
|
[1] |
Snap ring
|
|
| 18. |
VOE990585
|
[2] |
O-ring
|
|
| 19. |
SA9566-20450
|
[1] |
Back-up ring
|
|
| 20. |
VOE990581
|
[1] |
O-ring
|
|
| 21. |
SA9023-10602
|
[1] |
Set screw
|
|
| 22. |
VOE14883847
|
[2] |
Plug
|
|
| 23. |
VOE990557
|
[2] |
O-ring
|
|
| 24. |
SA9415-11022
|
[1] |
Plug
|
|
| 25. |
VOE983502
|
[1] |
O-ring
|
|
| 100. |
VOE14523116
|
[1] |
Seal
|
|
