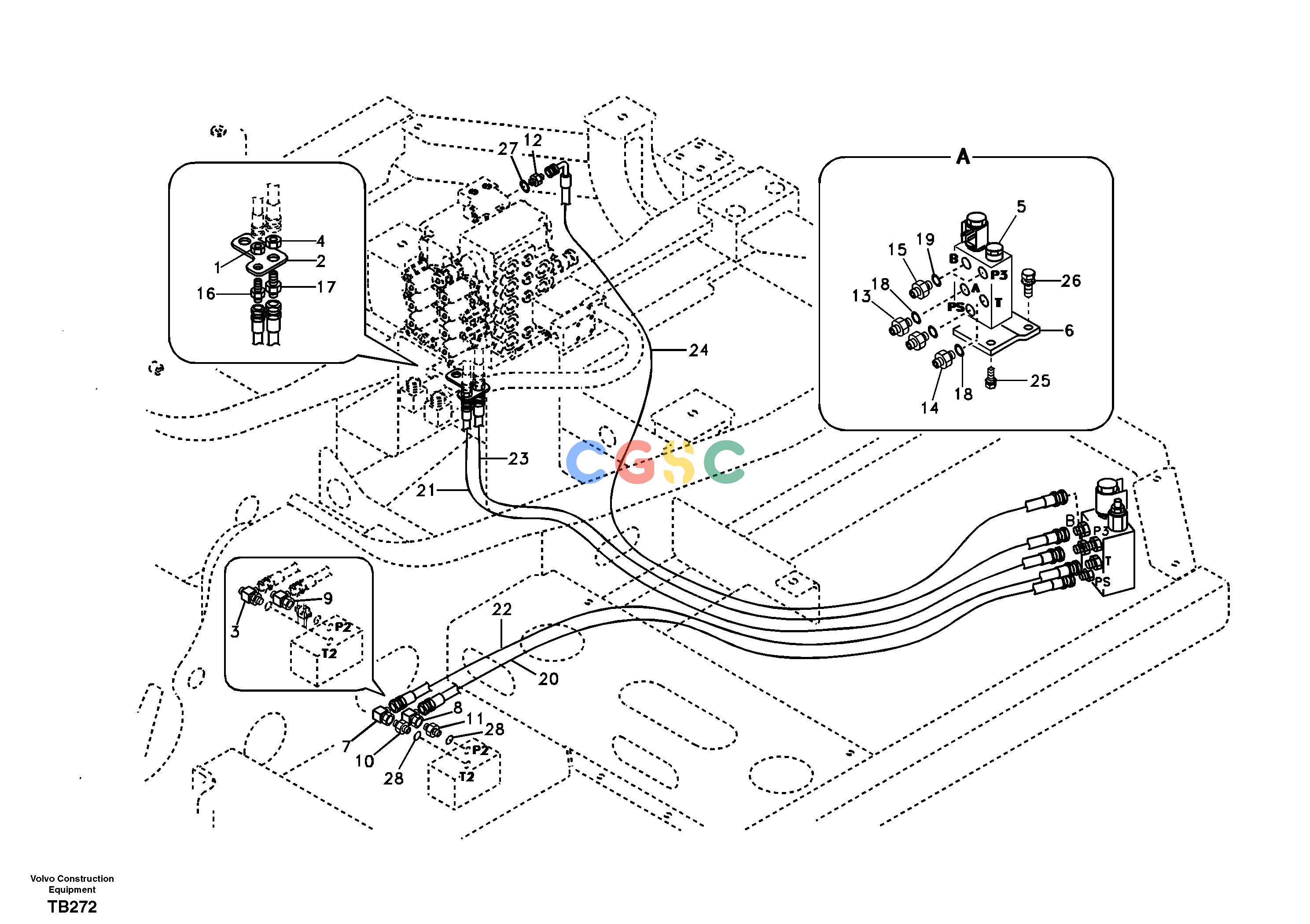

沃尔沃零件查询EC135B Working hydraulic, quick fit on upper frameSER NO 20001-200798277999-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14717620
|
[1] |
Nut
|
|
| 2. |
VOE14531127
|
[1] |
Plate
|
|
| 3. |
VOE14880126
|
[1] |
T-nipple
|
|
| 4. |
SA2043-00120
|
[1] |
Hexagon nut
|
|
| 5. |
VOE14521727
|
[1] |
Valve
|
|
| 6. |
VOE14509484
|
[1] |
Plate
|
|
| 7. |
SA9411-90490
|
[1] |
Elbow
|
|
| 8. |
SA9411-95190
|
[1] |
Elbow
|
|
| 9. |
SA9411-95440
|
[1] |
T-nipple
|
|
| 10. |
SA9412-11030
|
[1] |
Connector
|
|
| 11. |
SA9412-11130
|
[1] |
Connector
|
|
| 12. |
SA9412-11290
|
[1] |
Connector
|
|
| 13. |
SA9412-22020
|
[2] |
Connector
|
|
| 14. |
SA9412-22030
|
[1] |
Connector
|
|
| 15. |
SA9412-22050
|
[2] |
Connector
|
|
| 16. |
SA9416-11091
|
[1] |
Connector
|
|
| 17. |
SA9416-11101
|
[1] |
Connector
|
|
| 18. |
VOE13947621
|
[3] |
Plane gasket
|
|
| 19. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 20. |
SA9451-02232
|
[1] |
Hose assembly
|
|
| 21. |
SA9451-02638
|
[1] |
Hose assembly
|
|
| 22. |
SA9451-03232
|
[1] |
Hose assembly
|
|
| 23. |
SA9451-03638
|
[1] |
Hose assembly
|
|
| 24. |
SA9453-03640
|
[1] |
Hose assembly
|
|
| 25. |
VOE946173
|
[2] |
Flange screw
|
|
| 26. |
VOE946441
|
[2] |
Flange screw
|
|
| 27. |
VOE983502
|
[1] |
O-ring
|
|
| 28. |
VOE983505
|
[2] |
O-ring
|
|
