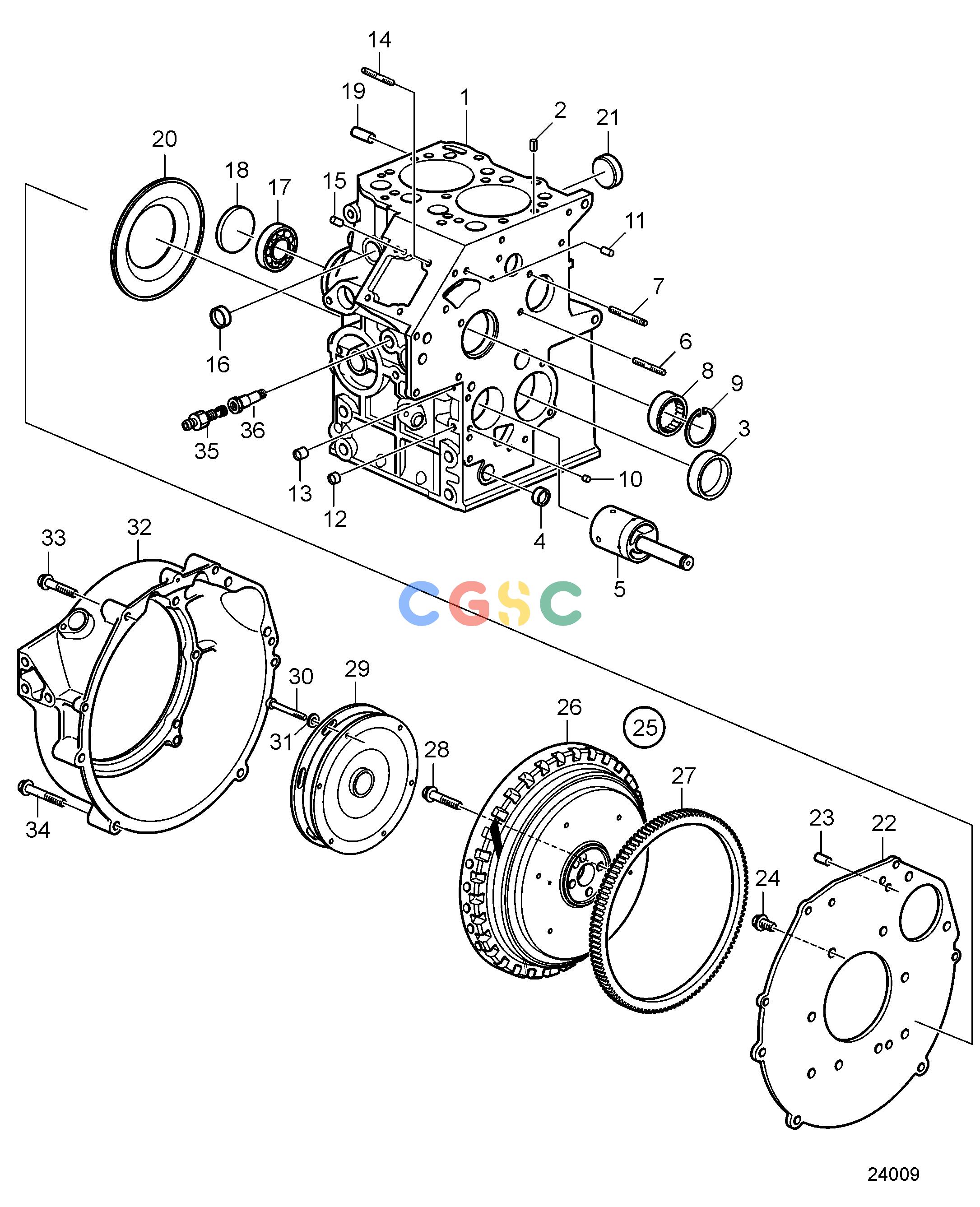

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FEngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
861818
|
[2] |
Spring pin
|
|
| 3. |
21185006
|
[1] |
Bushing
|
(3809705)
|
| 4. |
3886427
|
[1] |
Expansion plug
|
|
| 5. |
861807
|
[1] |
Shaft
|
Replaced by 21541017
|
| 5. |
21541017
|
[1] |
Oil pump
|
|
| 6. |
3583709
|
[1] |
Stud
|
|
| 7. |
861820
|
[1] |
Stud
|
|
| 8. |
861814
|
[1] |
Bearing
|
|
| 9. |
3580226
|
[1] |
Lock ring
|
|
| 10. |
861805
|
[1] |
Plug
|
|
| 11. |
|
|
|
|
| 12. |
3807215
|
[1] |
Plug
|
|
| 13. |
861806
|
[4] |
Plug
|
|
| 14. |
3812420
|
[2] |
Stud
|
|
| 15. |
|
|
|
|
| 16. |
3886428
|
[1] |
Expansion plug
|
|
| 17. |
861812
|
[1] |
Bearing
|
|
| 18. |
861813
|
[1] |
Expansion plug
|
|
| 19. |
|
|
|
|
| 20. |
861823
|
[1] |
Sealing ring
|
|
| 21. |
3886429
|
[3] |
Plug blank
|
|
| 22. |
3818597
|
[1] |
Rear plate
|
|
| 23. |
|
|
|
|
| 24. |
946440
|
[10] |
Flange screw
|
|
| 25. |
3840880
|
[1] |
Flywheel
|
Complete
|
| 26. |
|
|
|
|
| 27. |
861973
|
[1] |
Gear ring
|
|
| 28. |
861974
|
[4] |
Screw
|
|
| 29. |
3840422
|
[1] |
Flexible coupling
|
|
| 30. |
959211
|
[6] |
Hex. socket screw
|
|
| 31. |
955892
|
[6] |
Washer
|
|
| 32. |
3818550
|
[1] |
Flywheel housing
|
|
| 33. |
946671
|
[1] |
Flange screw
|
|
| 34. |
965216
|
[5] |
Flange screw
|
|
| 35. |
3583822
|
[1] |
Draining nipple
|
|
| 36. |
3886423
|
[1] |
Adapter
|
|
