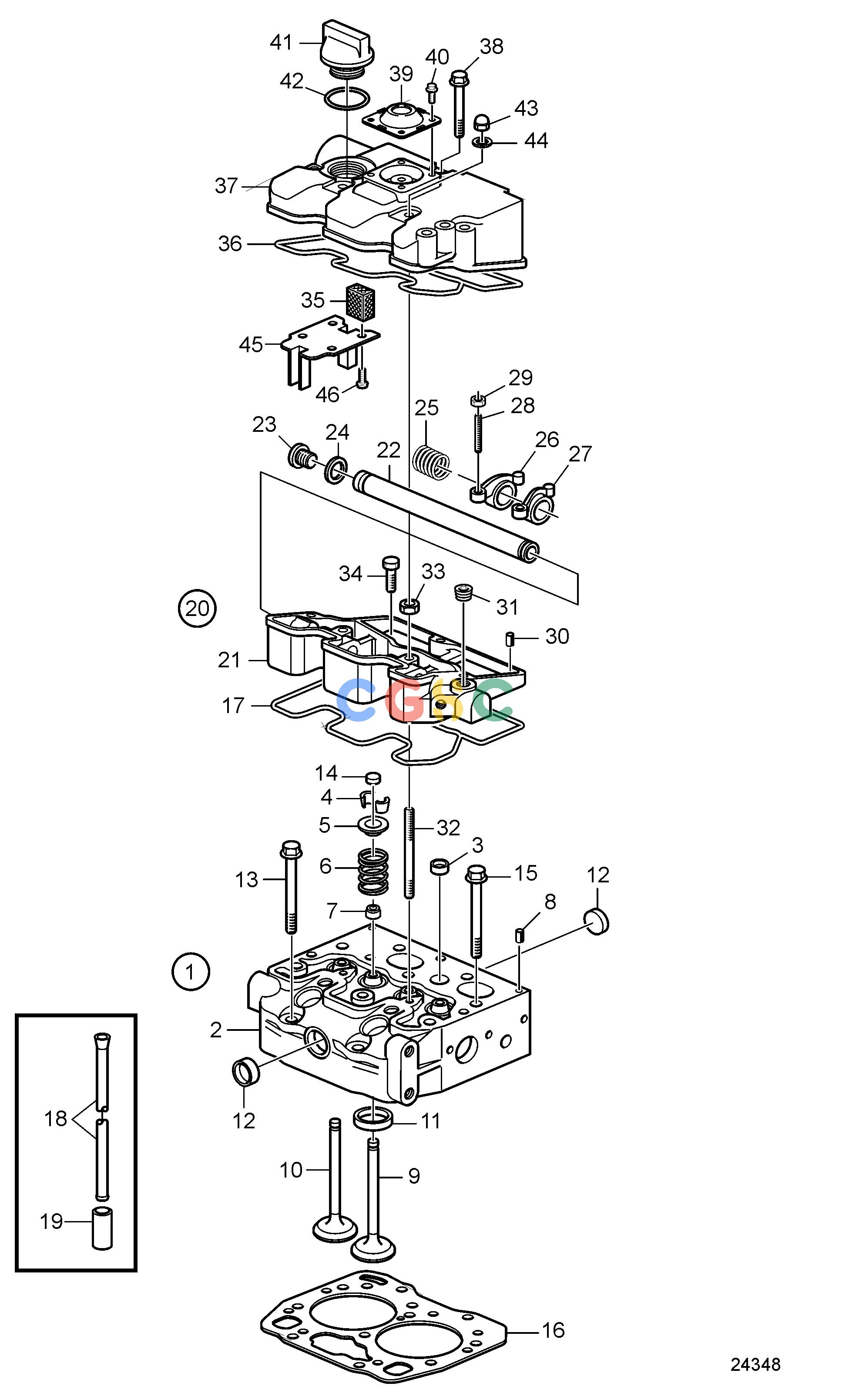

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803891
|
[1] |
Cylinder head
|
|
| 2. |
|
|
|
|
| 2. |
3803891
|
[1] |
Cylinder head
|
|
| 3. |
3886428
|
[1] |
Expansion plug
|
|
| 4. |
861863
|
[8] |
Valve cone
|
|
| 5. |
861862
|
[4] |
Valve spring washer
|
|
| 6. |
861861
|
[4] |
Valve spring
|
|
| 7. |
861860
|
[4] |
Valve stem seal
|
|
| 8. |
3580024
|
[2] |
Clamping pin
|
|
| 9. |
3809662
|
[2] |
Inlet valve
|
|
| 10. |
861859
|
[2] |
Exhaust valve
|
|
| 11. |
3886394
|
[4] |
Valve seat ring
|
|
| 12. |
3886430
|
[4] |
Expansion plug
|
|
| 13. |
861867
|
[2] |
Screw
|
|
| 14. |
3581293
|
[4] |
Valve cap
|
|
| 15. |
861866
|
[8] |
Screw
|
|
| 16. |
3808602
|
[1] |
Cylinder head gasket
|
T=1.2mm
|
| 16. |
3809647
|
[1] |
Cylinder head gasket
|
TH=1.3mm
|
| 17. |
3809656
|
[1] |
Gasket
|
|
| 18. |
3809670
|
[4] |
Push rod
|
|
| 19. |
861827
|
[4] |
Tappet
|
|
| 20. |
|
|
|
|
| 21. |
3809636
|
[1] |
Bracket
|
|
| 22. |
3809635
|
[1] |
Rocker arm shaft
|
|
| 23. |
3812105
|
[1] |
Plug
|
|
| 24. |
861851
|
[1] |
O-ring
|
|
| 25. |
3809640
|
[1] |
Spring
|
|
| 26. |
3809639
|
[2] |
Rocker arm
|
|
| 27. |
3809638
|
[2] |
Rocker arm
|
|
| 28. |
861877
|
[4] |
Screw
|
|
| 29. |
861878
|
[4] |
Nut
|
|
| 30. |
3886069
|
[2] |
Pin
|
|
| 31. |
3809690
|
[1] |
Plug
|
|
| 32. |
3809663
|
[2] |
Stud
|
|
| 33. |
945407
|
[2] |
Flange nut
|
|
| 34. |
3840802
|
[1] |
Screw
|
|
| 35. |
3580320
|
[1] |
Filter
|
|
| 36. |
3809657
|
[1] |
Gasket
|
|
| 37. |
3808793
|
[1] |
Valve cover
|
|
| 38. |
3809669
|
[3] |
Screw
|
|
| 39. |
3809668
|
[1] |
Valve
|
|
| 40. |
3583659
|
[4] |
Screw
|
|
| 41. |
3809653
|
[1] |
Oil filler cap
|
|
| 42. |
3886406
|
[1] |
Seal
|
|
| 43. |
21246490
|
[2] |
Cap nut
|
|
| 44. |
3840804
|
[2] |
Washer
|
|
| 45. |
3887185
|
[1] |
Support plate
|
|
| 46. |
3583663
|
[1] |
Screw
|
|
