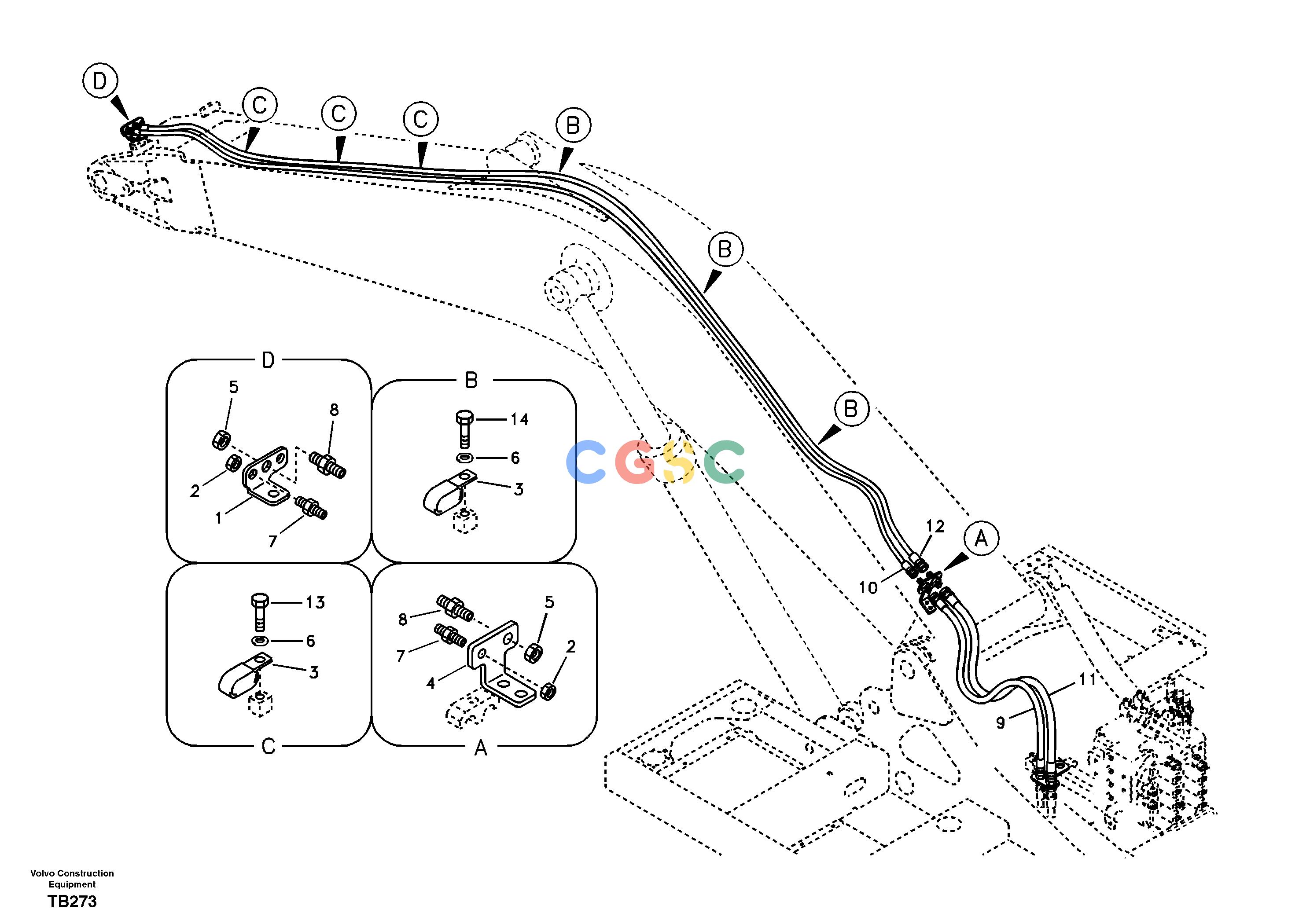

沃尔沃零件查询EC135B Working hydraulic, quick fit on boomSER NO 20001-200798278000-8279047NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
759 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14535218
|
[1] |
Plate
|
|
| 2. |
VOE14717620
|
[2] |
Nut
|
|
| 3. |
VOE14515524
|
[6] |
Clip
|
|
| 4. |
VOE14511253
|
[1] |
Plate
|
|
| 5. |
SA2043-00120
|
[2] |
Hexagon nut
|
|
| 6. |
VOE992040
|
[6] |
Plain washer
|
|
| 7. |
SA9416-11091
|
[2] |
Connector
|
|
| 8. |
SA9416-11101
|
[2] |
Connector
|
|
| 9. |
SA9451-02627
|
[1] |
Hose assembly
|
|
| 10. |
SA9451-02693
|
[1] |
Hose assembly
|
|
| 11. |
SA9451-03627
|
[1] |
Hose assembly
|
|
| 12. |
SA9451-03693
|
[1] |
Hose assembly
|
|
| 13. |
VOE997434
|
[3] |
Hexagon screw
|
|
| 14. |
VOE983252
|
[3] |
Hexagon screw
|
|
