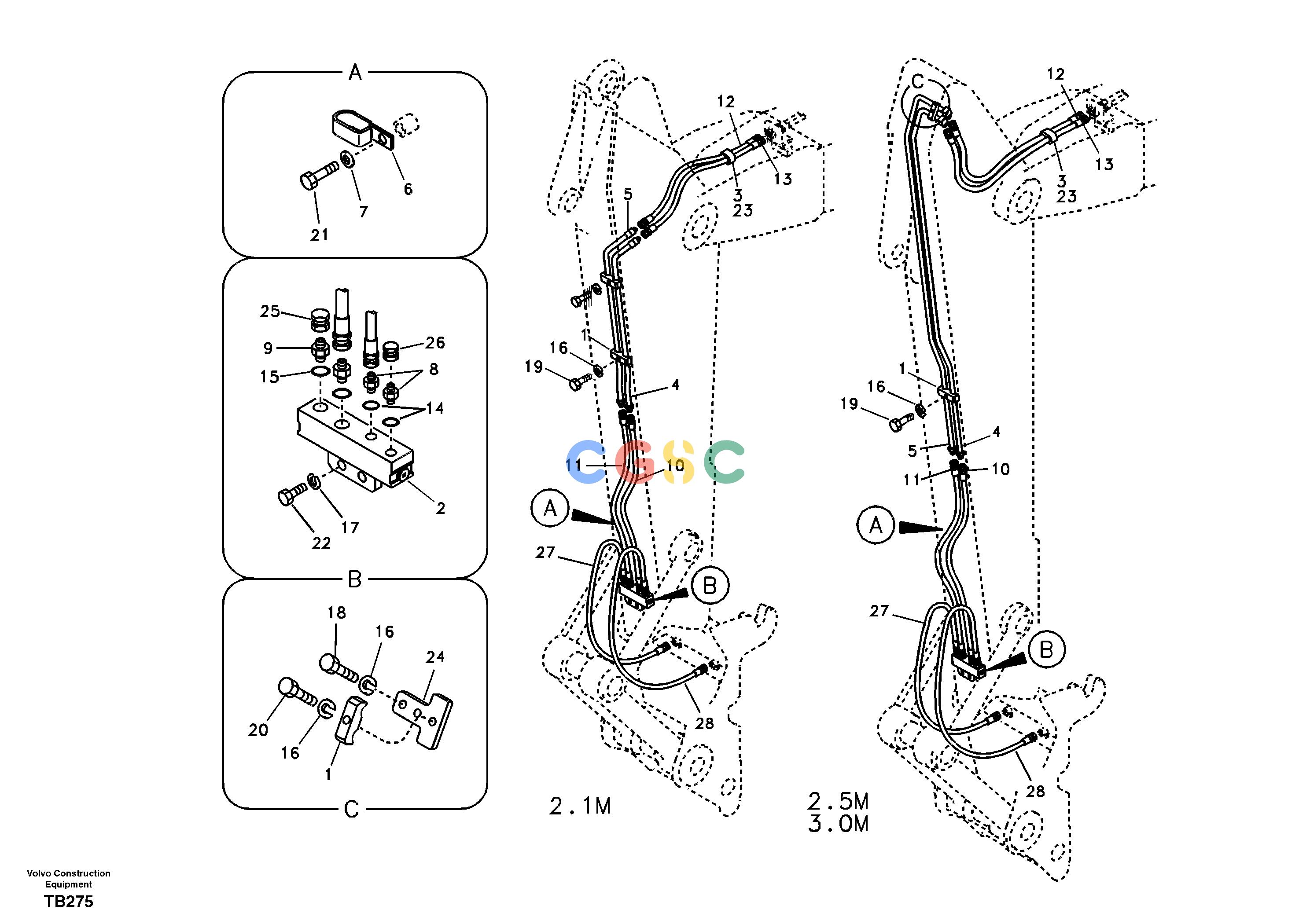

沃尔沃零件查询EC135B Working hydraulic, quick fit on dipper armSER NO 20001-200798278002-8278003NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
454 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1174-53360
|
[2] |
Clamp
|
|
| 2. |
VOE14508440
|
[1] |
Block
|
|
| 3. |
SA1174-58220
|
[1] |
Rubber clamp
|
|
| 4. |
SA1174-55431
|
[1] |
Pipe
|
|
| |
VOE14500665
|
|
Pipe
|
|
| |
VOE14503243
|
|
Pipe
|
|
| 5. |
SA1174-55441
|
[1] |
Pipe
|
|
| |
VOE14500666
|
|
Pipe
|
|
| |
VOE14514490
|
|
Pipe
|
|
| 6. |
VOE14515524
|
[1] |
Clip
|
|
| 7. |
VOE992040
|
[1] |
Plain washer
|
|
| 8. |
SA9412-11020
|
[2] |
Nipple
|
|
| 9. |
SA9412-11030
|
[2] |
Connector
|
|
| 10. |
SA9451-02614
|
[1] |
Hose assembly
|
|
| |
SA9451-02620
|
|
Hose assembly
|
|
| 11. |
SA9451-03614
|
[1] |
Hose assembly
|
|
| |
SA9451-03620
|
|
Hose assembly
|
|
| 12. |
SA9459-05590
|
[1] |
Hose
|
|
| |
SA9459-05170
|
|
Hose
|
|
| |
SA9459-05600
|
|
Hose
|
|
| 13. |
SA9459-05630
|
[1] |
Hose
|
|
| |
SA9459-05150
|
|
Hose
|
|
| |
SA9459-05640
|
|
Hose
|
|
| 14. |
VOE983502
|
[2] |
O-ring
|
|
| 15. |
VOE983505
|
[2] |
O-ring
|
|
| 16. |
VOE955921
|
[2] |
Spring washer
|
|
| 17. |
VOE955922
|
[2] |
Spring washer
|
|
| 18. |
VOE984064
|
|
Hex. socket screw
|
|
| 19. |
VOE983243
|
[2] |
Hexagon screw
|
|
| 20. |
VOE983245
|
|
Hexagon screw
|
|
| 21. |
VOE997434
|
[1] |
Hexagon screw
|
|
| 22. |
VOE983251
|
[2] |
Hexagon screw
|
|
| 23. |
SA9314-02300
|
[2] |
Cable tie
|
|
| 24. |
VOE14542036
|
|
Plate
|
|
| 25. |
SA9411-90410
|
[1] |
Plug
|
|
| 26. |
SA9411-93390
|
[1] |
Plug
|
|
| 27. |
VOE14880136
|
|
Hose assembly
|
|
| 28. |
SA9459-05640
|
|
Hose
|
|
