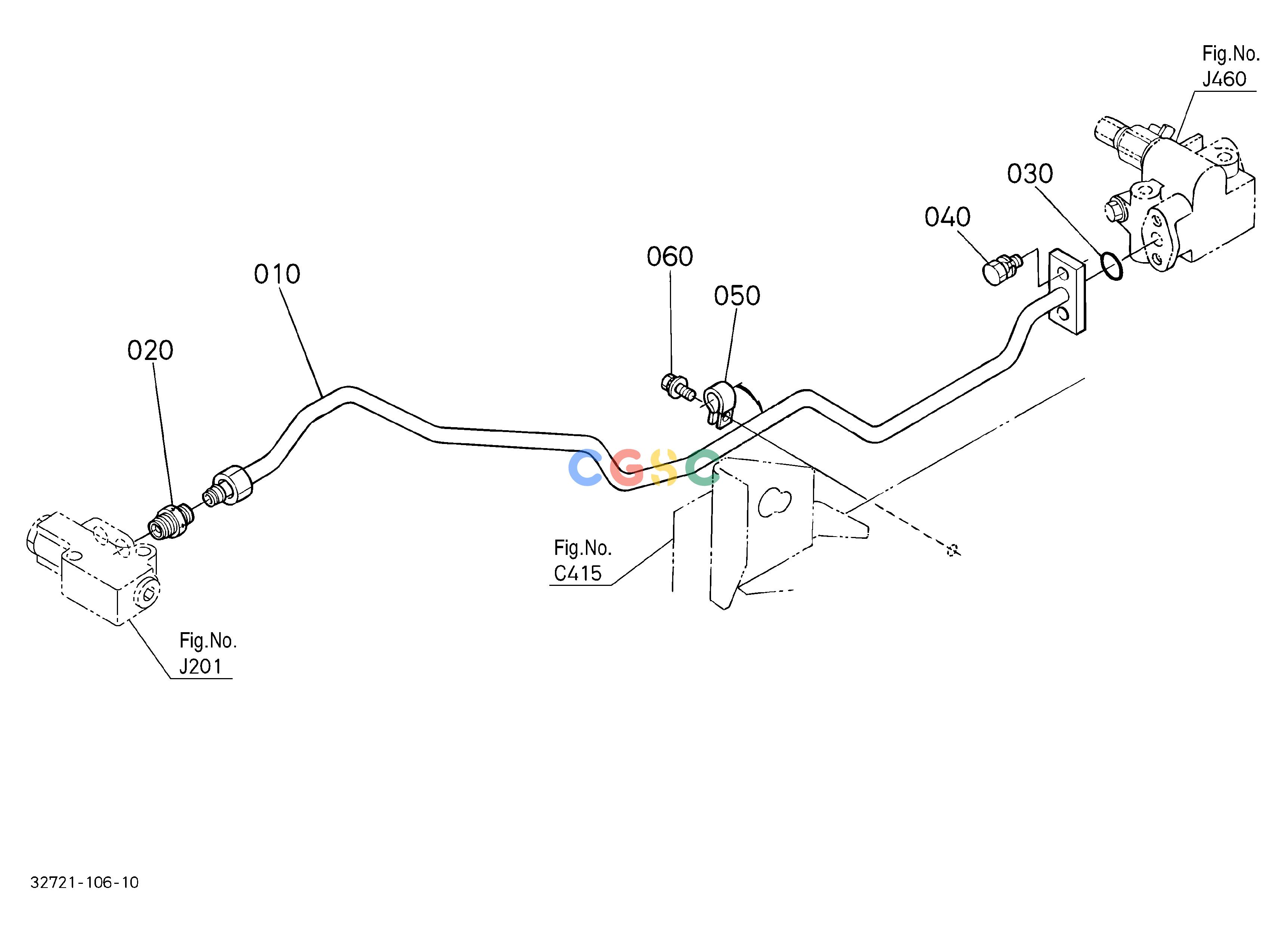

久保田零件查询J21000 HYDRAULIC OIL LINE(DELIVERY) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272139214
|
[1] |
PIPE
|
0.9900(lbs); 0.450
|
| 010. |
H327039200
|
[1] |
PIPE
|
0.9900(lbs); 0.450
|
| 010. |
3272139215
|
[1] |
PIPE
|
0.9944(lbs); 0.452
|
| 020. |
3272139280
|
[1] |
JOINT PIPE
|
0.0726(lbs); 0.033
|
| 020. |
3272139282
|
[1] |
JOINT PIPE
|
0.0726(lbs); 0.033
|
| 030. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 060. |
0112560816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
