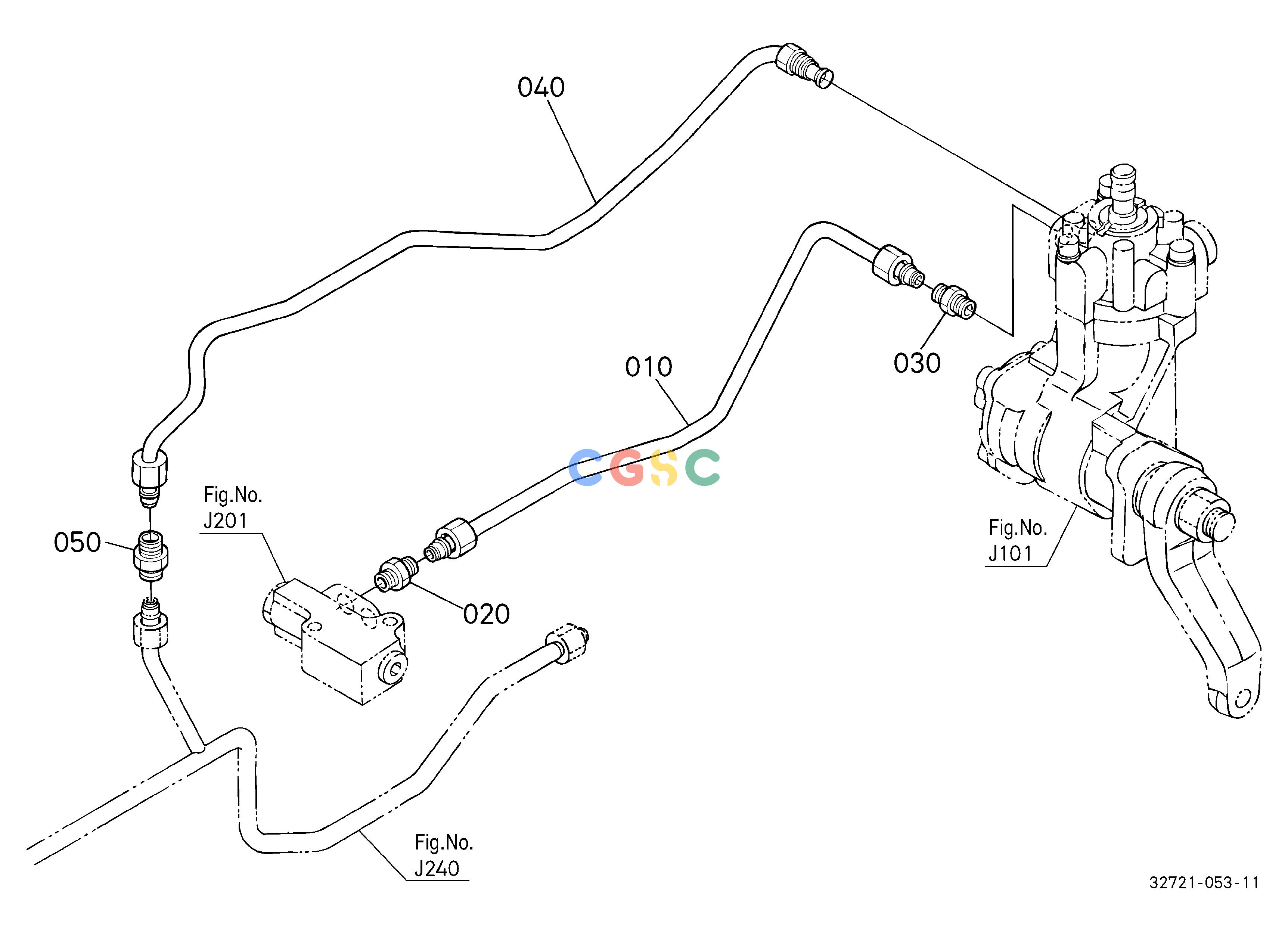

久保田零件查询J21500 HYDRAULIC OIL LINE(STEERING) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
735 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272139223
|
[1] |
PIPE DELIVERY
|
0.3960(lbs); 0.180
|
| 010. |
H327139200
|
[1] |
PIPE DELIVERY
|
0.3960(lbs); 0.180
|
| 010. |
3272139224
|
[1] |
PIPE DELIVERY
|
0.3916(lbs); 0.178
|
| 020. |
6C04239400
|
[1] |
ASSY JOINT PIPE
|
0.0770(lbs); 0.035
|
| 020. |
6C04239402
|
[1] |
ASSY JOINT PIPE
|
0.0770(lbs); 0.035
|
| 030. |
6C04239430
|
[1] |
JOINT PIPE
|
0.0880(lbs); 0.040
|
| 030. |
6C04239432
|
[1] |
JOINT PIPE
|
0.0726(lbs); 0.033
|
| 040. |
3272139310
|
[1] |
PIPE
|
0.4400(lbs); 0.200
|
| 040. |
3272139314
|
[1] |
PIPE
|
0.4312(lbs); 0.196
|
| 040. |
3272139315
|
[1] |
PIPE
|
0.4400(lbs); 0.200
|
| 050. |
3258338980
|
[1] |
JOINT PIPE
|
0.0000(lbs); 0.000
|
| 050. |
0601351002
|
[1] |
JOINT PIPE
|
0.0660(lbs); 0.030
|
| 050. |
0601351003
|
[1] |
JOINT PIPE
|
0.0616(lbs); 0.028
|
