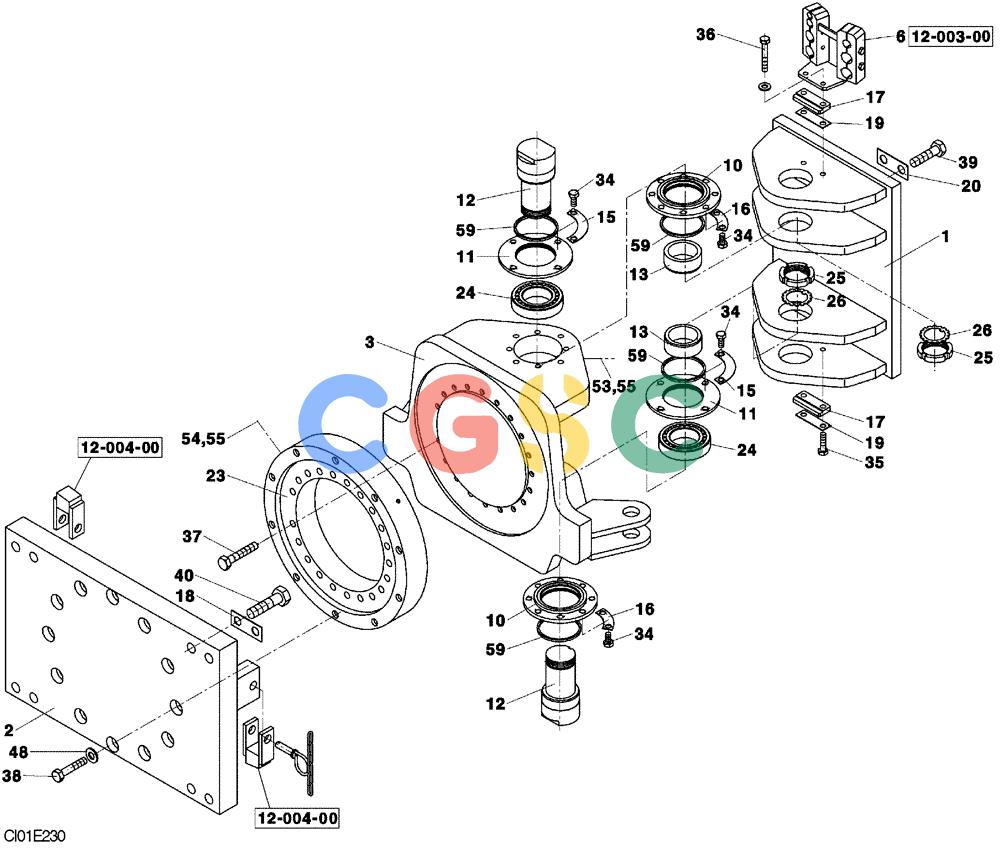

纽荷兰零件查询(CV700) - VIBRATORY ROLLER (9/01-) (12-002-00[01]) - LINKAGE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
660 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104234 | [1] | SUPPORT | STA |
| 2. | ND104284 | [1] | SUPPORT | STA |
| 3. | ND104236 | [1] | HUB | STA |
| 6. | ND104330 | [1] | SUPPORT | STA |
| 10. | ND104325 | [2] | FLANGE | STA |
| 11. | ND104324 | [2] | COVER | STA |
| 12. | ND104323 | [2] | SHOULDERED SHAFT | STA |
| 13. | ND104382 | [2] | SPACER | STA |
| 15. | ND104380 | [4] | PLATE | STA |
| 16. | ND104381 | [6] | PLATE | STA |
| 17. | ND104379 | [2] | COVER PLATE | STA Superseded by part number: ND052231 |
| 18. | ND104388 | [4] | WASHER | STA |
| 19. | ND052247 | [2] | COVER PLATE | STA |
| 20. | ND104383 | [6] | WASHER | STA |
| 23. | ND068785 | [1] | BEARING | STA |
| 24. | ND068995 | [2] | BALL BEARING | STA |
| 25. | ND069114 | [2] | NUT | STA |
| 26. | ND069132 | [2] | COVER PLATE | STAMB 11 |
| 34. | ND021309 | [24] | BOLT | STAM12 x 25 |
| 35. | ND021310 | [2] | BOLT | STAM12 x 30 |
| 36. | ND021312 | [2] | BOLT | STAM12 x 40 |
| 37. | ND101195 | [16] | BOLT | STAM12 x 50 |
| 38. | ND101196 | [19] | SCREW | STAM12 x 70 |
| 39. | ND021332 | [12] | BOLT | STAM16 x 45 |
| 40. | ND021244 | [8] | BOLT | STAM20 x 75 |
| 47. | ND029267 | [13] | WASHER | STA |
| 53. | ND070130 | [2] | LUBE NIPPLE | STA |
| 54. | ND070133 | [4] | LUBE NIPPLE,M10 x 1 | STA |
| 55. | ND064758 | [6] | PLUG | STA |
| 59. | ND079311 | [4] | RING | STA |
