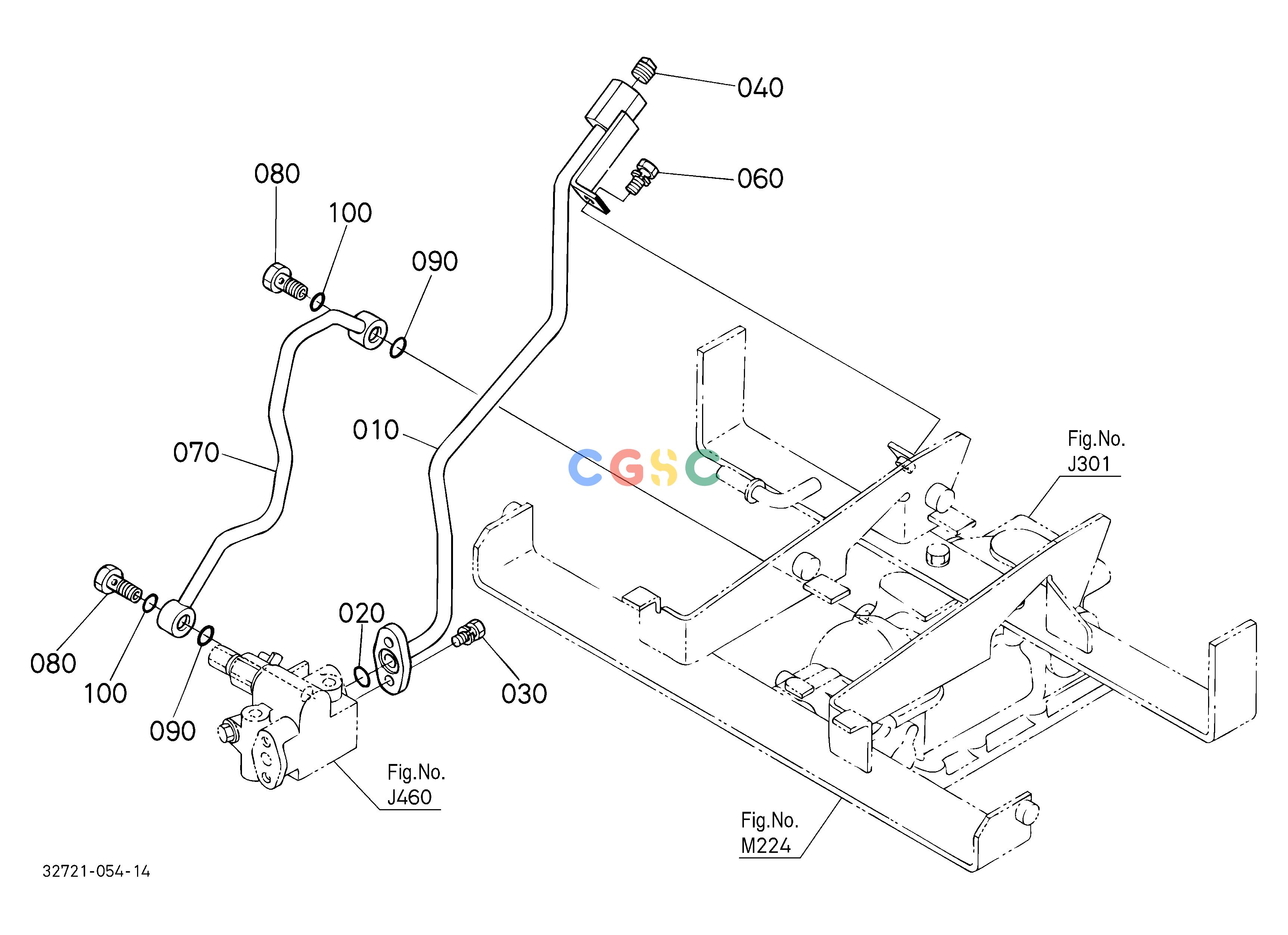

久保田零件查询J21600 HYDRAULIC OIL LINE(BACKHOE) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
478 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272139230
|
[1] |
PIPE
|
1.1220(lbs); 0.510
|
| 020. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 040. |
3272139250
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 040. |
3272139252
|
[1] |
PLUG
|
0.0550(lbs); 0.025
|
| 060. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 070. |
3272139240
|
[1] |
PIPE
|
0.4400(lbs); 0.200
|
| 080. |
6C04039290
|
[2] |
BOLT JOINT
|
0.0990(lbs); 0.045
|
| 090. |
0481000160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0481700160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0481006120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0481706120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
