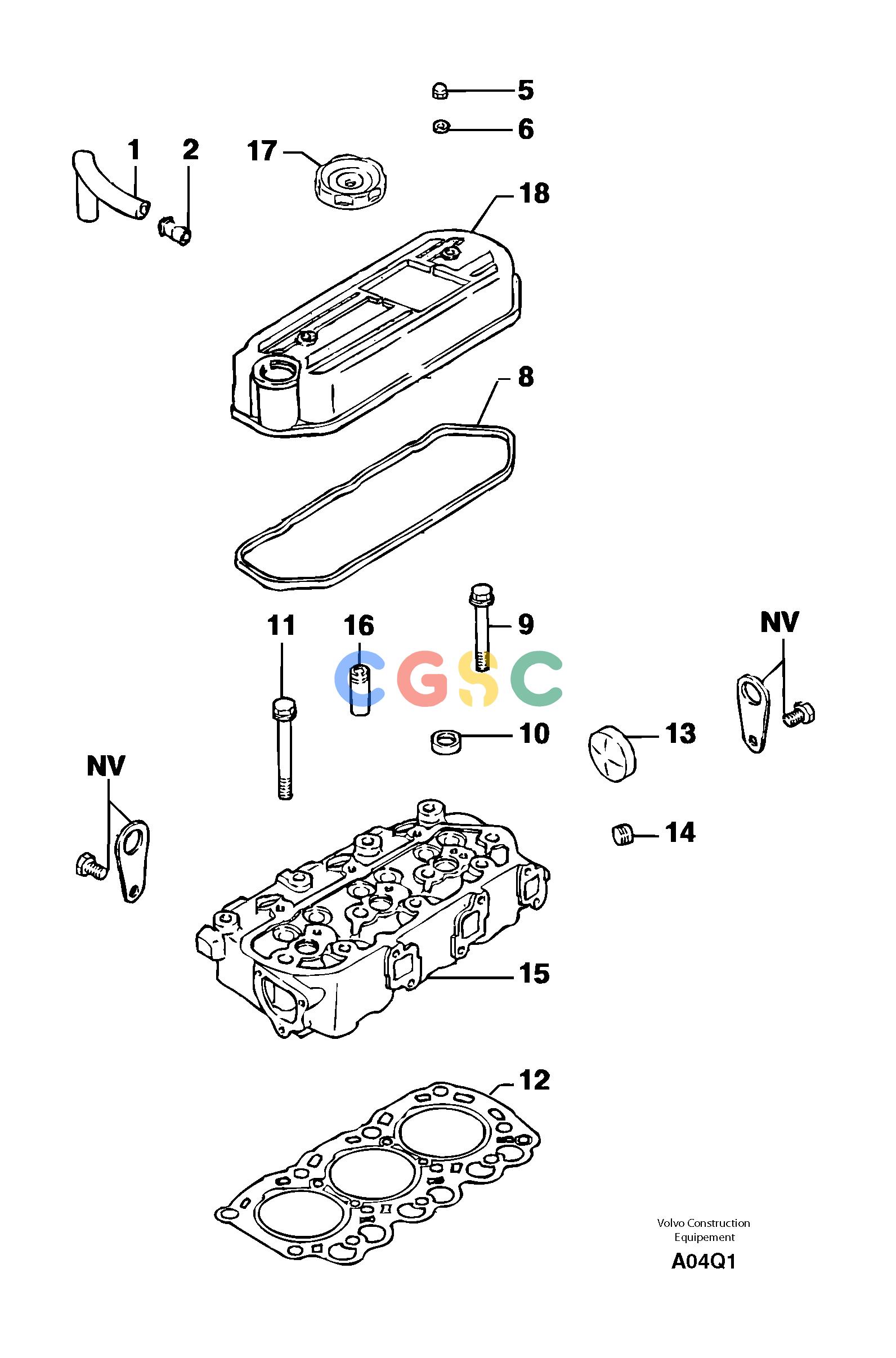

沃尔沃零件查询EC14 Cylinder headTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7410665
|
[1] |
Tube
|
|
| 2. |
VOE15043675
|
[1] |
Pipe
|
|
| 5. |
PJ7410599
|
[2] |
Nut
|
|
| 6. |
PJ7410123
|
[2] |
Washer
|
|
| 8. |
PJ7412914
|
[1] |
Seal
|
|
| 9. |
PJ7410587
|
[3] |
Bolt
|
|
| 10. |
PJ7410609
|
[3] |
Seal
|
INCL IN 15
|
| 11. |
PJ7410619
|
[8] |
Bolt
|
|
| 12. |
PJ7415738
|
[1] |
Cyl Head Gasket
|
|
| 13. |
PJ7410577
|
[1] |
Plug
|
INCL IN 15
|
| 14. |
PJ7410691
|
[1] |
Plug
|
|
| 15. |
PJ7415180
|
[1] |
Cylinder head
|
|
| 16. |
PJ7410611
|
[6] |
Giude
|
|
| 17. |
VOE11712227
|
[1] |
Cap
|
|
| 18. |
PJ7414919
|
[1] |
Cover
|
|
