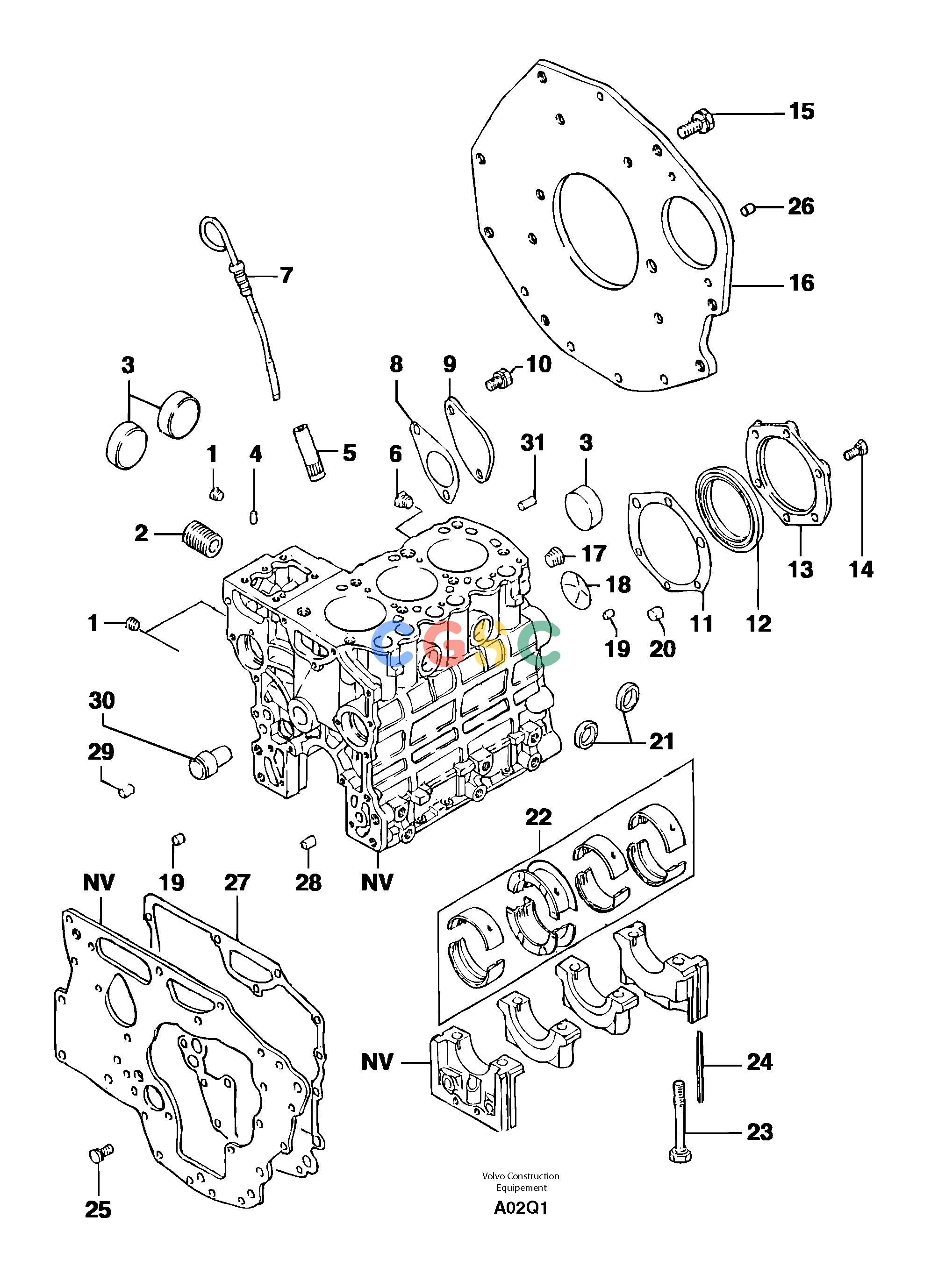

沃尔沃零件查询EC14 Cylinder blockTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7410584
|
[3] |
Plug
|
|
| 2. |
PJ7410576
|
[1] |
Stub Axle
|
|
| 3. |
PJ7410577
|
[3] |
Plug
|
|
| 4. |
PJ7410287
|
[2] |
Centraliser
|
|
| 5. |
PJ7410315
|
[1] |
Giude
|
|
| 6. |
PJ7410039
|
[1] |
Plug
|
|
| 7. |
PJ7410648
|
[1] |
Dipstick
|
|
| 8. |
PJ7410640
|
[1] |
Seal
|
|
| 9. |
PJ7410639
|
[1] |
Plate
|
|
| 10. |
PJ7410097
|
[2] |
Screw
|
|
| 11. |
PJ7410626
|
[1] |
Seal
|
|
| 12. |
PJ7410585
|
[1] |
Seal
|
|
| 13. |
PJ7410615
|
[1] |
Flange
|
|
| 14. |
PJ7410591
|
[6] |
Screw
|
|
| 15. |
PJ7410108
|
[6] |
Screw
|
|
| 16. |
PJ7410672
|
[1] |
Plate
|
|
| 17. |
PJ7410692
|
[1] |
Plug
|
|
| 18. |
PJ7410608
|
[1] |
Plug
|
|
| 19. |
PJ7410688
|
[2] |
Bushing
|
|
| 20. |
PJ7410690
|
[3] |
Bushing
|
|
| 21. |
PJ7410144
|
[2] |
Plug
|
|
| 22. |
PJ7413155
|
[1] |
Bearings (kit)
|
STD SZ
|
| 22. |
PJ7413156
|
[1] |
Bearings (kit)
|
0,25mm/0.0098in
|
| 22. |
PJ7413157
|
[1] |
Bearings (kit)
|
0,50mm/0.0197in
|
| 23. |
PJ7410583
|
[8] |
Bolt
|
|
| 24. |
PJ7410625
|
[4] |
Seal
|
|
| 25. |
PJ7410101
|
[7] |
Screw
|
|
| 26. |
PJ7412990
|
[1] |
Centraliser
|
|
| 27. |
PJ7418432
|
[1] |
Seal
|
|
| 28. |
PJ7410689
|
[1] |
Bushing
|
|
| 29. |
PJ7410404
|
[2] |
Bushing
|
|
| 30. |
PJ7415739
|
[1] |
Shaft
|
|
| 31. |
PJ7410129
|
[1] |
Centraliser
|
|
