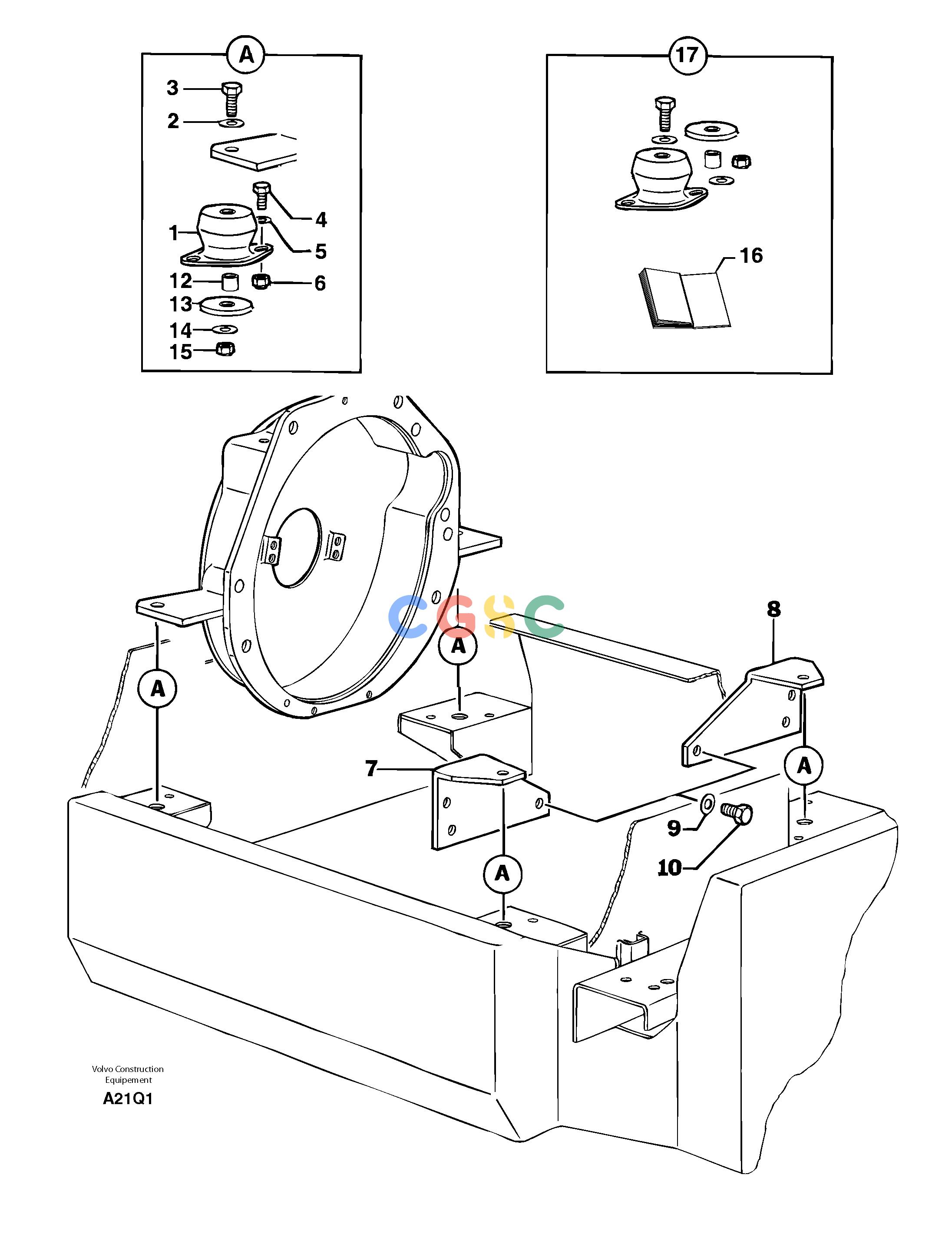

沃尔沃零件查询EC14 Engine mountsTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ5140282
|
[4] |
Suspension
|
INCL IN 17
|
| 2. |
VOE11804249
|
[4] |
Washer
|
INCL IN 17, M12
|
| 3. |
PJ4380369
|
[4] |
Screw
|
INCL IN 17, HM12X80
|
| 4. |
PJ4380043
|
[8] |
Screw
|
HM8X20
|
| 5. |
VOE13955894
|
[8] |
Washer
|
MU8
|
| 6. |
VOE948645
|
[8] |
Flange lock nut
|
NYLSTOP M8
|
| 7. |
PJ3560338
|
[1] |
Support
|
|
| 8. |
VOE11805228
|
[1] |
Support
|
|
| 9. |
VOE11807554
|
[6] |
Washer
|
M10
|
| 10. |
VOE11806193
|
[6] |
Hexagon screw
|
HM10X25
|
| 11. |
VOE11806131
|
[REQ] |
Washer
|
PJ 4460043
|
| 12. |
PJ3920080
|
[4] |
Spacer
|
INCL IN 17
|
| 13. |
VOE11805789
|
[4] |
Washer
|
INCL IN 17
|
| 14. |
VOE983336
|
[4] |
Plain washer
|
INCL IN 17, MU12
|
| 15. |
VOE11804239
|
[4] |
Nut
|
INCL IN 17
|
| 16. |
PJ5400616
|
[1] |
Instal. instruction
|
INCL IN 17
|
| 17. |
PJ6532088
|
[1] |
Repair Kit
|
S/N - 271.15889
|
