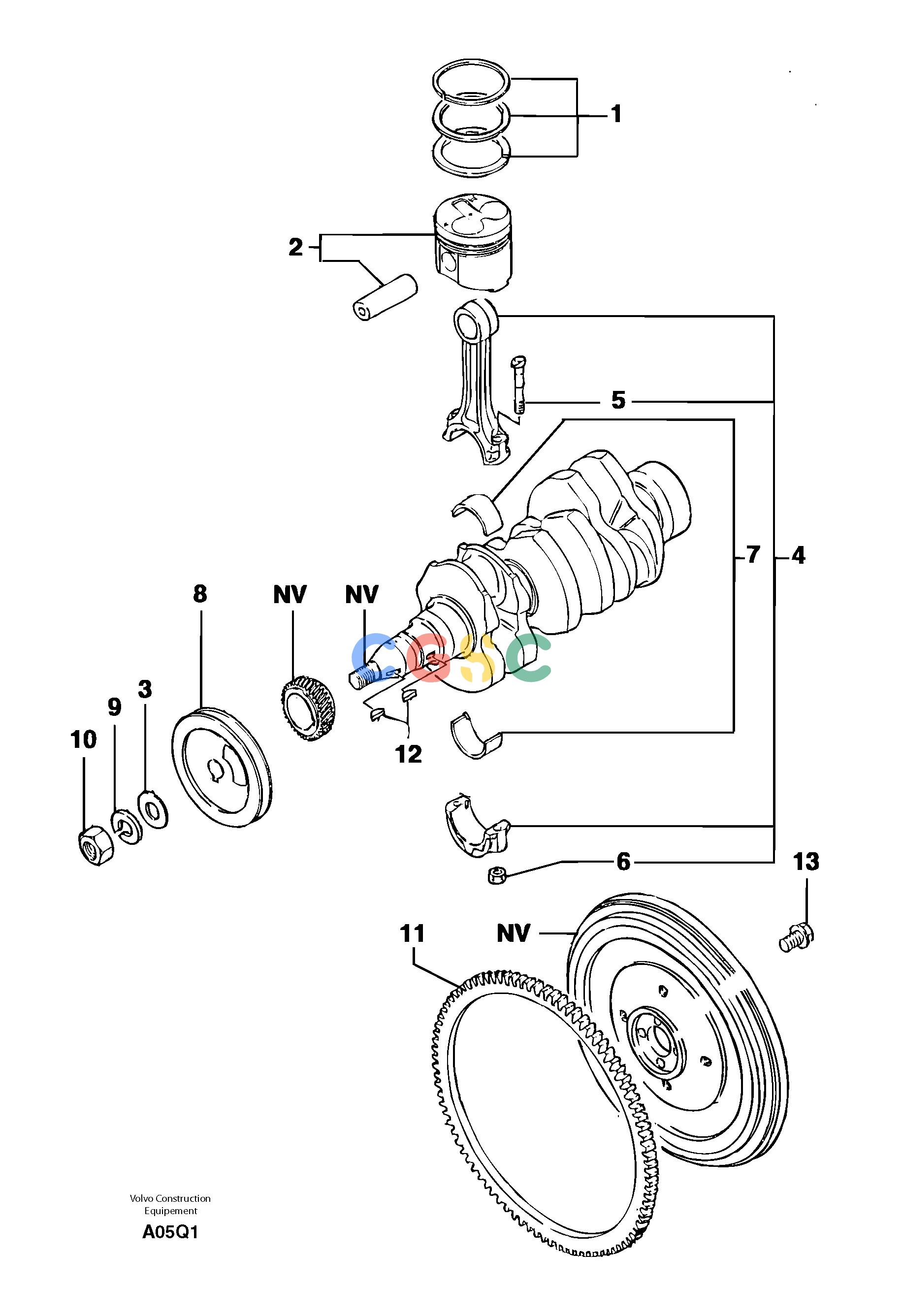

沃尔沃零件查询EC14 Pistons / connecting rods / crankshaft / flywheelTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
495 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7410666
|
[3] |
Piston rings (kit)
|
STD SZ
|
| 1. |
PJ7411182
|
[3] |
Piston rings (kit)
|
0,25mm/0.0098in
|
| 1. |
PJ7411183
|
[3] |
Piston rings (kit)
|
0,50mm/0.0197in
|
| 2. |
PJ7415182
|
[3] |
Piston
|
STD SZ
|
| 2. |
PJ7415742
|
[3] |
Piston
|
0,25mm/0.0098in
|
| 2. |
PJ7415743
|
[3] |
Piston
|
0,50mm/0.0197in
|
| 3. |
PJ7410600
|
[1] |
Washer
|
|
| 4. |
PJ7415744
|
[3] |
Piston rod
|
|
| 5. |
PJ7415819
|
[2] |
Screw
|
|
| 6. |
PJ7410045
|
[2] |
Nut
|
|
| 7. |
VOE11716691
|
[3] |
Connecting Rod
|
STD SZ
|
| 7. |
VOE11716692
|
[3] |
Connecting Rod
|
0,25mm/0.0098in
|
| 7. |
VOE11716693
|
[3] |
Connecting Rod
|
0,50mm/0.0197in
|
| 8. |
PJ7415745
|
[1] |
Pulley
|
|
| 9. |
PJ7410601
|
[1] |
Lock Washer
|
|
| 10. |
PJ7410598
|
[1] |
Nut
|
|
| 11. |
PJ7410588
|
[1] |
Tooth Wheel
|
|
| 12. |
PJ7410602
|
[2] |
Key
|
|
| 13. |
PJ7410589
|
[4] |
Screw
|
|
