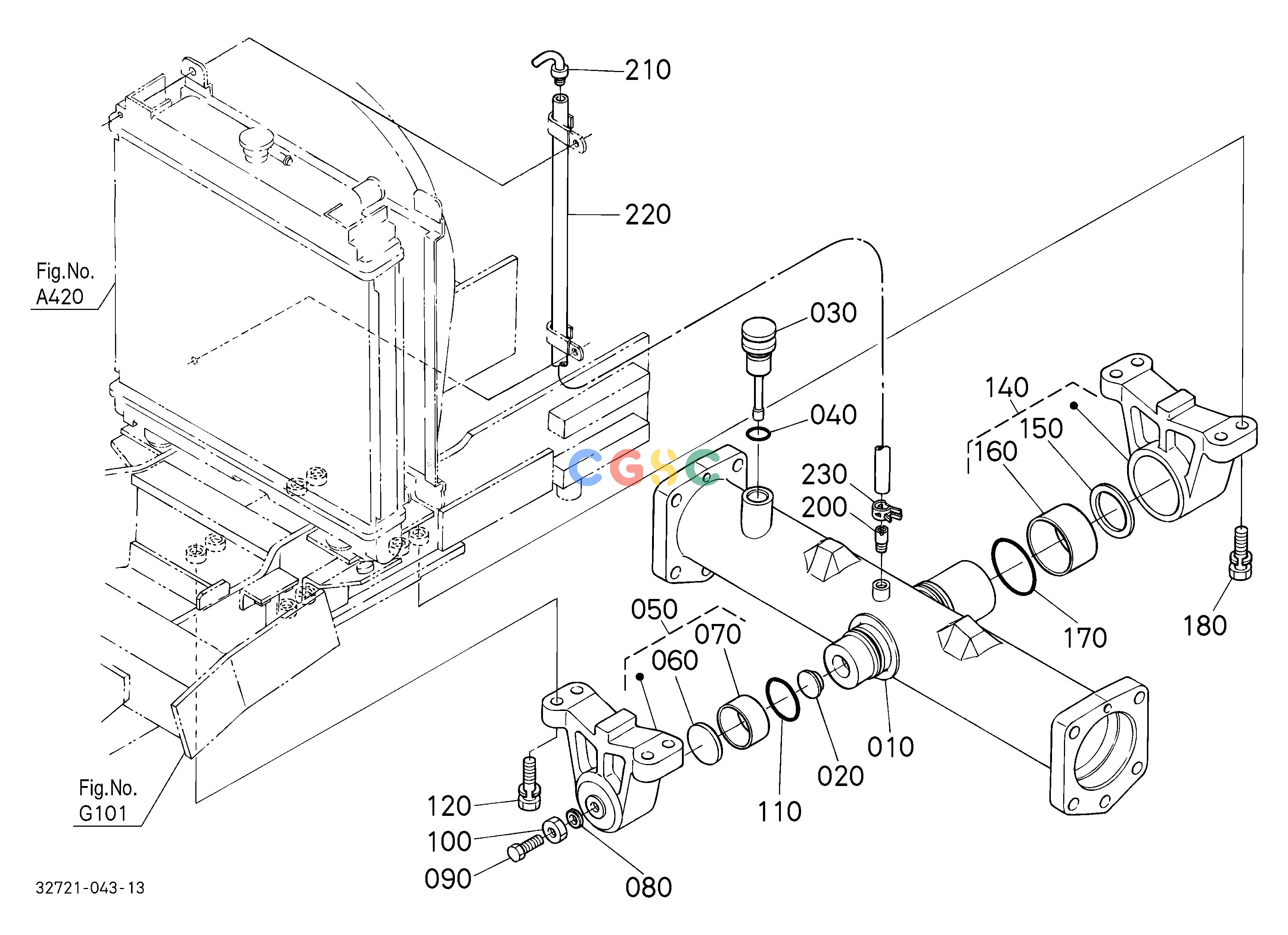

久保田零件查询G10500 FRONT AXLE CASE FRONT AXLEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
177 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272156110
|
[1] |
CASE FRONT AXLE
|
0.0000(lbs); 0.000
|
| 010. |
3272156113
|
[1] |
CASE FRONT AXLE
|
24.2000(lbs); 11.000
|
| 020. |
0631185025
|
[1] |
CAP SEALING
|
0.0220(lbs); 0.010
|
| 020. |
5014061210
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 030. |
6C04056123
|
[1] |
GAUGE OIL
|
0.0528(lbs); 0.024
|
| 040. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481600180
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 050. |
3272156170
|
[1] |
ASSY HOLDER
|
6.9520(lbs); 3.160
|
| 060. |
3741056180
|
[1] |
COLLAR THRUST
|
0.1320(lbs); 0.060
|
| 070. |
0851105025
|
[1] |
BUSH
|
0.1716(lbs); 0.078
|
| 080. |
6103314250
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 090. |
3130344760
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 100. |
3275113550
|
[1] |
NUT
|
0.0594(lbs); 0.027
|
| 110. |
0481100490
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 110. |
0481600490
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 120. |
0117651250
|
[4] |
BOLT
|
0.1122(lbs); 0.051
|
| 120. |
0113861250
|
[4] |
BOLT
|
0.1188(lbs); 0.054
|
| 140. |
3272156180
|
[1] |
ASSY HOLDER
|
7.7440(lbs); 3.520
|
| 150. |
3741056270
|
[1] |
COLLAR THRUST
|
0.0770(lbs); 0.035
|
| 160. |
3258043690
|
[1] |
DU-BUSH
|
0.3080(lbs); 0.140
|
| 170. |
0481150650
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 180. |
0117651250
|
[4] |
BOLT
|
0.1122(lbs); 0.051
|
| 180. |
0113861250
|
[4] |
BOLT
|
0.1188(lbs); 0.054
|
| 200. |
3620021610
|
[1] |
BREATHER
|
0.0176(lbs); 0.008
|
| 210. |
6A10036410
|
[1] |
BREATHER
|
0.0132(lbs); 0.006
|
| 220. |
0966380675
|
[1] |
TUBE FUEL
|
0.1760(lbs); 0.080
|
| 230. |
0931888130
|
[1] |
CLAMP HOSE
|
0.0044(lbs); 0.002
|
