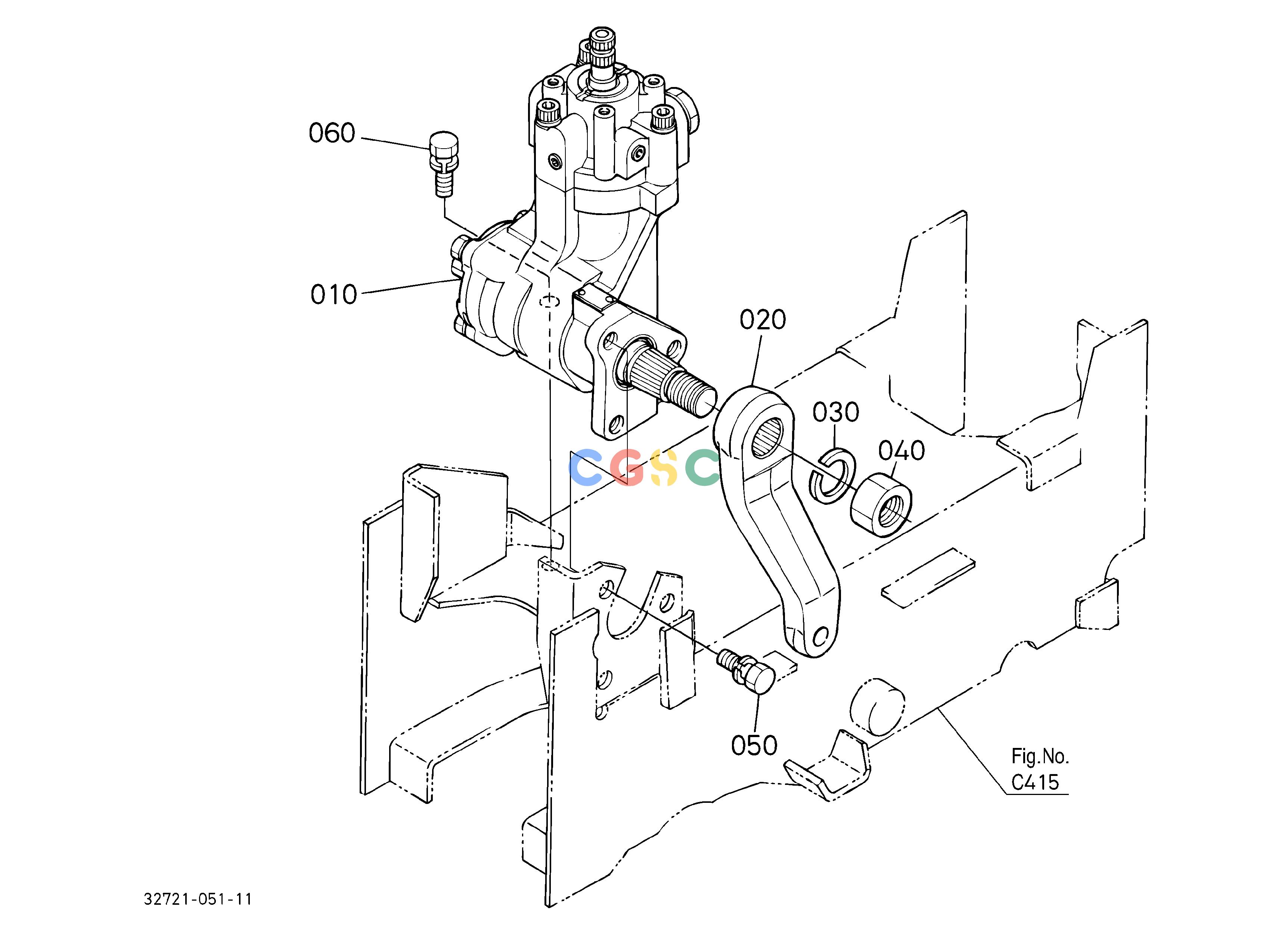

久保田零件查询J10100 HYDRAULIC PUMP(PS) STEERINGEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
603 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272141100
|
[1] |
ASSY STEERING POWER
|
0.0000(lbs); 0.000
|
| 010. |
3272141102
|
[1] |
ASSY STEERING POWER
|
26.8400(lbs); 12.200
|
| 010. |
3272141500
|
[1] |
ASSY STEERING POWER
|
24.8600(lbs); 11.300
|
| 020. |
3272141210
|
[1] |
ARM PITMAN
|
2.5300(lbs); 1.150
|
| 030. |
0451260220
|
[1] |
WASHER SPRING
|
0.0550(lbs); 0.025
|
| 040. |
0217650220
|
[1] |
NUT
|
0.1276(lbs); 0.058
|
| 050. |
0113351230
|
[3] |
BOLT
|
0.0880(lbs); 0.040
|
| 060. |
0113351235
|
[2] |
BOLT
|
0.0946(lbs); 0.043
|
