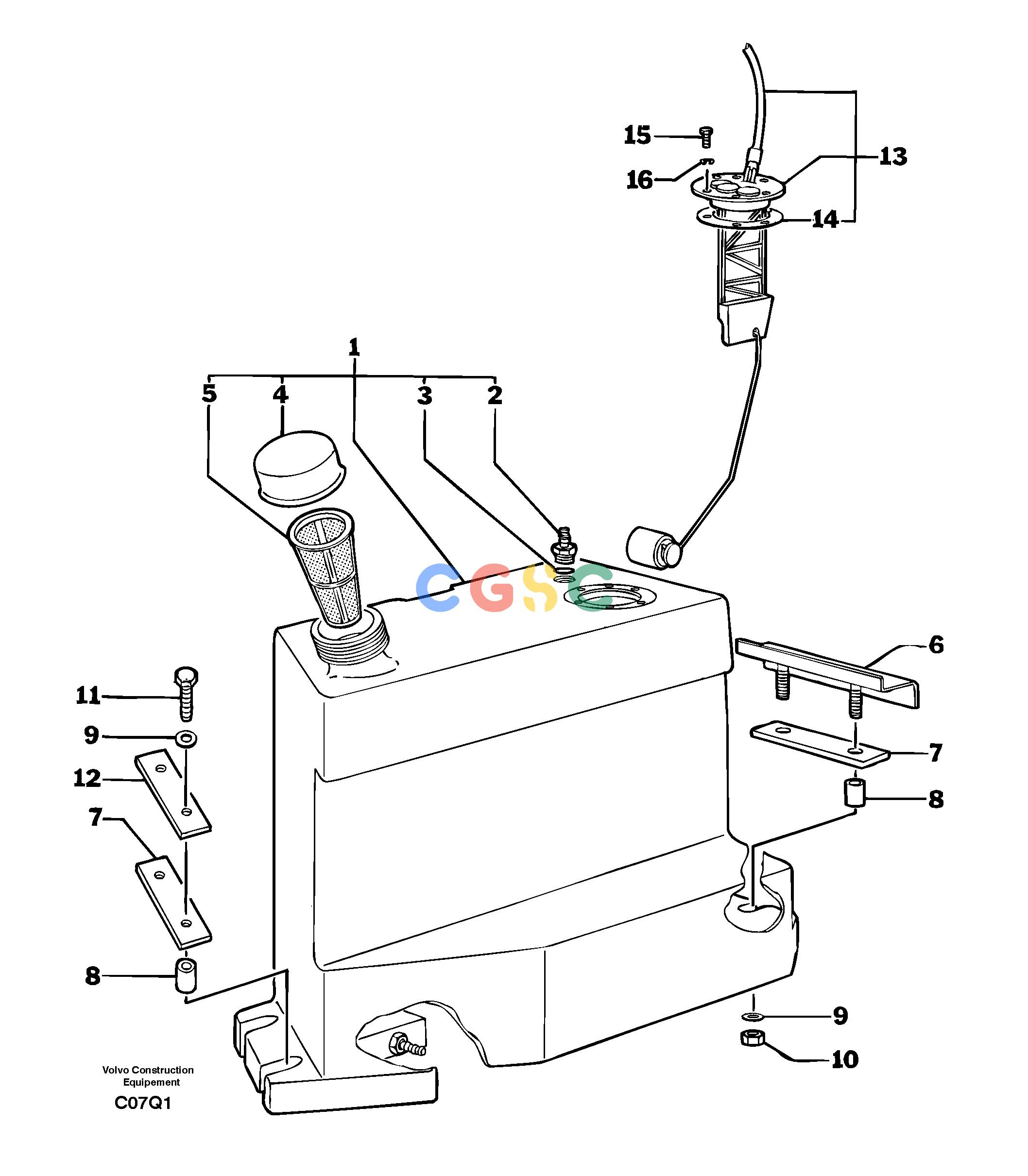

沃尔沃零件查询EC14 Gas-oil tankTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
325 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ5020034
|
[1] |
Hydraulic fluid tank
|
|
| 2. |
PJ4750268
|
[2] |
Sprt Brg Shaft
|
|
| 3. |
VOE11800699
|
[2] |
Seal
|
|
| 4. |
PJ4740065
|
[1] |
Filler cap
|
|
| 5. |
PJ6050081
|
[1] |
Strainer
|
|
| 6. |
PJ3810794
|
[1] |
Apron
|
|
| 7. |
PJ5140158
|
[2] |
Rubber strap
|
|
| 8. |
PJ3920038
|
[4] |
Spacer
|
|
| 9. |
VOE11807554
|
[4] |
Washer
|
M10
|
| 10. |
VOE983304
|
[2] |
Hexagon nut
|
HM10
|
| 11. |
PJ4380058
|
[2] |
Screw
|
HM10X60
|
| 12. |
PJ3310184
|
[1] |
Plate
|
|
| 13. |
PJ5130040
|
[1] |
Sender
|
|
| 14. |
PJ7412957
|
[1] |
Seal
|
|
| 15. |
VOE955228
|
[6] |
Hexagon screw
|
HM4X16
|
| 16. |
PJ4470005
|
[6] |
Lock Washer
|
W4
|
