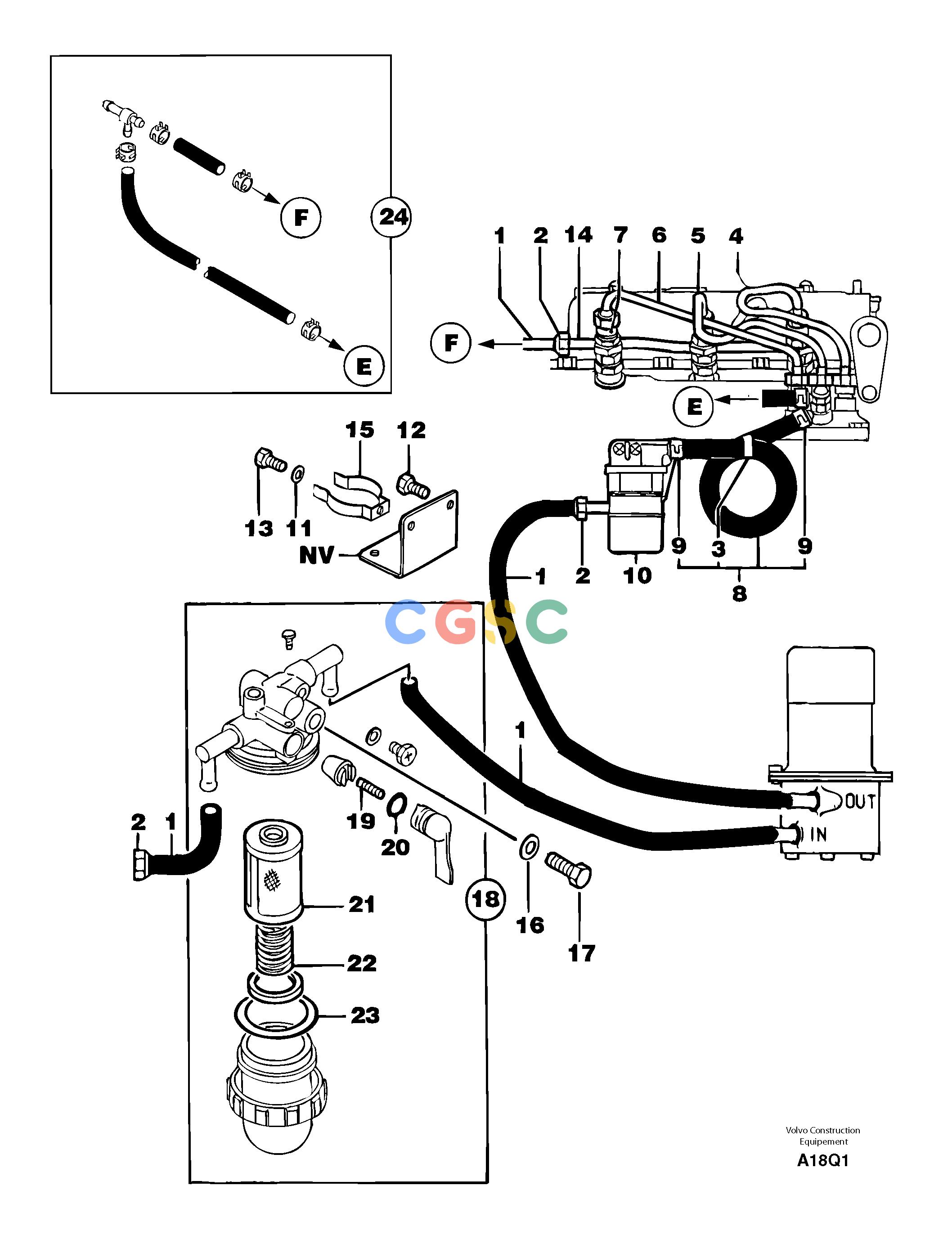

沃尔沃零件查询EC14 Fuel circuitTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11801991
|
[REQ] |
Tube
|
|
| 2. |
VOE11806174
|
[3] |
Clamp
|
|
| 3. |
PJ7412902
|
[1] |
Clamp
|
INCL IN 8
|
| 4. |
PJ7410753
|
[1] |
Pipe
|
|
| 5. |
PJ7410754
|
[1] |
Pipe
|
|
| 6. |
PJ7412908
|
[1] |
Pipe
|
|
| 7. |
PJ7410716
|
[3] |
Nut
|
|
| 8. |
PJ7413150
|
[1] |
Tube
|
|
| 9. |
PJ7412929
|
[2] |
Clamp
|
|
| 10. |
PJ11715847
|
[1] |
Fuel filter
|
|
| |
PJ7410170
|
[1] |
Fuel filter
|
|
| 10. |
PJ7410170/20
|
[1] |
Filter Kit
|
|
| 11. |
PJ7410123
|
[1] |
Washer
|
|
| 12. |
PJ7410097
|
[2] |
Screw
|
|
| 13. |
PJ7410100
|
[1] |
Screw
|
|
| 14. |
PJ7412913
|
[1] |
Pipe
|
|
| 15. |
PJ7410171
|
[1] |
Flange
|
|
| 16. |
VOE11806142
|
[1] |
Washer
|
M6
|
| 17. |
PJ4380028
|
[1] |
Screw
|
HM6X65
|
| 18. |
PJ6050073
|
[1] |
Sediment bowl
|
|
| 19. |
PJ7412905
|
[1] |
Spring
|
|
| 20. |
PJ7412906
|
[1] |
O-ring
|
|
| 21. |
VOE11715846
|
[1] |
Fuel filter insert
|
|
| 22. |
PJ7412922
|
[1] |
Spring
|
|
| 23. |
VOE11715870
|
[1] |
O-ring
|
|
| 24. |
PJ7415746
|
[1] |
Tube Assembly
|
|
