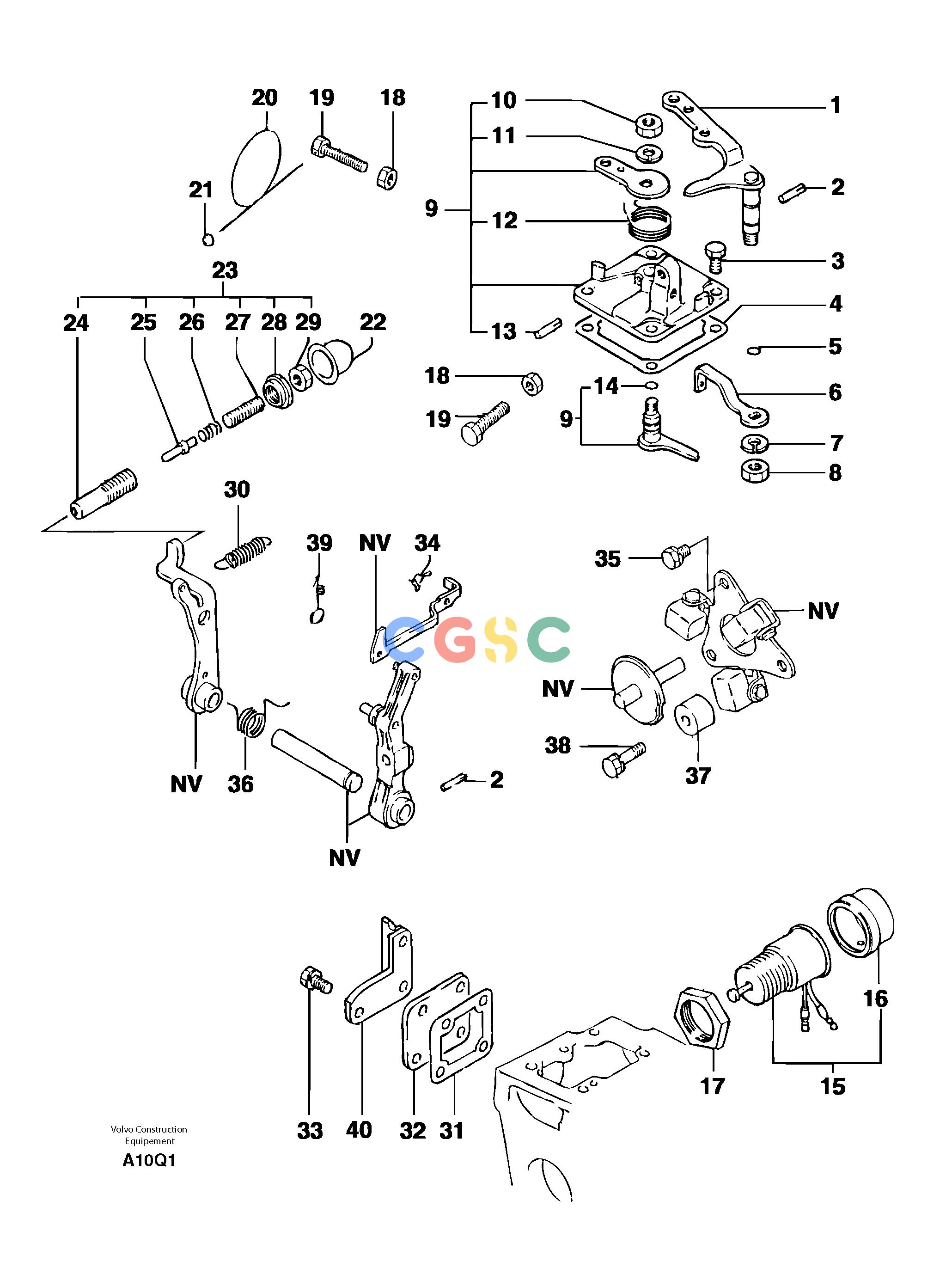

沃尔沃零件查询EC14 Engine injection pump controlTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
989 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7410788
|
[1] |
Lever
|
|
| 2. |
PJ7410742
|
[2] |
Pin
|
|
| 3. |
PJ7410720
|
[4] |
Screw
|
|
| 4. |
PJ7410783
|
[1] |
Seal
|
|
| 5. |
PJ7410133
|
[1] |
O-ring
|
|
| 6. |
PJ7410768
|
[1] |
Lever
|
|
| 7. |
PJ7410126
|
[1] |
Lock Washer
|
|
| 8. |
PJ7410120
|
[1] |
Nut
|
|
| 9. |
PJ7410778
|
[1] |
Cover kit
|
|
| 10. |
PJ7410120
|
[1] |
Nut
|
|
| 11. |
PJ7410126
|
[1] |
Lock Washer
|
|
| 12. |
PJ7410780
|
[1] |
Spring
|
|
| 13. |
PJ7410766
|
[1] |
Pin
|
|
| 14. |
PJ7410133
|
[1] |
O-ring
|
|
| 15. |
PJ7413147
|
[1] |
Solenoid
|
|
| 16. |
PJ7410292
|
[1] |
Cap
|
|
| 17. |
PJ7410289
|
[1] |
Nut
|
|
| 18. |
PJ7410116
|
[2] |
Nut
|
|
| 19. |
PJ7410174
|
[2] |
Screw
|
|
| 20. |
PJ7410148
|
[1] |
Wire
|
|
| 21. |
PJ7410147
|
[1] |
Seal
|
|
| 22. |
PJ7410804
|
[1] |
Cap
|
|
| 23. |
PJ7413152
|
[1] |
Regulator
|
|
| 24. |
PJ7410786
|
[1] |
Threaded part
|
|
| 25. |
PJ7413151
|
[1] |
Rod
|
|
| 26. |
PJ7413149
|
[1] |
Spring
|
|
| 27. |
PJ7410787
|
[1] |
Screw with pin
|
|
| 28. |
PJ7410785
|
[1] |
Nut
|
|
| 29. |
PJ7410714
|
[1] |
Nut
|
|
| 30. |
PJ7413179
|
[1] |
Spring
|
|
| 31. |
PJ7410767
|
[1] |
Seal
|
|
| 32. |
PJ7410805
|
[1] |
Cover
|
|
| 33. |
PJ7410101
|
[4] |
Screw
|
|
| 34. |
PJ7410776
|
[1] |
Fastener
|
|
| 35. |
PJ7410099
|
[2] |
Screw
|
|
| 36. |
PJ7413015
|
[1] |
Spring
|
|
| 37. |
PJ7410736
|
[1] |
Bushing
|
|
| 38. |
PJ7410726
|
[1] |
Screw
|
|
| 39. |
PJ7412994
|
[1] |
Spring
|
|
| 40. |
PJ3610131
|
[1] |
Support
|
|
| 40. |
PJ3610131
|
|
Support
|
S/N - 271.18352
|
| 40. |
PJ3560624
|
|
Support
|
S/N 271.18353 -
|
