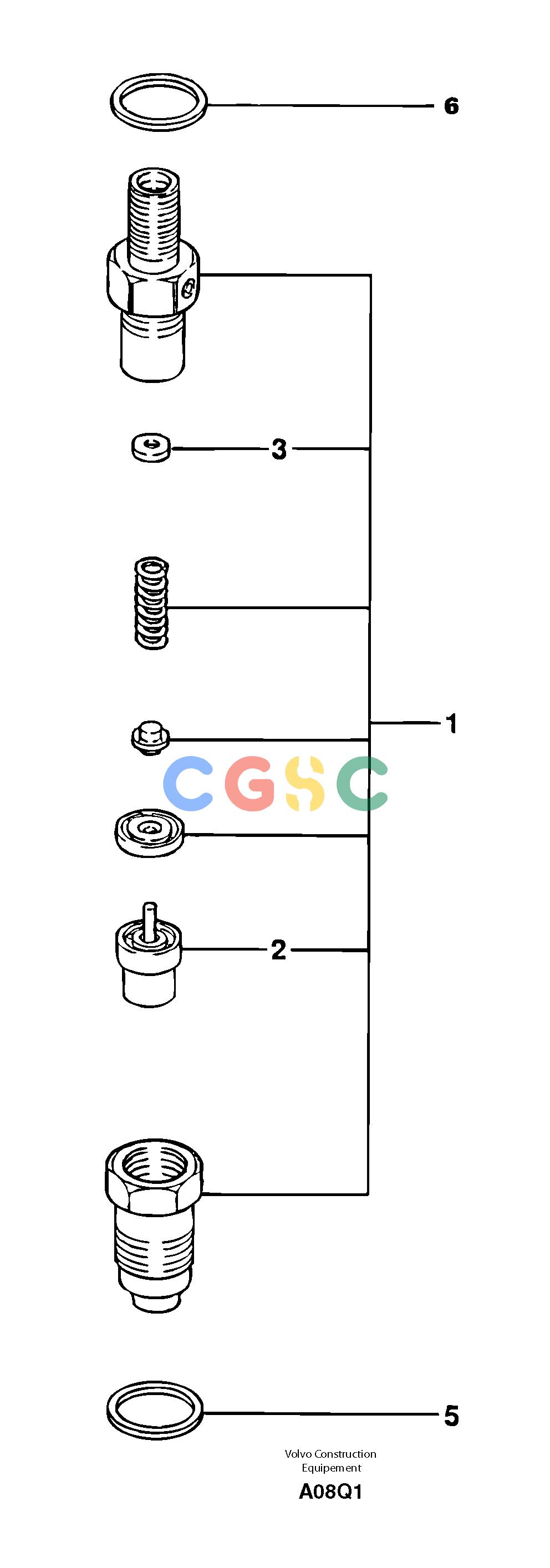

沃尔沃零件查询EC14 InjectorTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
315 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7413007
|
[3] |
Injector
|
|
| 2. |
PJ7410590
|
[1] |
Nozzle
|
|
| 3. |
PJ7410676
|
[REQ] |
Washer
|
THICK = 1,25mm/0,0492in
|
| 3. |
PJ7410677
|
[REQ] |
Washer
|
THICK = 1,30mm/0,0512in
|
| 3. |
PJ7410678
|
[0REQ] |
Washer
|
THICK = 1,35mm/0,0531in
|
| 3. |
PJ7410679
|
[REQ] |
Washer
|
THICK = 1,40mm/0,0551in
|
| 3. |
PJ7410680
|
[REQ] |
Washer
|
THICK = 1,45mm/0,0571in
|
| 3. |
PJ7410681
|
[REQ] |
Washer
|
THICK = 1,50mm/0,0591in
|
| 3. |
PJ7410682
|
[REQ] |
Washer
|
THICK = 1,55mm/0,0610in
|
| 3. |
PJ7410683
|
[REQ] |
Washer
|
THICK = 1,60mm/0,0630in
|
| 3. |
PJ7410684
|
[REQ] |
Washer
|
THICK = 1,65mm/0,0650in
|
| 3. |
PJ7410685
|
[REQ] |
Washer
|
THICK = 1,70mm/0,0669in
|
| 5. |
PJ7410718
|
[3] |
Seal
|
|
| 6. |
PJ7410717
|
[3] |
Seal
|
|
