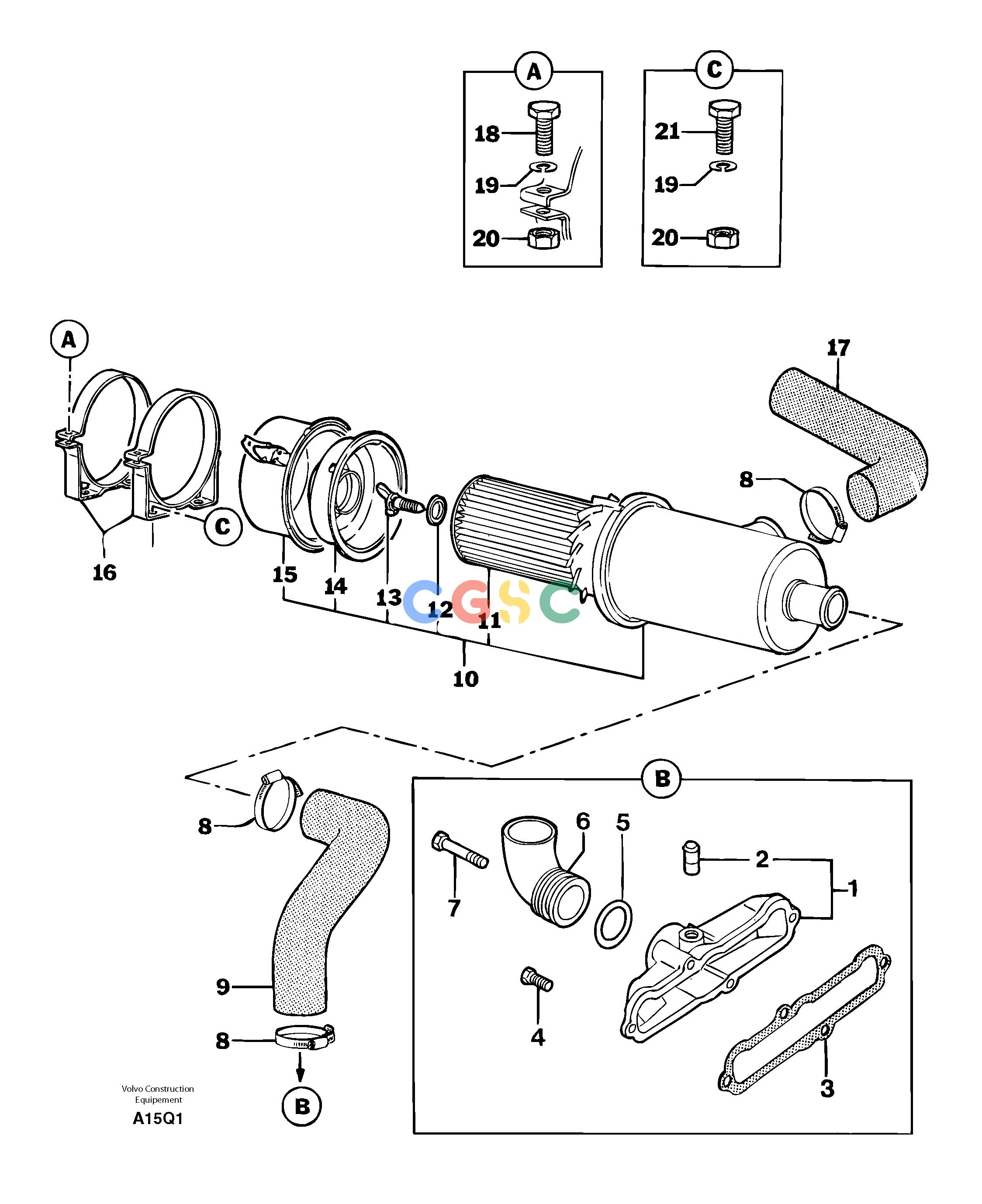

沃尔沃零件查询EC14 Intake / air filterTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
291 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7412892
|
[1] |
Commutator
|
|
| 2. |
VOE15043675
|
[1] |
Pipe
|
|
| 3. |
PJ7412891
|
[1] |
Gasket
|
|
| 4. |
PJ7410591
|
[2] |
Screw
|
|
| 5. |
PJ7410729
|
[1] |
O-ring
|
|
| 6. |
PJ7410760
|
[1] |
Intake pipe
|
|
| 7. |
PJ7410721
|
[2] |
Screw
|
|
| 8. |
VOE11806184
|
[3] |
Cable clamp
|
|
| 9. |
PJ4190072
|
[1] |
Hose
|
|
| 10. |
PJ7410033
|
[1] |
Air filter
|
|
| 11. |
VOE11715871
|
[1] |
Air filter
|
|
| 12. |
PJ7410029
|
[1] |
Washer
|
|
| 13. |
PJ7410030
|
[1] |
Wing Screw
|
|
| 14. |
PJ7410031
|
[1] |
Cap
|
|
| 15. |
PJ7410032
|
[1] |
Cover
|
|
| 16. |
PJ4690021
|
[2] |
Clamp
|
|
| 17. |
PJ4190071
|
[1] |
Hose
|
|
| 18. |
PJ4380043
|
[2] |
Screw
|
HM8X20
|
| 19. |
VOE13955894
|
[6] |
Washer
|
MU8
|
| 20. |
VOE983303
|
[6] |
Hexagon nut
|
HM8
|
| 21. |
PJ4380042
|
[4] |
Screw
|
HM8X16
|
