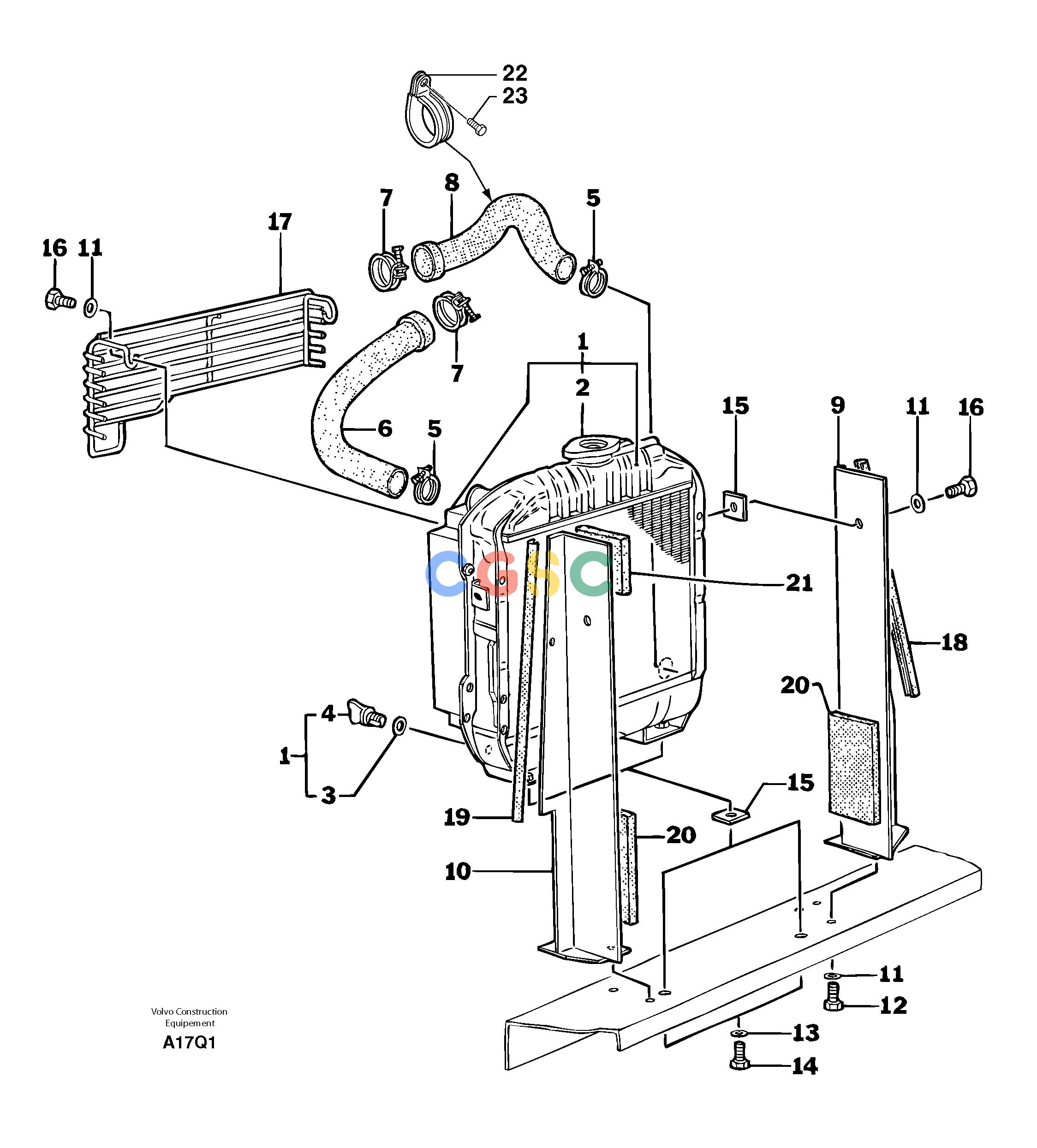

沃尔沃零件查询EC14 RadiatorTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7413165
|
[1] |
Water cooler
|
|
| 2. |
PJ7413171
|
[1] |
Plug
|
|
| 3. |
PJ7413169
|
[1] |
Seal
|
|
| 4. |
PJ7413170
|
[1] |
Plug tap
|
|
| 5. |
PJ7410140
|
[2] |
Clamp
|
|
| 6. |
PJ7413166
|
[1] |
Hose
|
|
| 7. |
PJ7410140
|
[2] |
Clamp
|
|
| 8. |
PJ7413167
|
[1] |
Hose
|
|
| 9. |
PJ3810793
|
[1] |
Support
|
RH
|
| 10. |
PJ3810792
|
[1] |
Support
|
LH
|
| 11. |
VOE13955894
|
[9] |
Washer
|
MU8
|
| 12. |
PJ4380037
|
[5] |
Screw
|
HM8X12
|
| 13. |
VOE960148
|
[2] |
Plain washer
|
MU10
|
| 14. |
PJ4380162
|
[2] |
Screw
|
HM10X20
|
| 15. |
VOE11806240
|
[4] |
Stop
|
|
| 16. |
PJ4380043
|
[4] |
Screw
|
HM8X20
|
| 17. |
VOE11806417
|
[1] |
Grating
|
|
| 18. |
PJ5600045
|
[REQ] |
Seal
|
L = 210mm/8.2677in
|
| 19. |
PJ5600045
|
[REQ] |
Seal
|
L = 290mm/11.4173in
|
| 20. |
VOE11805759
|
[REQ] |
Seal
|
L = 285mm/11.2205in
|
| 21. |
VOE11805759
|
[REQ] |
Seal
|
L = 10mm/0.3937in
|
| 22. |
PJ7417515
|
[1] |
Clamp
|
|
| 23. |
PJ7417516
|
[1] |
Screw
|
|
