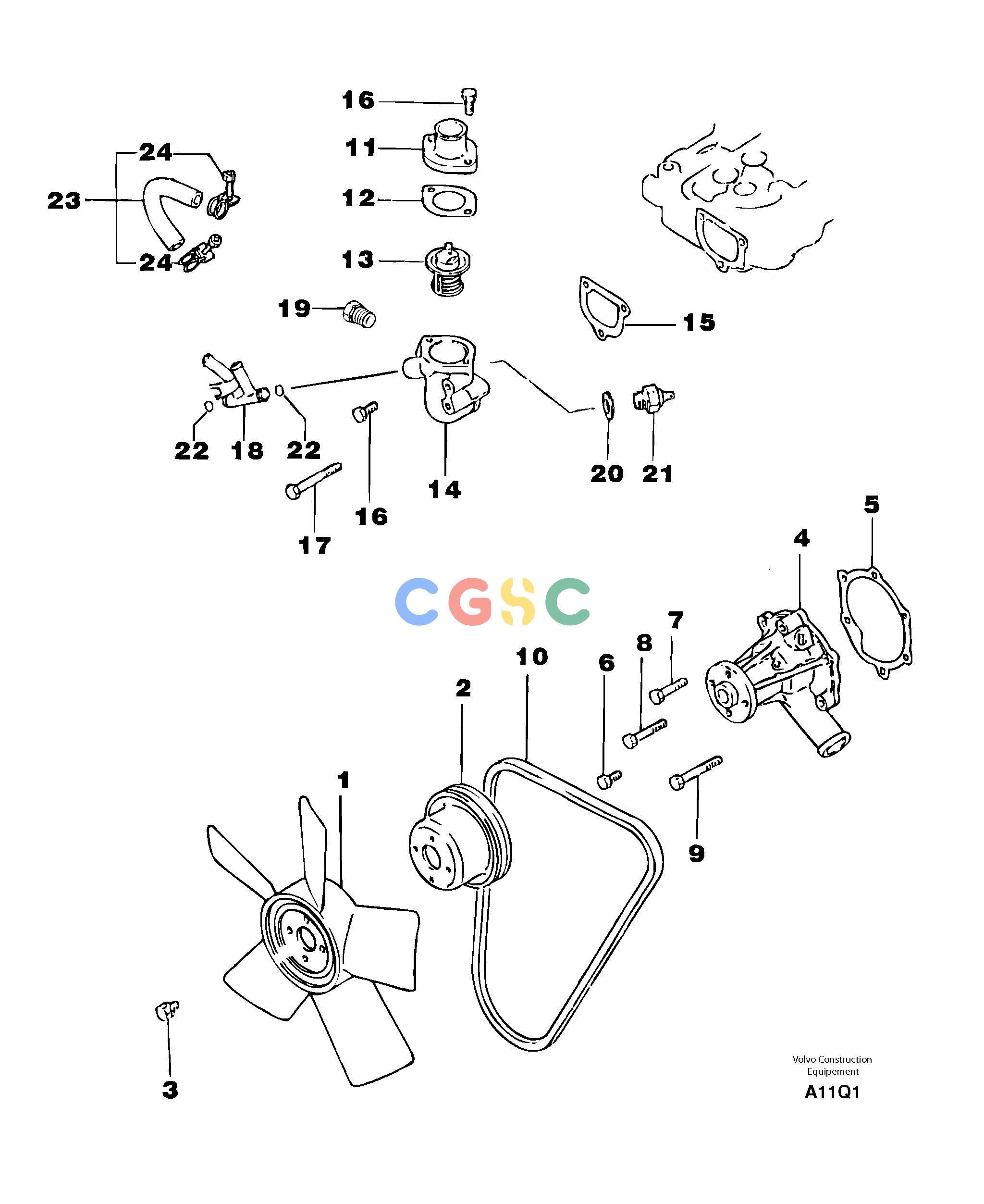

沃尔沃零件查询EC14 Engine cooling systemTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
684 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7412981
|
[1] |
Fan
|
|
| 2. |
PJ7410036
|
[1] |
Pulley
|
|
| 3. |
PJ7410100
|
[4] |
Screw
|
|
| 4. |
PJ7410770
|
[1] |
Water Pump
|
|
| 5. |
PJ7410756
|
[1] |
Seal
|
|
| 6. |
PJ7410591
|
[2] |
Screw
|
|
| 7. |
PJ7410592
|
[1] |
Screw
|
|
| 8. |
PJ7410721
|
[1] |
Screw
|
|
| 9. |
PJ7410593
|
[2] |
Screw
|
|
| 10. |
PJ7413005
|
[1] |
V-belt
|
|
| 11. |
PJ7410749
|
[1] |
Flange
|
|
| 12. |
PJ7410755
|
[1] |
Seal
|
|
| 13. |
PJ7410802
|
[1] |
Thermostat
|
|
| 14. |
VOE15134650
|
[1] |
Case
|
|
| 15. |
PJ7418369
|
[1] |
Seal
|
|
| 16. |
PJ7410591
|
[4] |
Screw
|
|
| 17. |
PJ7410722
|
[1] |
Screw
|
|
| 18. |
PJ7413164
|
[1] |
Pipe
|
|
| 19. |
PJ7412980
|
[1] |
Plug
|
|
| 20. |
PJ7410731
|
[1] |
Sealing ring
|
|
| 21. |
PJ7410752
|
[1] |
Thermo Contact
|
|
| 22. |
PJ7410728
|
[2] |
O-ring
|
|
| 23. |
PJ4199198
|
[1] |
Water hose
|
|
| 24. |
PJ7414907
|
[2] |
Clamp
|
|
