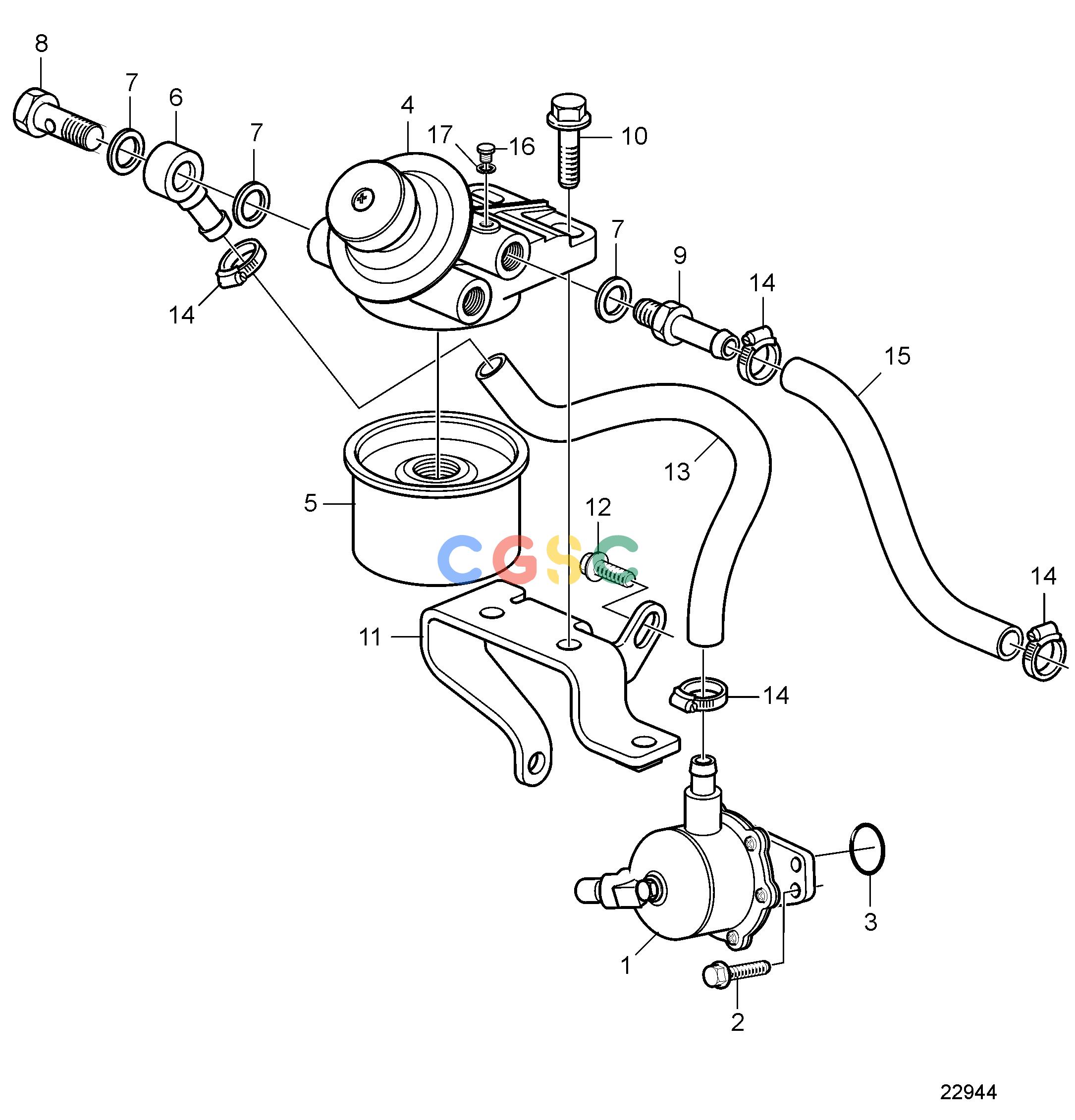

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FFuel SystemFuel Filter and Feed PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
247 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584126
|
[1] |
Feed pump
|
Replaced by 21132189
|
| 1. |
21132189
|
[1] |
Feed pump
|
|
| 2. |
945358
|
[2] |
Flange screw
|
|
| 3. |
3589332
|
[1] |
O-ring
|
|
| 4. |
3584125
|
[1] |
Fuel filter
|
|
| 5. |
861477
|
[1] |
Fuel filter
|
|
| 6. |
3580101
|
[1] |
Banjo nipple
|
|
| 7. |
969011
|
[3] |
Gasket
|
|
| 8. |
3580098
|
[1] |
Hollow screw
|
|
| 9. |
3809680
|
[1] |
Nipple
|
|
| 10. |
946329
|
[2] |
Flange screw
|
|
| 11. |
3884306
|
[1] |
Bracket
|
(3809651), Replaced by 22444100
|
| 11. |
22444100
|
[1] |
Bracket
|
|
| 12. |
946440
|
[1] |
Flange screw
|
|
| 13. |
3883327
|
[1] |
Hose
|
|
| 14. |
961664
|
[4] |
Hose clamp
|
|
| 15. |
3887568
|
[1] |
Hose
|
|
| 16. |
3589276
|
[1] |
Air nipple
|
|
| 17. |
11991
|
[1] |
Gasket
|
|
