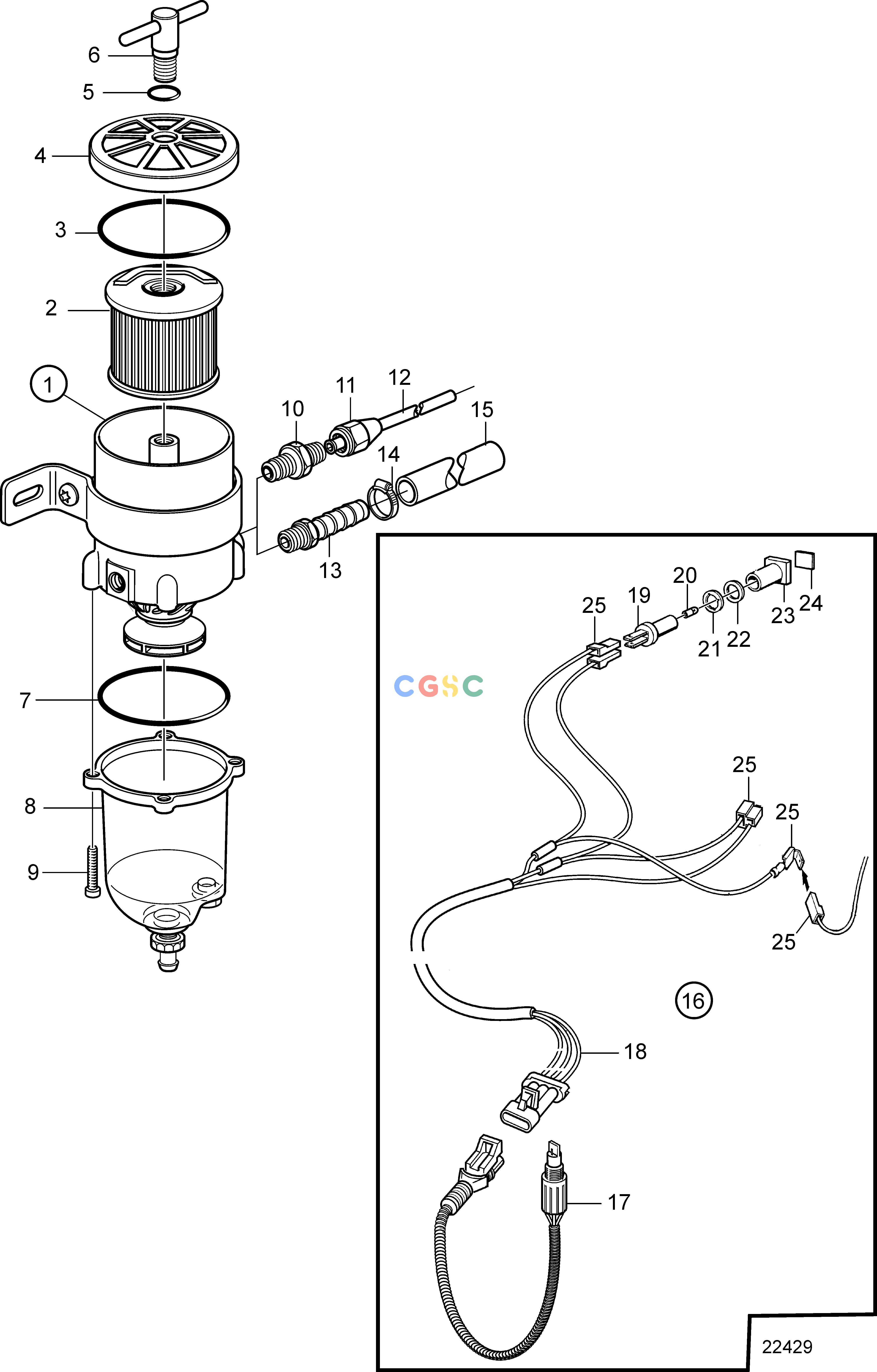

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FFuel SystemFuel Filter and Water SeparatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
662 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
877762
|
[1] |
Fuel filter
|
(861143)
|
| 2. |
1147147
|
[1] |
Fuel filter insert
|
2 mikron
|
| 2. |
861014
|
[1] |
Insert
|
10 mikron, Std
|
| 2. |
3581760
|
[1] |
Insert
|
30 mikron
|
| 3. |
838504
|
[1] |
Gasket
|
|
| 4. |
|
|
|
|
| 5. |
838505
|
[1] |
O-ring
|
|
| 6. |
|
|
|
|
| 7. |
3838861
|
[1] |
Gasket
|
|
| 8. |
3838848
|
[1] |
Bowl
|
|
| 9. |
950024
|
[4] |
Cross recessed screw
|
|
| 10. |
954337
|
[2] |
Nipple
|
|
| 11. |
954323
|
[2] |
Fitting nut
|
|
| 12. |
1140062
|
[2] |
Copper tube
|
|
| 13. |
3825000
|
[2] |
Hose nipple
|
|
| 14. |
961664
|
[2] |
Hose clamp
|
|
| 15. |
861057
|
[1] |
Fuel hose
|
3/8''
|
| 16. |
1140724
|
[1] |
Level guard
|
|
| 17. |
3588916
|
[1] |
Alarm kit
|
|
| 18. |
881774
|
[1] |
Wiring harness
|
|
| 19. |
808175
|
[1] |
Bulb socket
|
|
| 20. |
19923
|
[1] |
Bulb
|
12V, 2W
|
| 20. |
182059
|
[1] |
Bulb
|
24V, 3W
|
| 21. |
967583
|
[1] |
Retainer
|
|
| 22. |
829714
|
[1] |
Sealing ring
|
|
| 23. |
838455
|
[1] |
Retainer
|
|
| 24. |
872591
|
[1] |
Symbol strip
|
|
| 25. |
7746500_142
|
|
cables and terminals
|
|
