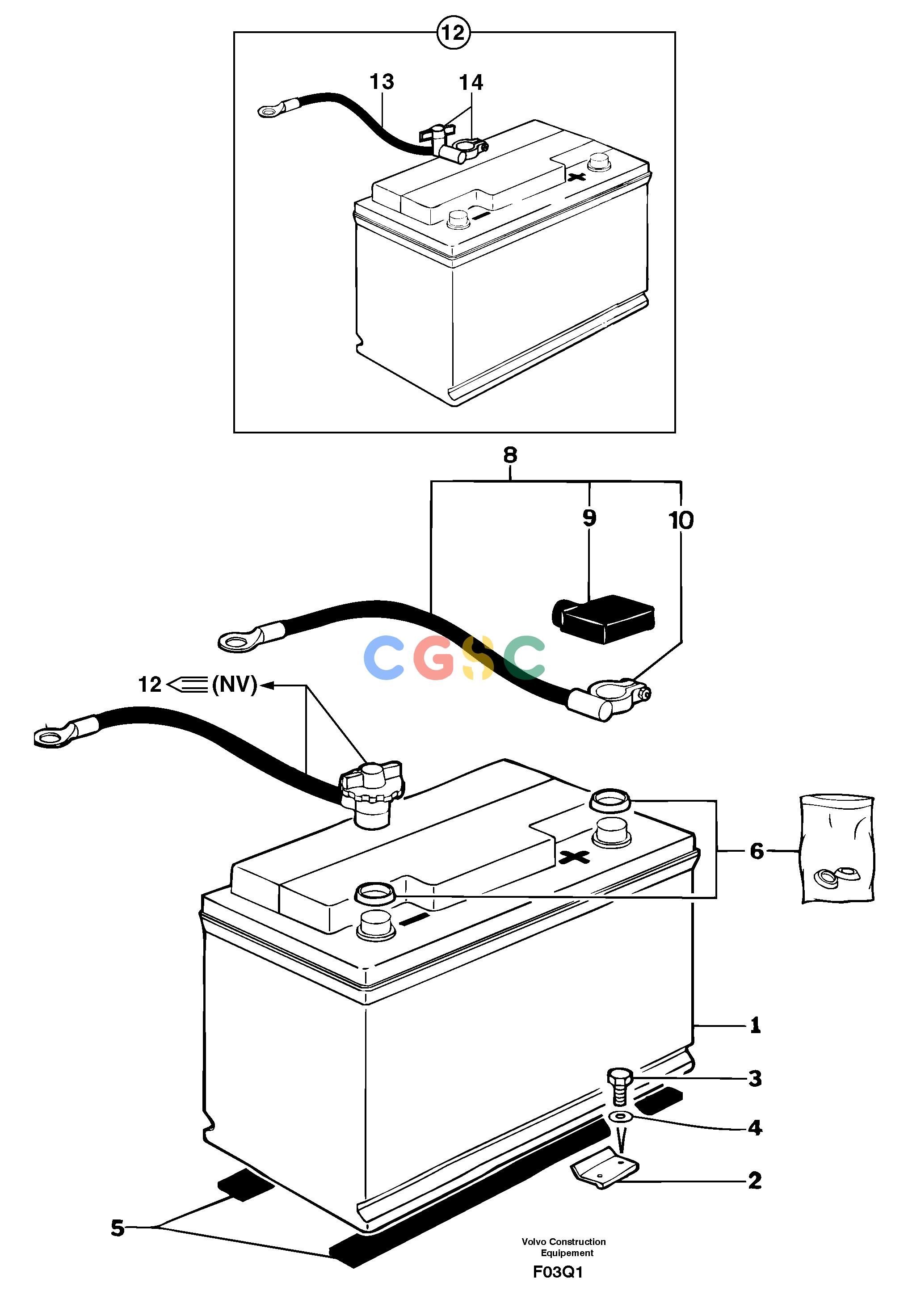

沃尔沃零件查询EC14 Battery installationTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ5180073/S
|
[1] |
Dry battery
|
12V - 44Ah
|
| 2. |
PJ3610030
|
[1] |
Stop, Shoulder
|
|
| 3. |
PJ4380043
|
[2] |
Screw
|
HM8X20
|
| 4. |
VOE13955894
|
[2] |
Washer
|
MU8
|
| 5. |
VOE11803128
|
[2] |
Rubber plate
|
|
| 6. |
PJ5140025
|
[1] |
Unit
|
|
| 8. |
VOE11805644
|
[1] |
Cable
|
+
|
| 9. |
PJ5040084
|
[1] |
Cowl
|
|
| 10. |
PJ5090051
|
[1] |
Cable terminal
|
|
| 12. |
PJ6530393
|
[1] |
Repair Kit
|
|
| 13. |
PJ5720597
|
[1] |
Battery cable
|
|
| 14. |
VOE11803192
|
[1] |
Terminal
|
|
