沃尔沃零件查询EC14 AlternatorTYPE 246, 271246.21501-271.10151NoneNone12V - 40AAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
649 次

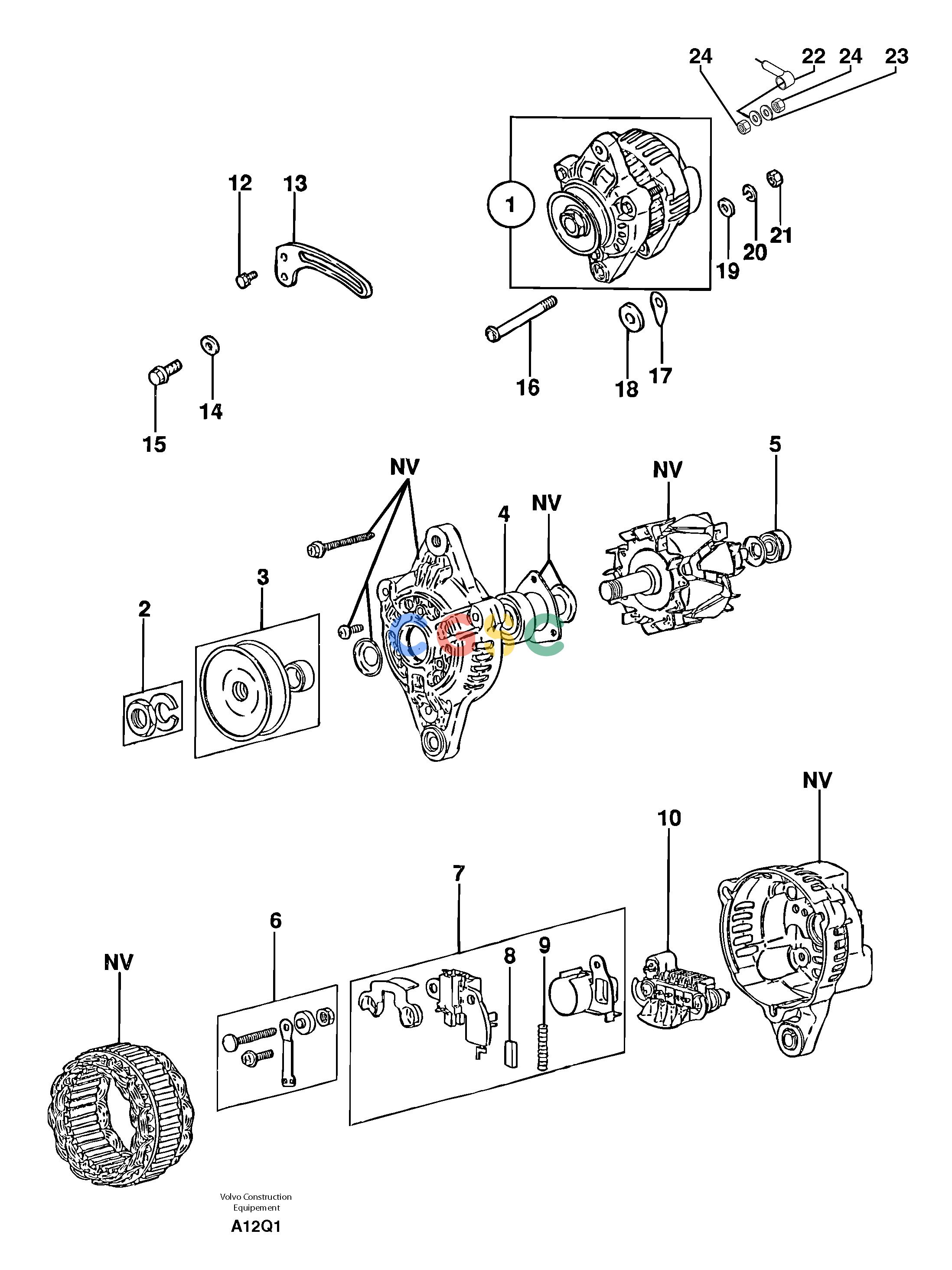

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7412924
|
[1] |
Alternator
|
12 V - 40 A
|
| 2. |
PJ7410390
|
[1] |
Fastener
|
|
| 3. |
PJ7412926
|
[1] |
Pulley
|
|
| 4. |
|
[1] |
Ball bearing
|
ORDER ITEM NO 11
|
| 5. |
|
[1] |
Ball bearing
|
ORDER ITEM NO 11
|
| 6. |
PJ7412903
|
[1] |
Fastener
|
|
| 7. |
PJ7412927
|
[1] |
Brush holder
|
|
| 8. |
|
[2] |
Carbon brushes
|
ORDER ITEM NO 11
|
| 9. |
|
[2] |
Spring
|
ORDER ITEM NO 11
|
| 10. |
PJ7412925
|
[1] |
Rectifier
|
|
| 11. |
PJ7450455
|
[1] |
Repair kit
|
|
| 12. |
PJ7410101
|
[1] |
Screw
|
|
| 13. |
PJ7413148
|
[1] |
Bracket
|
|
| 14. |
PJ7410050
|
[1] |
Washer
|
|
| 15. |
PJ7410095
|
[1] |
Screw
|
|
| 16. |
PJ7412901
|
[1] |
Bolt
|
|
| 17. |
PJ7410049
|
[REQ] |
Shim
|
|
| 18. |
PJ7413009
|
[1] |
Spacer
|
|
| 19. |
PJ7410402
|
[1] |
Washer
|
|
| 20. |
PJ7410126
|
[1] |
Lock Washer
|
|
| 21. |
PJ7410117
|
[1] |
Nut
|
|
| 22. |
VOE11806228
|
[1] |
Pipe
|
|
| 23. |
VOE940090
|
[1] |
Plain washer
|
MU5
|
| 24. |
PJ4410010
|
[2] |
Nut
|
HM5
|
