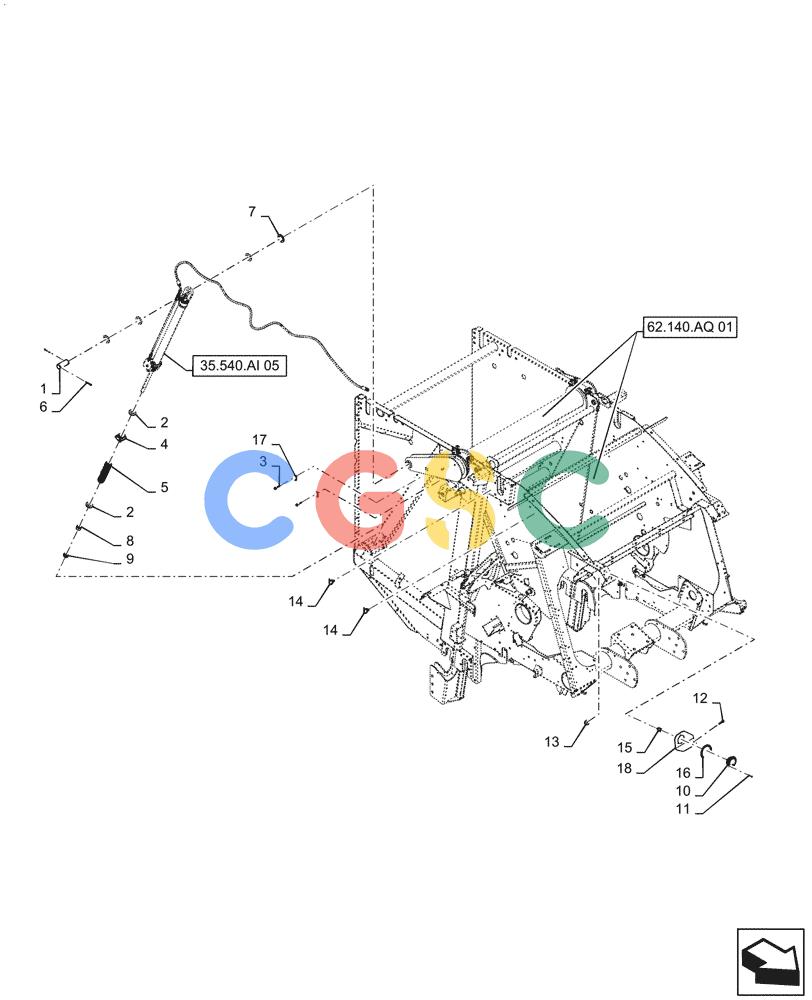

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (35.540.AK[01]) - VAR - 726813 - BELT TENSION, SINGLE HYDRAULIC CYLINDER, WITHOUT BYPASS VALVE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
926 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86515940
|
[1] |
PIN,38.1mm OD x 91.5mm L
|
PA
Superseded by part number: 86637228
|
| 2. |
257163
|
[2] |
WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk
|
NH
|
| 3. |
381014
|
[2] |
SCREW,Flng, M8 x 16mm
|
NH
|
| 4. |
226131
|
[1] |
PIVOT
|
NH
Superseded by part number: 87654703
|
| 5. |
9846489
|
[1] |
SPRING,Compression, 1.81" OD x 9.44" L
|
NH
|
| 6. |
87400
|
[2] |
COTTER PIN,3/16" x 2"
|
WIN
|
| 7. |
28581
|
[4] |
WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk
|
NH
Superseded by part number: 86611730
|
| 8. |
9849647
|
[1] |
NUT,7/8"-9, G5
|
NH
|
| 9. |
87314
|
[1] |
JAM NUT,Jam, 7/8"-9, G2
|
NH
|
| 10. |
84384411
|
[1] |
PRESSURE GAUGE,3000 PSI, 1/4" NPT
|
PLO
|
| 11. |
422520
|
[3] |
BAR
|
CUR
|
| 12. |
9804258
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 14. |
84292754
|
[2] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
| 15. |
241971
|
[1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, Fem Pipe
|
PA
|
| 16. |
84603728
|
[1] |
DECAL
|
PLO
Bale Tension
|
| 17. |
86010402
|
[2] |
CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 18. |
84399830
|
[1] |
SUPPORT
|
PLO
Pressure Guage
|
