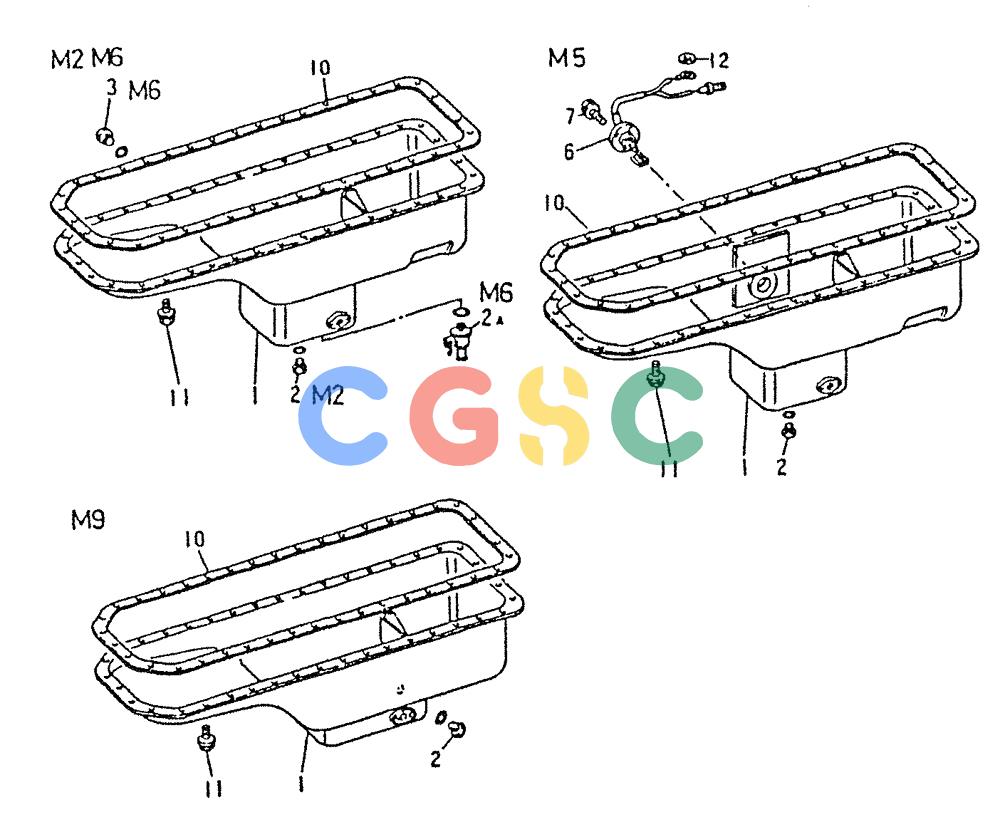

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-003) - OIL PAN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
319 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME058106 | [1] | ENGINE OIL PAN | KOBM2 & M6 ONLY Superseded by part number: ME058105 |
| . . | VAME058241 | [1] | SUMP | KOBM5 ONLY |
| . . | VAME058206 | [1] | M9 ONLY | |
| 2. | VAMH037126 | [1] | PLUG,18mm OD x 1.5 Thd Pitch | KOBPLUG, DRAIN, M2, M5 & M9 ONLY |
| . . | VAMH035018 | [1] | GASKET | KOBGASKET 18, M2, M5 & M9 ONLY |
| 2A. | VAME058285 | [1] | COCK | KOBM6 ONLY |
| 3. | VAMF665007 | [1] | SCREW | KOBSCREW, M6 ONLY |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20, M6 ONLY Superseded by part number: VAF420220000 |
| 6. | VAMC840577 | [1] | SWITCH | KOBLEVEL, M5 ONLY |
| 7. | VAMF140002 | [3] | SCREW | KOBBOLT, FLANGE 6X12 |
| 10. | VAME052497 | [1] | GASKET | KOB Superseded by part number: VAME150050 |
| 11. | VAMH000931 | [37] | BOLT | KOBBOLT, FLANGE 10X18 Superseded by part number: 132361A1 |
| . . | VAMF303363 | [2] | SPECIAL WASHER | KOBBOLT, W/WSR 10X25 Superseded by part number: 132364A1 |
| 12. | VAMF450006 | [1] | NUT | KOBWASHER, PLAIN 10, M5 ONLY Superseded by part number: 133247A1 |
