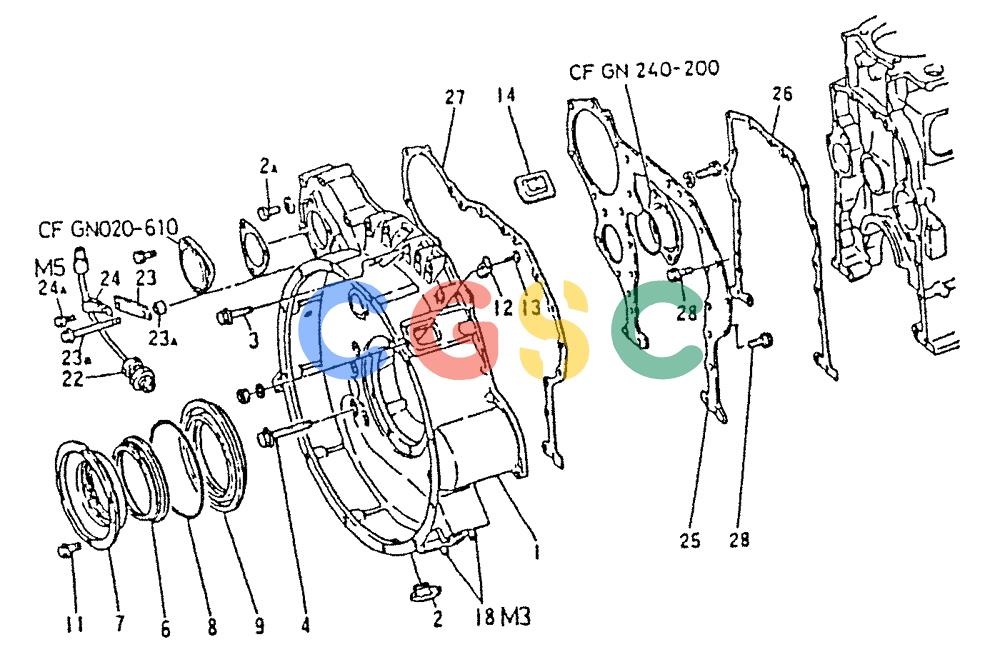

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-004) - FLYWHEEL HOUSING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
836 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME052816 | [1] | HOUSING, F/W, M0 ONLY | |
| . . | VAME157013 | [1] | M3 ONLY | |
| . . | VAME157016 | [1] | HOUSING, FLYWHEEL FOR M5 ONLY | HOUSING, FLYWHEEL FOR M5 ONLY |
| 2. | VA3091201400 | [1] | PLUG | KOBPLUG, DUST Superseded by part number: 132428A1 |
| 2A. | VAM0001300 | [1] | PLUG | KOBPLUG |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
| 3. | VAMH000925 | [5] | BOLT | KOBBOLT, FLANGE 12X60 |
| 4. | VAMH000927 | [8] | BOLT,FLANGE 12X90 | |
| 6. | VA3121233300 | [1] | OIL SEAL | KOBOILSEAL Superseded by part number: 132459A1 |
| 7. | VAME052550 | [1] | RETAINER | KOBOILSEAL Superseded by part number: 132426A1 |
| 8. | VA3111203902 | [1] | O-RING | KOBO-RING Superseded by part number: 132432A1 |
| 9. | VA3092020100 | [1] | SLINGER | KOBSLINGER, OIL SEAL Superseded by part number: 132456A1 |
| 11. | VAMF140221 | [4] | BOLT | KOBBOLT, FLANGE 8X12 |
| 12. | VAME061699 | [1] | POINTER | KOB Superseded by part number: 132414A1 |
| 13. | VAMF100031 | [1] | BOLT | KOBBOLT 6X25 |
| . . | VAMF430004 | [1] | NUT | KOBNUT 6 Superseded by part number: 132434A1 |
| . . | VAMF450404 | [1] | WASHER | KOBWASHER, SPG 6 Superseded by part number: 132427A1 |
| 14. | VA3121202300 | [1] | COVER | KOBCOVER, POINTER Superseded by part number: 132403A1 |
| 18. | VAMF472406 | [4] | PIN | KOBPIN, DOWEL 12, M3 ONLY |
| 22. | VAMC845235 | [1] | SENDER UNIT | KOBSENSOR, SPEED, M5 ONLY Superseded by part number: 240067A1 |
| 23. | VAMH023121 | [1] | HOUSING | SMSTAY, M5 ONLY |
| 23A. | VA3123005900 | [1] | SPACER | SMSPACER, L=10, M5 ONLY |
| 23B. | VAMH000871 | [1] | FLANGE BOLT | SMBOLT, FLANGE 10X100, M5 ONLY |
| 24. | VAMT188460 | [1] | CLIP, M5 ONLY | |
| 24A. | VAMH000999 | [1] | BOLT | KOBBOLT, FLANGE 6X12, M5 ONLY |
| 25. | VAME052661 | [1] | PLATE | KOBPLATE, RE Superseded by part number: 132413A1 |
| 26. | VAME052671 | [1] | GASKET | KOBCASE-RE PLATE Superseded by part number: 132407A1 |
| 27. | VAME052672 | [1] | GASKET | KOBRE PLATE-F/W HOUSING Superseded by part number: 132409A1 |
| 28. | VAMF300866 | [9] | BOLT BOLT, W/WSR 12X25 | BOLT BOLT, W/WSR 12X25 |
