纽荷兰零件查询(CV700) - VIBRATORY ROLLER (9/01-) (12-022-07[01]) - AIR CONDITIONING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
429 次

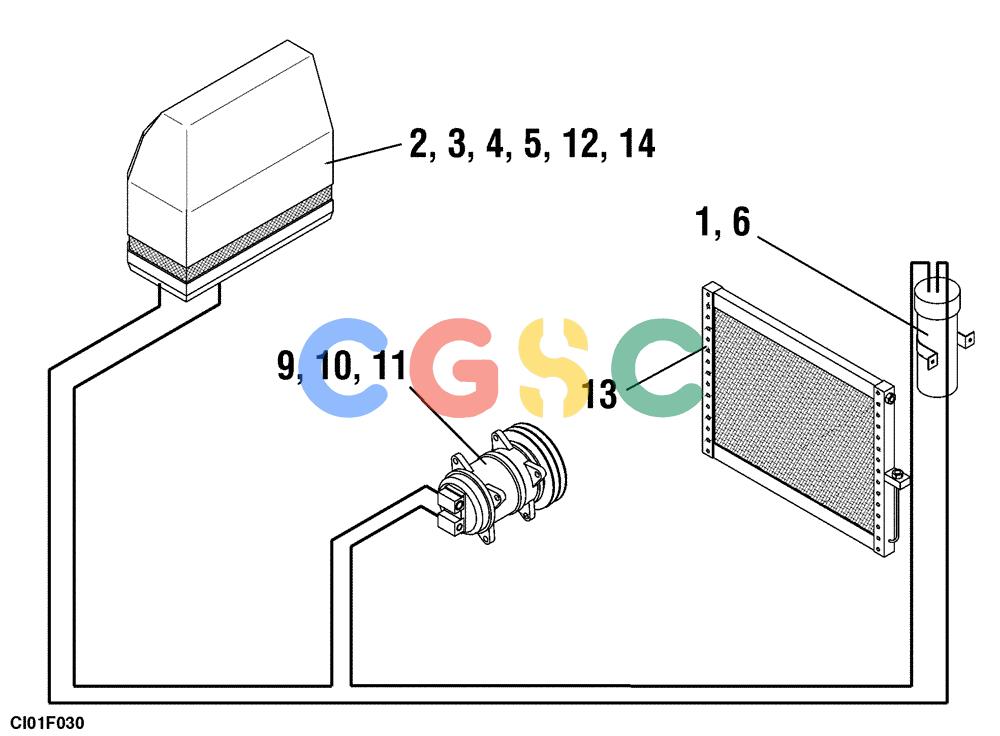

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND102296 | [1] | RECEIVER-DRIER | STA |
| 2. | ND102291 | [1] | SWITCH | STA |
| 3. | ND102290 | [1] | THERMOSTAT | STA |
| 4. | ND102288 | [1] | HYDRAULIC VALVE | STA |
| 5. | ND102289 | [1] | FAN | STA |
| 6. | ND102297 | [1] | PRESSURE SWITCH | STA |
| 9. | ND102286 | [1] | AIRCOND. COMPRESSOR | STA |
| 10. | ND102295 | [1] | PULLEY | STA |
| 11. | ND102294 | [1] | COIL | STA |
| 12. | ND102287 | [1] | HEAT EXCHANGER | STA |
| 13. | ND102293 | [1] | CONDENSER | STA |
| 14. | ND102292 | [2] | BANJO BOLT | STA |
