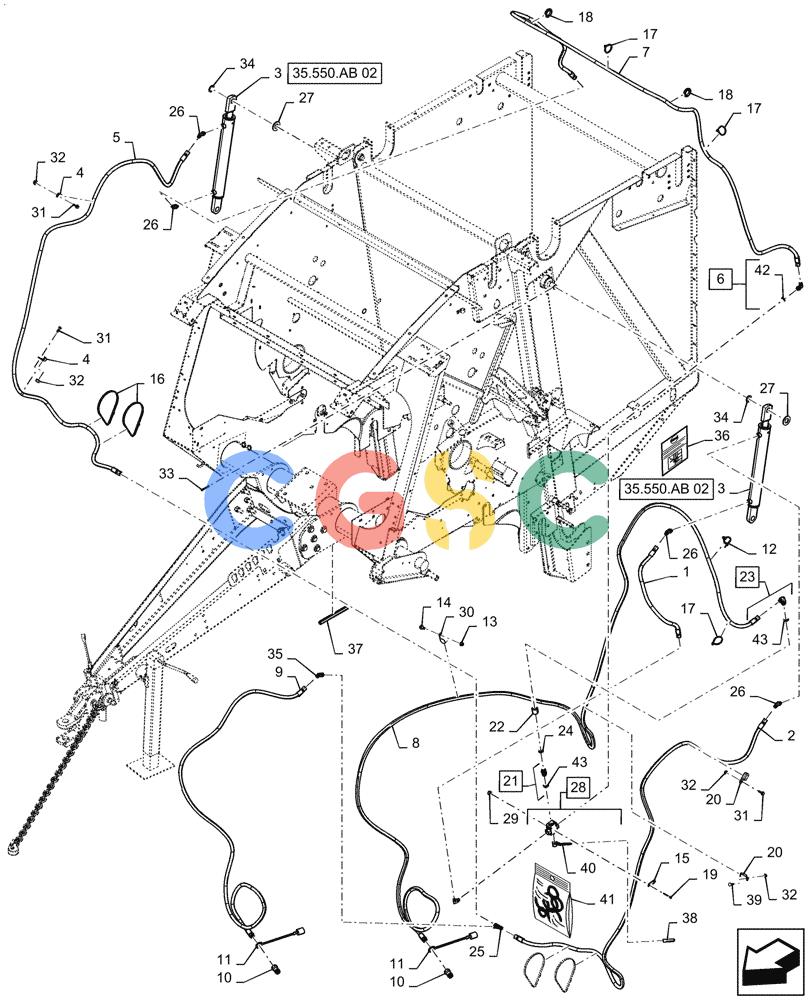

| 1. |
84494122
|
[1] |
HYDRAULIC HOSE
|
NH
30" Long, SAE -8, Female 37° JIC Fittings, 9/16"-18
|
| 2. |
47483745
|
[1] |
HOSE
|
NH
144" Long, SAE -6, Female 37° JIC Fittings, 9/16"-18
|
| 3. |
87517397
|
[2] |
HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 373.38mm Stroke
|
PA
Tailgate Lift
|
| 4. |
711051
|
[3] |
CLAMP
|
WIN
Superseded by part number: 9706732
|
| 5. |
47483714
|
[1] |
HOSE
|
NH
157" Long, SAE -6, Female 37° JIC Fittings, 9/16"-18
|
| 6. |
76344
|
[1] |
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
|
NH
Incl 42
|
| 7. |
47483710
|
[1] |
HOSE
|
NH
137" Long, SAE -6, Female 37° JIC Fittings, 9/16"-18
|
| 8. |
47665564
|
[1] |
HYDRAULIC HOSE
|
NH
264" Long, SAE -8, Female 37° JIC Fittings, 3/4" -16 & 1/2"-14 Male NPT
|
| 9. |
84419297
|
[1] |
HYDRAULIC HOSE,9.53mm ID x 3048mm L, SAE 100R17
|
PLO
120" Long, SAE -8, Female 37° JIC Fittings, 3/4" -16 & 1/2"-14 Male NPT
|
| 10. |
9801618
|
[2] |
QUICK MALE COUPLING,1/2" - 14
|
NH
Superseded by part number: 9412
|
| 11. |
86621124
|
[2] |
DUST CAP
|
NH
Black
|
| 12. |
84292754
|
[2] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
| 13. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 14. |
86050286
|
[2] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 15. |
84416929
|
[1] |
PLATE
|
PLO
|
| 16. |
87034173
|
[4] |
CABLE TIE,774.7mm L
|
PA
Superseded by part number: 529070
|
| 17. |
86566989
|
[14] |
CABLE TIE,208mm L
|
ZED
|
| 18. |
NH291525
|
[1] |
EDGE
|
NH
Superseded by part number: 86516805
|
| 19. |
120056
|
[2] |
BOLT,M6 x 1.0 x 54.15mm, Cl 8.8
|
NH
|
| 20. |
578070
|
[5] |
CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 21. |
259619
|
[1] |
HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB
|
WIN
Union, Straight Thread 3/4"-16, Incl 43 Superseded by part number: 87412765
|
| 22. |
592188
|
[1] |
COUPLING
|
GI
Superseded by part number: 86635143
|
| 23. |
76347
|
[1] |
ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB
|
NH
Incl 43 Superseded by part number: 87329788
|
| 24. |
86517438
|
[1] |
ORIFICE
|
NH
Plate
|
| 25. |
86513104
|
[1] |
TEE,9/16"-18, 37 Degree, Blkhd
|
WIN
|
| 26. |
330346
|
[5] |
45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
|
NH
|
| 27. |
87367
|
[2] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 28. |
84606149
|
[1] |
VALVE WITH LEVER
|
NH
Incl 40, 41
|
| 29. |
353308
|
[1] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 30. |
86628564
|
[2] |
CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type
|
ZED
Superseded by part number: 515-23317
|
| 31. |
9671714
|
[4] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 32. |
9804277
|
[8] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 33. |
87399
|
[2] |
COTTER PIN,1/2 x 3 Bolt
|
GI
|
| 34. |
26402
|
[2] |
WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk
|
NH
|
| 35. |
86512959
|
[1] |
45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
|
GI
|
| 36. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
WARNING Decal
|
| 37. |
87490545
|
[1] |
PROTECTION STRIP
|
ZED
|
| 38. |
47576842
|
[1] |
HANDLE GRIP
|
NH
|
| 39. |
308761
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 40. |
47382486
|
[1] |
VALVE LEVER
|
NH
|
| 41. |
47382510
|
[1] |
SEAL KIT
|
NH
|
| 42. |
9617873
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
| 43. |
128825
|
[3] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
|
