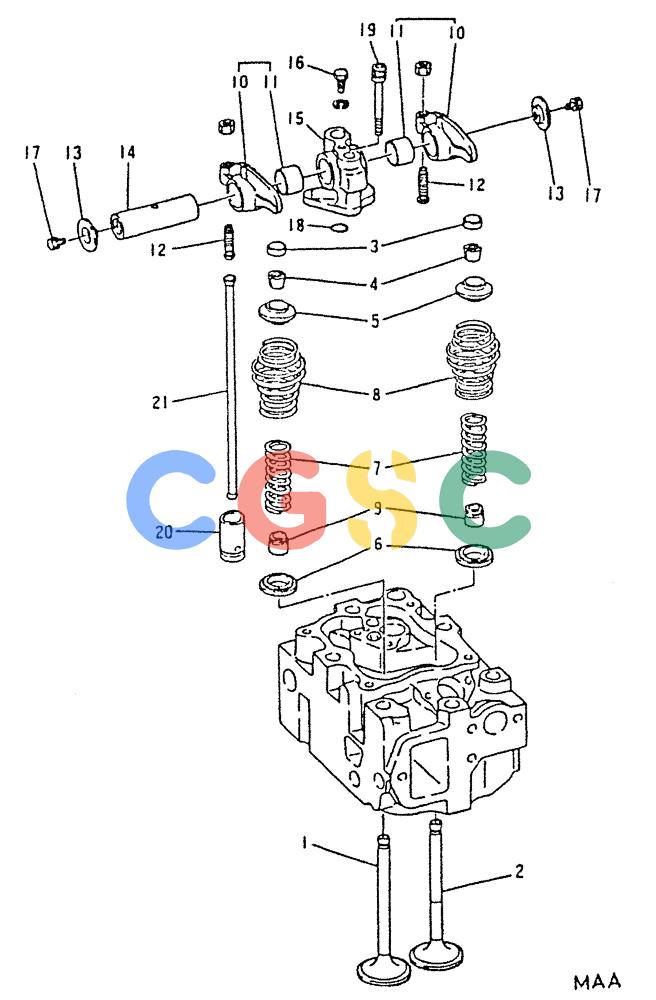

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-016) - VALVE GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
439 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME051063 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE Superseded by part number: 132517A1 |
| 2. | VAME051567 | [6] | VALVE EXH | VALVE EXH |
| 3. | VA3000424302 | [12] | CAP | KOBVALVE Superseded by part number: 132504A1 |
| 4. | VA3120434200 | [24] | COTTER PIN | KOBCOTTER,VALVE, AVAILABLE IN SET WITH PAIR Superseded by part number: 132527A1 |
| 5. | VAME051410 | [12] | RETAINER | KOBRETAINER, UPPER Superseded by part number: 87435751 |
| 6. | VAME051083 | [12] | RETAINER | KOBLOWER Superseded by part number: 132518A1 |
| 7. | VAME061398 | [12] | SPRING | KOBVALVE INNER Superseded by part number: 132520A1 |
| 8. | VAME051208 | [12] | SPRING | KOBVALVE OUTER Superseded by part number: 132522A1 |
| 9. | VAME061574 | [12] | SEAL | KOBVALVE STEM Superseded by part number: 87420706 |
| 10-11. | VAME051051 | [12] | ROCKER ARM | KOB Superseded by part number: 132514A1 |
| 10. | NSS | [12] | NOT SOLD SEPARAT | CONROCKER |
| 11. | VA3090402200 | [12] | BUSHING | KOBBUSHING, ROCKER Superseded by part number: 132505A1 |
| 12. | VAME051584 | [12] | SCREW | KOBADJUSTING Superseded by part number: 77269294, 132503A1 |
| . . | VAMF430122 | [12] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| 13. | VA3090401600 | [12] | THRUST PLATE | KOBTHRUST Superseded by part number: 132512A1 |
| 14. | VA3090400801 | [6] | SHAFT | KOBSHAFT, ROCKER |
| 15. | VA3090410702 | [6] | ROCKER ARM | KOBBRACKET, ROCKER SHAFT Superseded by part number: 132511A1 |
| 16. | VA3090400900 | [6] | SCREW | KOBSCREW, SET |
| . . | VAMF450405 | [6] | WASHER | KOBWASHER, SPG 8 Superseded by part number: 132502A1 |
| 17. | VAMF140201 | [12] | SCREW | KOBBOLT, FLANGE 6X8 |
| 18. | VAMH035135 | [6] | O-RING | KOBO-RING Superseded by part number: 132508A1 |
| 19. | VAMH000888 | [6] | SCREW | KOBBOLT |
| 20. | VAME061021 | [12] | TAPPET | KOB Superseded by part number: 132498A1 |
| 21. | VAME051180 | [12] | PUSH ROD | KOB Superseded by part number: 132513A1 |
