神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-017) - INLET MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
338 次

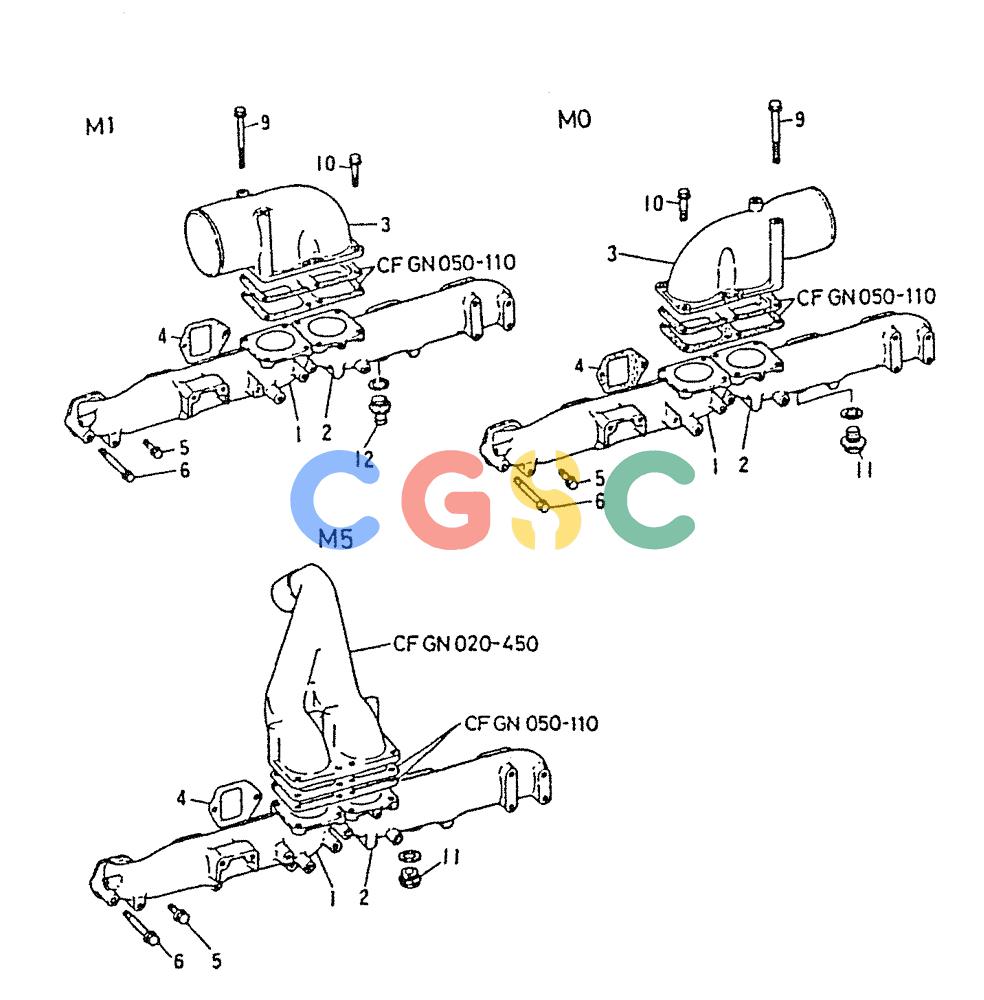

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME050717 | [1] | MANIFOLD, INLET FR | |
| 2. | VAME058608 | [1] | MANIFOLD INLET RE | MANIFOLD INLET RE |
| 3. | VAME058533 | [1] | INLET MANIFOLD M0 & M1 ONLY | INLET MANIFOLD M0 & M1 ONLY |
| 4. | VA3093000501 | [6] | GASKET | KOBINLET MANIF Superseded by part number: 134855A1 |
| 5. | VAMH000714 | [6] | BOLT | KOBBOLT, FLANGE 10X25 |
| 6. | VAMH000732 | [6] | SCREW | KOBBOLT, FLANGE 10X95 Superseded by part number: 134859A1 |
| 9. | VAMH001419 | [2] | BOLT, FLANGE 10X190, M0 & M1 ONLY | |
| 10. | VAMH000716 | [6] | BOLT | KOBBOLT, FLANGE 10X55 , M0 & M1 ONLY |
| 11. | VAMH037723 | [1] | PLUG | KOBPLUG, M0 & M5 ONLY |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27, M0 & M5 ONLY |
| 12. | VAMH037397 | [1] | HYD CONNECTOR | KOBCONNECTOR, M1 ONLY Superseded by part number: 240084A1 |
