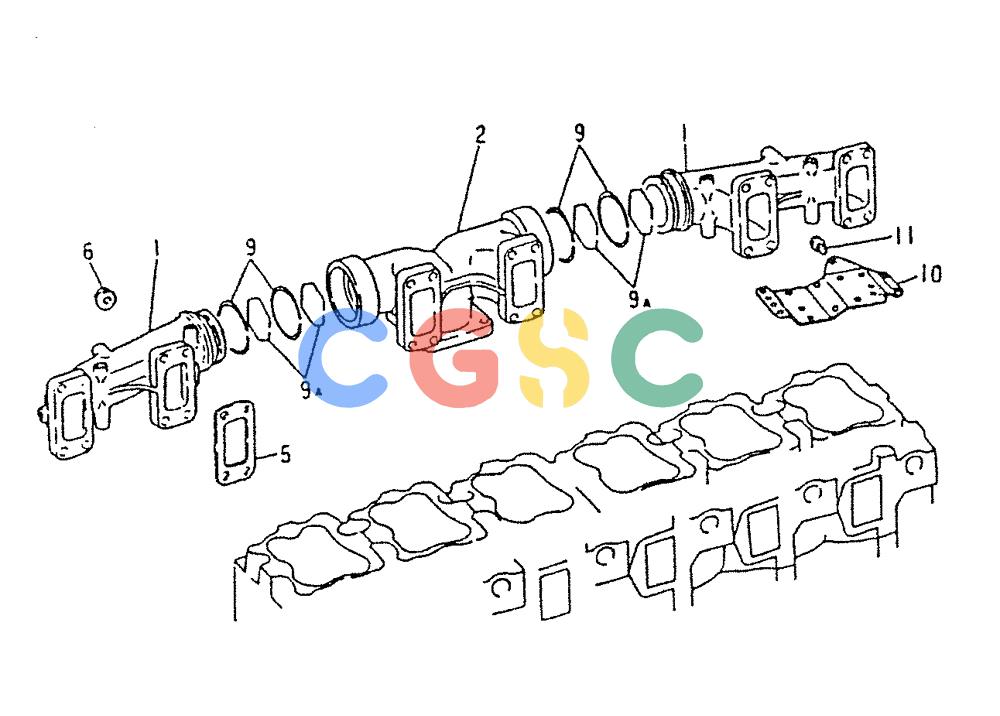

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-018) - EXHAUST MANIFOLD 020-440A Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME053868 | [2] | EXH.MANIFOLD | EXH.MANIFOLD |
| 2. | VAME050574 | [1] | MANIFOLD, EXH CTR | |
| 5. | VAME053112 | [6] | GASKET | KOBEXH MANIF Superseded by part number: 134861A1 |
| 6. | VAMH004054 | [24] | NUT | KOBFLANGE 10 Superseded by part number: 134868A1 |
| 9. | VAME053762 | [4] | SEAL RETAINER | KOBEXH MANIF |
| 9A. | VAME053763 | [4] | RING | KOB |
| 10. | VAME053834 | [1] | FOAM INSULATION | KOBHEAT Superseded by part number: 134862A1 |
| 11. | VAMH000392 | [3] | BOLT | KOBBOLT, W/WSR 8X12 |
