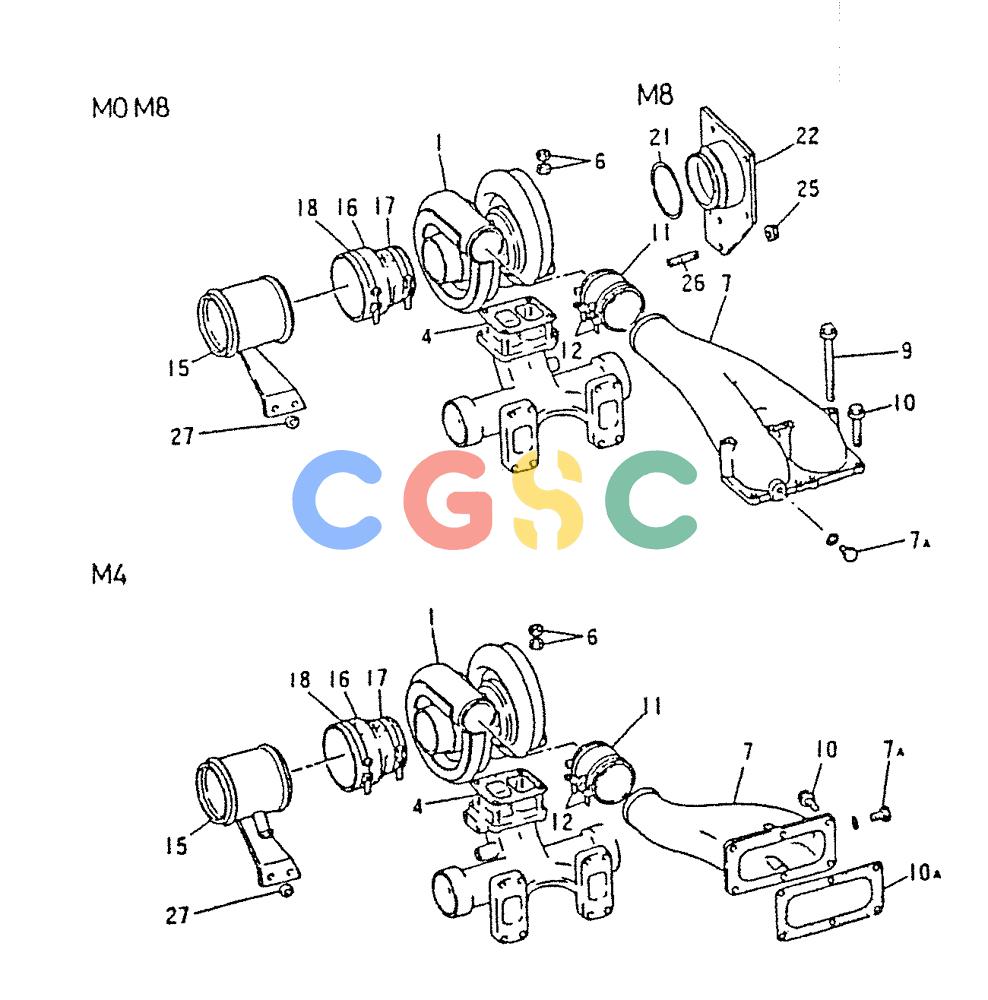

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-020) - TURBO CHARGER GENERAL 020-450J Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
896 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME157215 | [1] | TURBOCHARGER | KOBTD08-22D, Serial Range: GN020-GN451D |
| 4. | VA3003291200 | [1] | GASKET | KOBGASKET Superseded by part number: VAME150877 |
| 6. | VAMH004110 | [8] | NUT | KOBNUT 10 Superseded by part number: 134957A1 |
| 7. | VAME050758 | [1] | AIR CONTROL PIPE, INLET, M0 & M8 ONLY | AIR CONTROL PIPE, INLET, M0 & M8 ONLY |
| . . | VAME050578 | [1] | PIPE, ELBOW M1 ONLY | PIPE, ELBOW M1 ONLY |
| 7A. | VAME031088 | [1] | PLUG | KOB |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 9. | VAMH000529 | [4] | BOLT, FLANGE 10X120, M0 & M8 ONLY | |
| 10. | VAMH000716 | [4] | BOLT | KOBBOLT, FLANGE 10X55, M0 & M8 ONLY |
| . . | VAMF140225 | [6] | BOLT | KOBBOLT, FLANGE 8X20, M4 ONLY |
| 10A. | VAME058686 | [1] | GASKET | KOBM4 ONLY |
| 11. | VAME053870 | [1] | HOSE | KOBRUBBER L=65 Superseded by part number: 134958A1 |
| 12. | VAMH021370 | [2] | CLAMP | KOBCLAMP, HOSE Superseded by part number: 134981A1 |
| 15. | VAME050792 | [1] | COUPLING | KOBM0 & M8 ONLY |
| . . | VAME050765 | [1] | COUPLING | KOBM4 ONLY |
| 16. | VAME157027 | [1] | HOSE | KOBRUBBER Superseded by part number: 134959A1 |
| 17. | VA3123011830 | [1] | CLAMP | KOBHOSE Superseded by part number: 134980A1 |
| 18. | VA3123011840 | [1] | CLAMP | KOBHOSE Superseded by part number: 134979A1 |
| 21. | VAME063946 | [1] | SEAL RETAINER | KOBRING, M8 ONLY Superseded by part number: 134995A1 |
| 22. | VAME050520 | [1] | COUPLER, EXH, M8 ONLY | |
| 25. | VAMH004054 | [3] | NUT | KOBFLANGE 10, M8 ONLY Superseded by part number: 134868A1 |
| 26. | VAMF407726 | [3] | STUD | KOBSTUD 10X25, M8 ONLY |
| 27. | VAMH005027 | [2] | WASHER | KOBWASHER |
