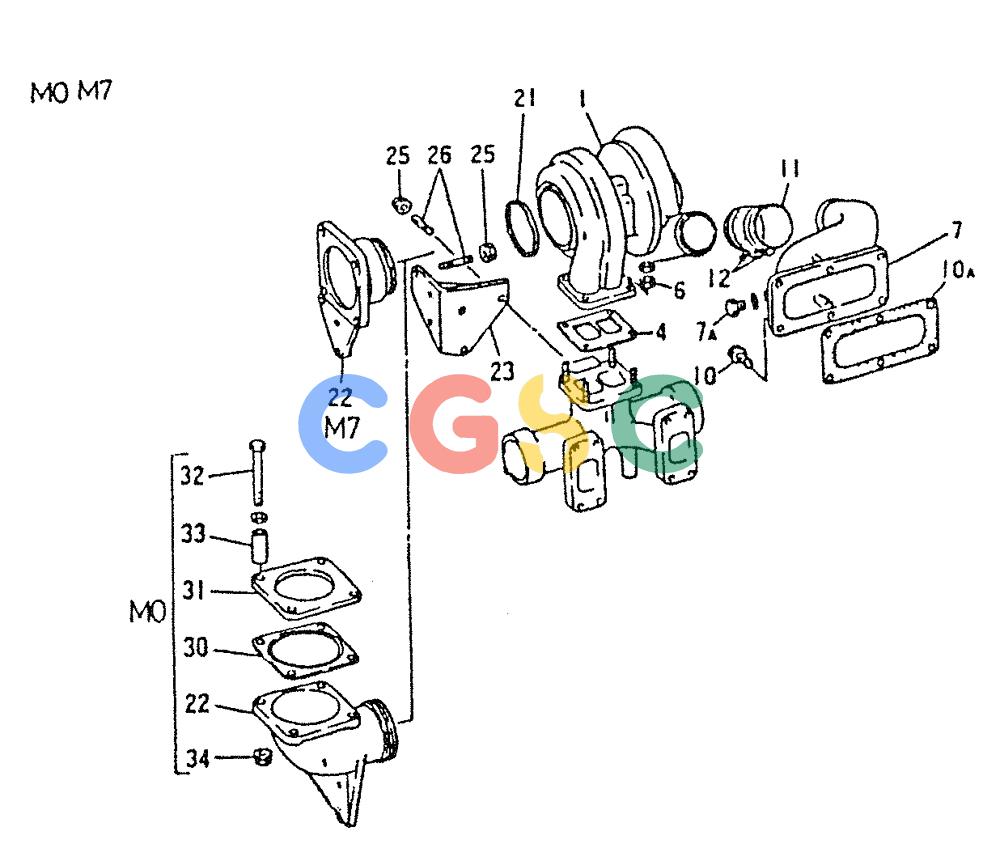

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-021) - TURBO CHARGER GENERAL 020-450L Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME157213 | [1] | TURBOCHARGER ASSY, TD08-22D GN020, Serial Range: -GN451D | |
| 4. | VA3003291200 | [1] | GASKET | KOBGASKET Superseded by part number: VAME150877 |
| 6. | VAMH004110 | [8] | NUT | KOBNUT 10 Superseded by part number: 134957A1 |
| 7. | VAME050586 | [1] | PIPE, INLET | |
| 7A. | VAME031088 | [1] | PLUG | KOB |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 10. | VAMF140225 | [6] | BOLT | KOBBOLT, FLANGE 8X20 |
| 10 A. | VAME058686 | [1] | GASKET | KOB |
| 11. | VAME053870 | [1] | HOSE | KOBRUBBER L=65 Superseded by part number: 134958A1 |
| 12. | VAMH021370 | [2] | CLAMP | KOBCLAMP, HOSE Superseded by part number: 134981A1 |
| 21. | VAME063946 | [1] | SEAL RETAINER | KOBRING Superseded by part number: 134995A1 |
| 22. | VAME050782 | [1] | COUPLER, EXH, M0 ONLY | |
| . . | VAME050525 | [1] | M7 ONLY | |
| 23. | VAME053566 | [1] | SUPPORT, EXH COUPLER | |
| 25. | VAMH004054 | [6] | NUT | KOBFLANGE 10 Superseded by part number: 134868A1 |
| 26. | VAMF407726 | [6] | STUD | KOBSTUD 10X25 |
| 30. | VAME063680 | [1] | GASKET | KOBM0 ONLY |
| 31. | VA1286637500 | [1] | FLANGE FLANGE, EXH PIPE, M0 ONLY | FLANGE FLANGE, EXH PIPE, M0 ONLY |
| 32. | VAMH000679 | [4] | SCREW | KOBBOLT 12X85, M0 ONLY |
| . . | VAMF450007 | [4] | WASHER | KOBWASHER, PLAIN 12, M0 ONLY Superseded by part number: 132624A1 |
| 33. | VAME920000 | [4] | SPACER | KOBL=40, M0 ONLY |
| 34. | VAMH004073 | [4] | NUT | KOBNUT, SELF LOCK FLANGE 12, M0 ONLY |
