纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (03-001-00[01]) - FUEL SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
154 次

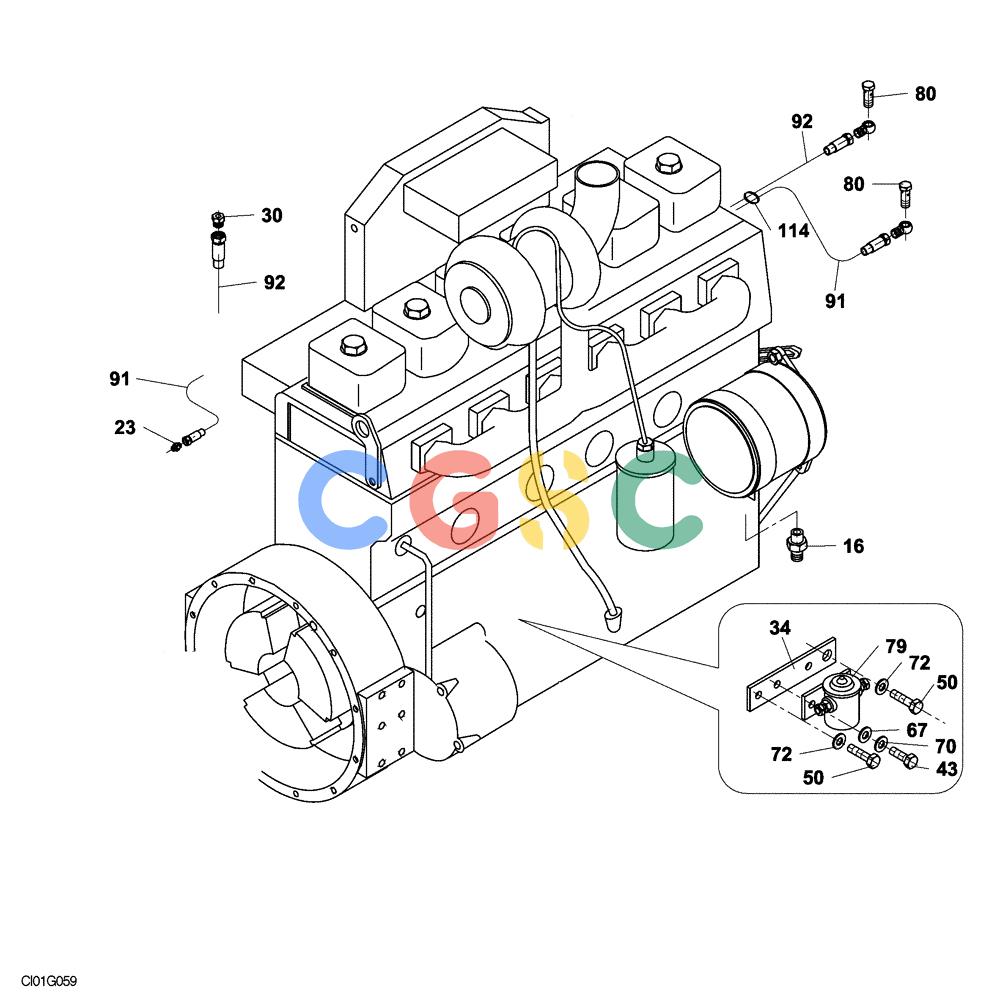

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 16. | ND028169 | [1] | HYD CONNECTOR | STA |
| 23. | ND062207 | [1] | HYD CONNECTOR | STA |
| 30. | ND053059 | [1] | HYD CONNECTOR | STA |
| 34. | ND002463 | [1] | SUPPORT | STA |
| 43. | ND021293 | [2] | BOLT | STAM8 x 16 |
| 50. | ND021309 | [1] | BOLT | STAM12 x 25 |
| 67. | ND029249 | [2] | WASHER | STAID 8,4 |
| 70. | ND035940 | [1] | SPRING WASHER | STAID 8 |
| 72. | ND035942 | [2] | WASHER | STAID 12 |
| 79. | ND091347 | [1] | RELAY | STA24V Superseded by part number: ND146564, ND146565 |
| 80. | ND062457 | [2] | BOLT | STAIncludes Bolt, Banjo Fitting, and Sealing Washer |
| 91. | ND101575 | [1] | FLEXIBLE HOSE | STA1550mm |
| 92. | ND061353 | [1] | FLEXIBLE HOSE | STA2200mm |
| 114. | ND078445 | [5] | SECURING STRAP | STA200mm |
