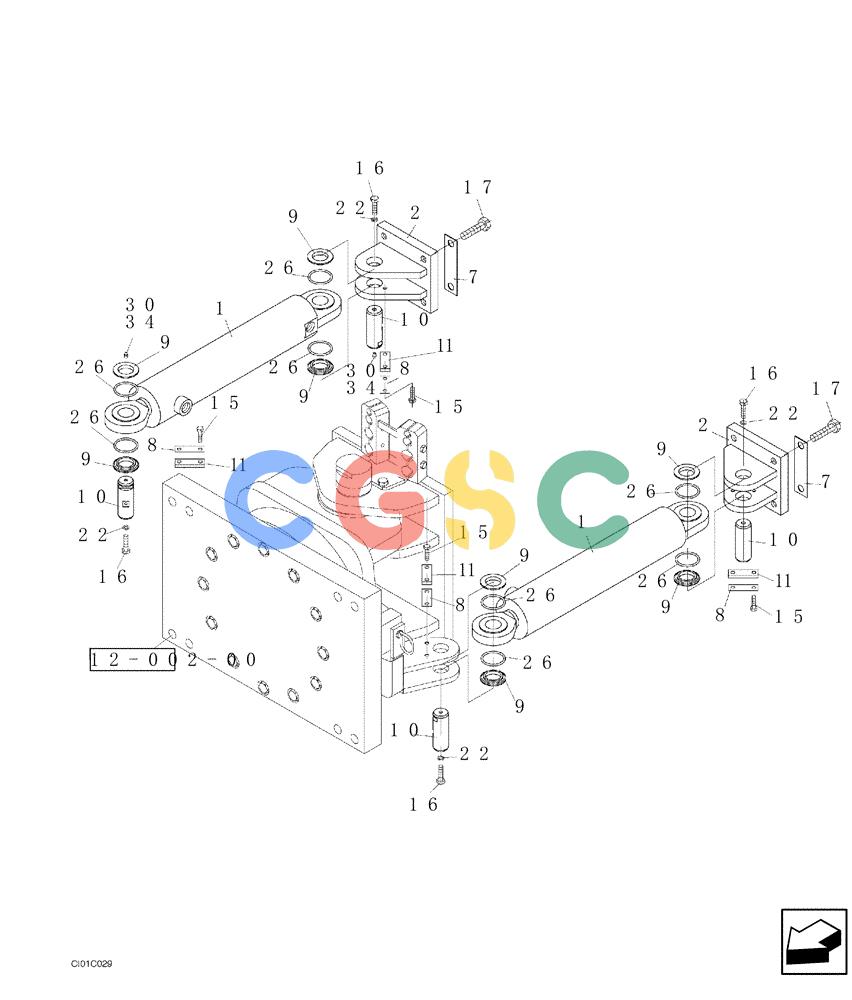

纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (06-004-00[01]) - STEERING CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104290 | [2] | CYLINDER | STA |
| 2. | ND104334 | [2] | SUPPORT | STA |
| 7. | ND104391 | [4] | WASHER | STA90 x 80 x 12,5 |
| 8. | ND104393 | [4] | COVER PLATE | STA |
| 9. | ND104390 | [8] | RING | STA |
| 10. | ND104333 | [4] | PIN | STA |
| 11. | ND104392 | [4] | BLOCK | STA |
| 15. | ND021301 | [8] | BOLT | STAM10 x 20 |
| 16. | ND021308 | [4] | BOLT | STAM12 x 20 |
| 17. | ND021329 | [8] | BOLT | STAM16 x 30 |
| 22. | ND029311 | [4] | WASHER | STAID 12,2 |
| 26. | ND079805 | [8] | O-RING | STA |
| 30. | ND064758 | [4] | PLUG | STA |
| 34. | ND070133 | [4] | LUBE NIPPLE,M10 x 1 | STA |
