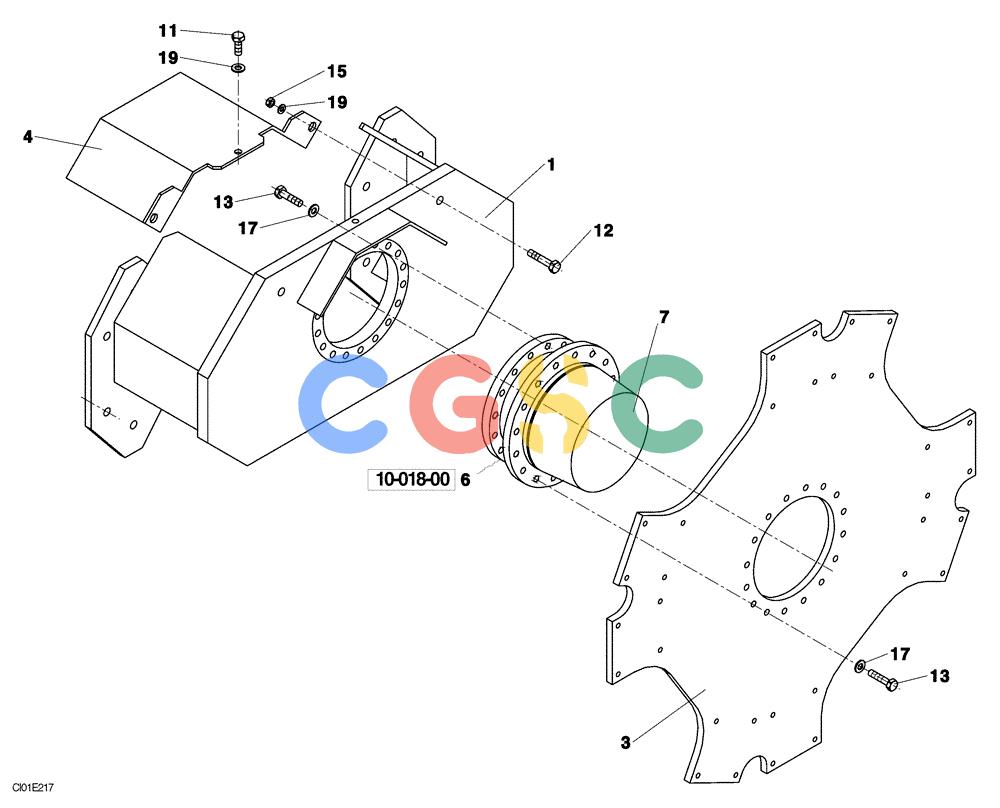

纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (07-001-00[01]) - TRANSMISSION - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
278 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104286 | [1] | SUPPORT | STA |
| 3. | ND104287 | [1] | PLATE | STA |
| 4. | ND104414 | [1] | COVER | STA |
| 6. | ND090942 | [1] | HYDRAULIC MOTOR | STA |
| 7. | ND101766 | [1] | REDUCER | STA |
| 11. | ND021308 | [1] | BOLT | STAM16 x 20 |
| 12. | ND021312 | [2] | BOLT | STAM12 x 40 |
| 13. | ND021332 | [36] | BOLT | STAM20 x 45 |
| 15. | ND021850 | [2] | NUT | STAM12 |
| 17. | ND035943 | [36] | WASHER | STAID 16 |
| 19. | ND035942 | [3] | WASHER | STAID 12 |
