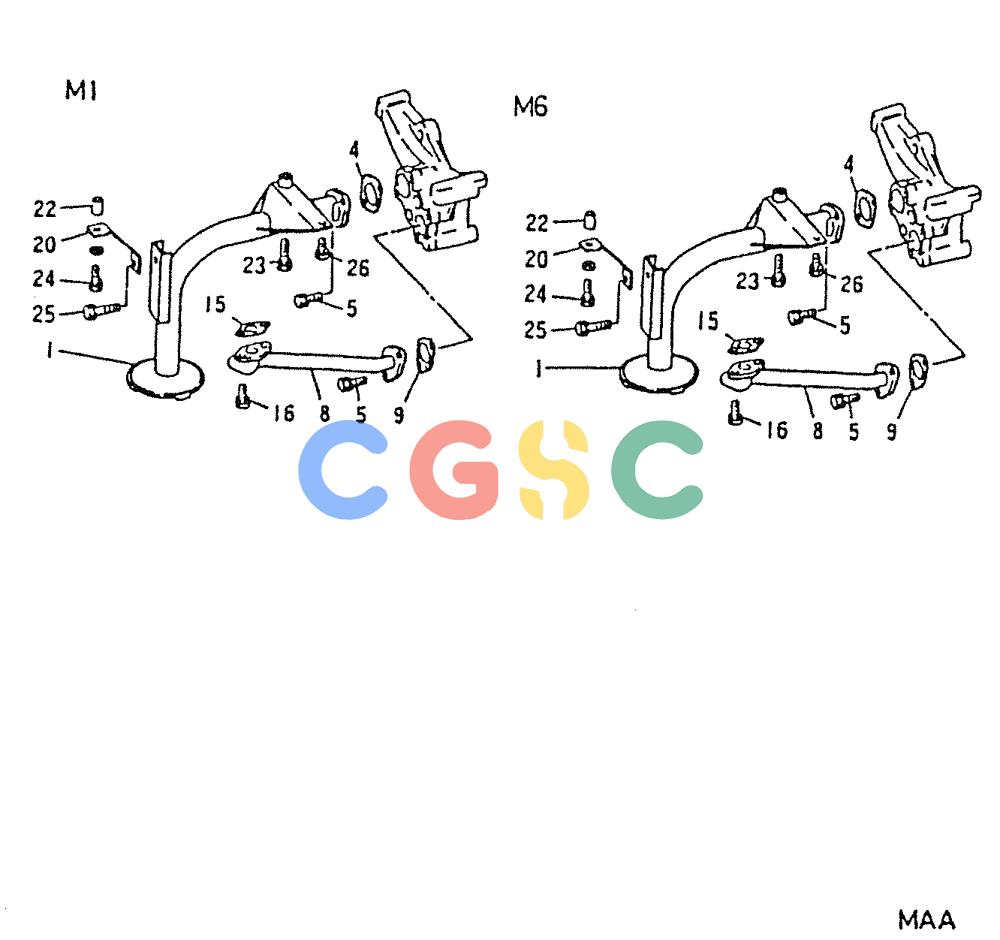

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (02-012) - OIL STRAINER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME058912 | [1] | STRAINER ELEMENT | KOBM1 ONLY |
| . . | VAME058941 | [1] | M2 ONLY | |
| 4. | VA3123674200 | [1] | GASKET | KOBGASKET, OIL STRAINER Superseded by part number: 133244A1 |
| 5. | VAMF300850 | [4] | BOLT | KOBBOLT, W/WSR 10X45 |
| 8. | VAME054171 | [1] | PIPE | KOB Superseded by part number: 133236A1 |
| 9. | VA3123674300 | [1] | GASKET | KOBGASKET Superseded by part number: 133246A1 |
| 15. | VA3093601200 | [1] | GASKET | KOBGASKET Superseded by part number: 133246A1 |
| 16. | VAMF300843 | [2] | SCREW | KOBBOLT, W/WSR 10X25 Superseded by part number: 133250A1 |
| 20. | VAME058803 | [1] | STAY | KOB |
| 22. | VAME920002 | [1] | SPACER L=28 | SPACER L=28 |
| 23. | VAMF303367 | [1] | BOLT | SMBOLT, W/WSR 10X35 |
| 24. | VAMF300850 | [1] | BOLT | KOBBOLT, W/WSR 10X45 |
| . . | VAMF450006 | [1] | NUT | KOBWASHER, PLAIN 10 Superseded by part number: 133247A1 |
| 25. | VAMF244878 | [1] | BOLT BOLT, W/WSR 10X20 | BOLT BOLT, W/WSR 10X20 |
| 26. | VAMF303361 | [1] | BOLT | KOBBOLT, W/WSR 10X20 |
