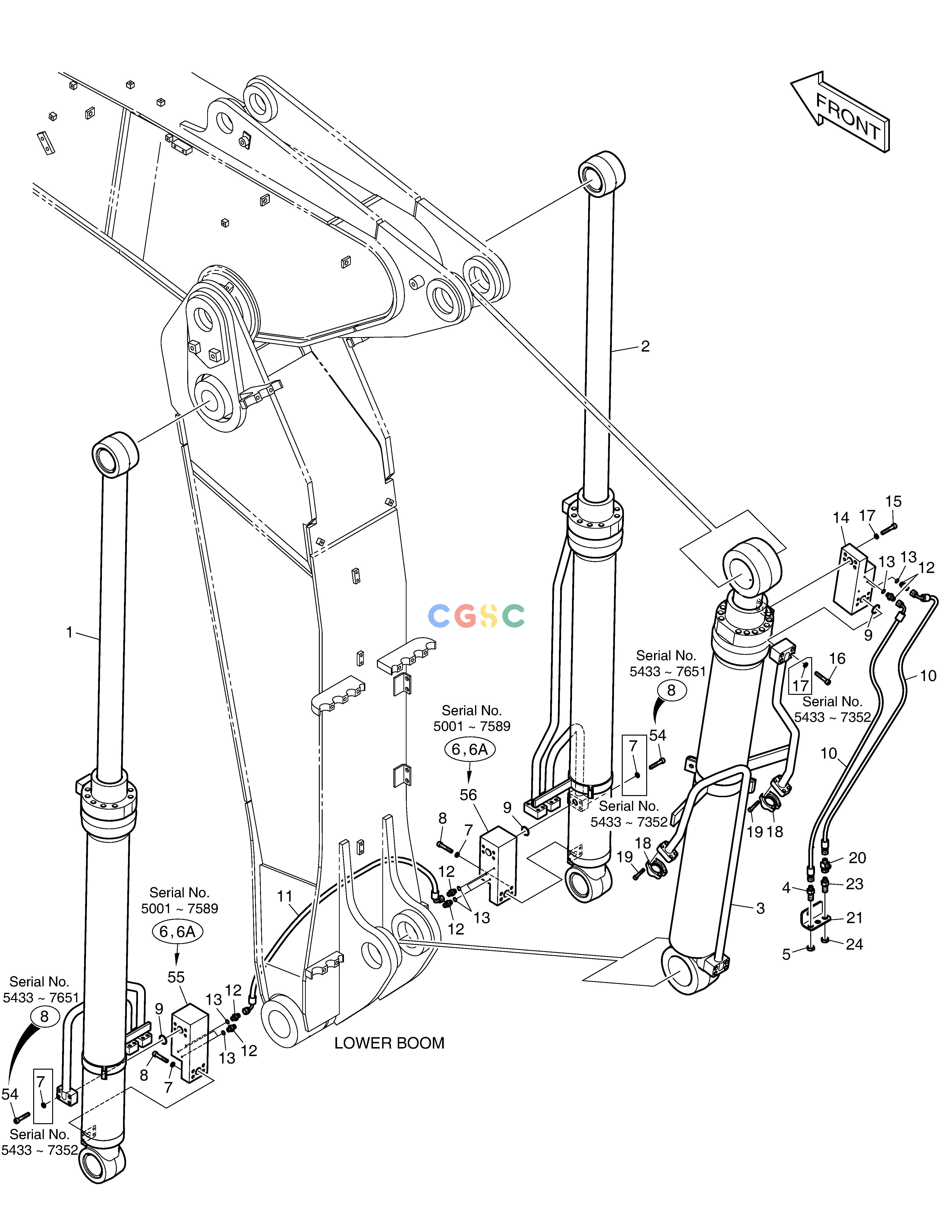

斗山零件查询ARTI.BOOM PIPING - LOCK VALVE DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1023864C
|
[-] |
ARTI BOOM PIPING;LOCK VALVE
|
|
| 1. |
400309-01038
|
[1] |
|
|
| 1. |
400309-00345E
|
[1] |
|
|
| 1. |
K1001218A
|
[1] |
CYLINDER;BOOM(L.H)
|
|
| 10. |
2184-1046D117
|
[2] |
HOSE PF1/4-1700L
|
|
| 11. |
DS2059383
|
[1] |
HOSE PF1/4-800L
|
|
| 12. |
2181-1126D14
|
[8] |
ADAPTER
|
|
| 13. |
S8000111
|
[8] |
O-RING
|
|
| 14. |
420-00004A
|
[1] |
VALVE;LOCK
|
|
| 15. |
S2215766
|
[4] |
BOLT
|
|
| 16. |
S2215866
|
[4] |
BOLT;SOCKET M12X1.75X60
|
|
| 16. |
S2215666
|
[4] |
BOLT;SOCKET
|
|
| 17. |
S5110703
|
[8] |
WASHER
|
|
| 17. |
S5110703
|
[4] |
WASHER
|
|
| 18. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 19. |
S2212466
|
[8] |
BOLT
|
|
| 2. |
400309-01040
|
[1] |
|
|
| 2. |
400309-00347E
|
[1] |
|
|
| 2. |
K1001219A
|
[1] |
CYLINDER;BOOM(R.H)
|
|
| 20. |
181-00673D1
|
[1] |
TEE;UNION
|
|
| 21. |
K1018440
|
[1] |
PLATE
|
|
| 23. |
181-00078D5
|
[1] |
ADAPTER
|
|
| 24. |
121-00010D1
|
[1] |
NUT
|
|
| 3. |
400306-00182
|
[1] |
|
|
| 3. |
400306-00182A
|
[1] |
|
|
| 3. |
K1023537A
|
[1] |
CYLINDER;ARTI BOOM
|
|
| 4. |
181-00078D5
|
[2] |
ADAPTER
|
|
| 5. |
121-00010D1
|
[2] |
NUT
|
|
| 54. |
S2212366
|
[8] |
BOLT
|
|
| 55. |
K1052380
|
[1] |
|
|
| 55. |
410114-00343
|
[1] |
|
|
| 56. |
K1052382
|
[1] |
|
|
| 56. |
410114-00342
|
[1] |
|
|
| 6. |
420-00226
|
[2] |
VALVE;LOCK
|
|
| 6A. |
K9000998
|
[1] |
SEAL KIT
|
|
| 7. |
S5110603
|
[16] |
WASHER
|
|
| 7. |
S5110603
|
[8] |
WASHER
|
|
| 8. |
S2212766
|
[16] |
BOLT;SOCKET M10X1.5X55
|
|
| 8. |
S2212766
|
[8] |
BOLT;SOCKET M10X1.5X55
|
|
| 9. |
S8000281
|
[3] |
O-RING
|
2180-1026D2
|
| 9. |
2180-1026D2
|
[3] |
O-RING
|
|
