| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

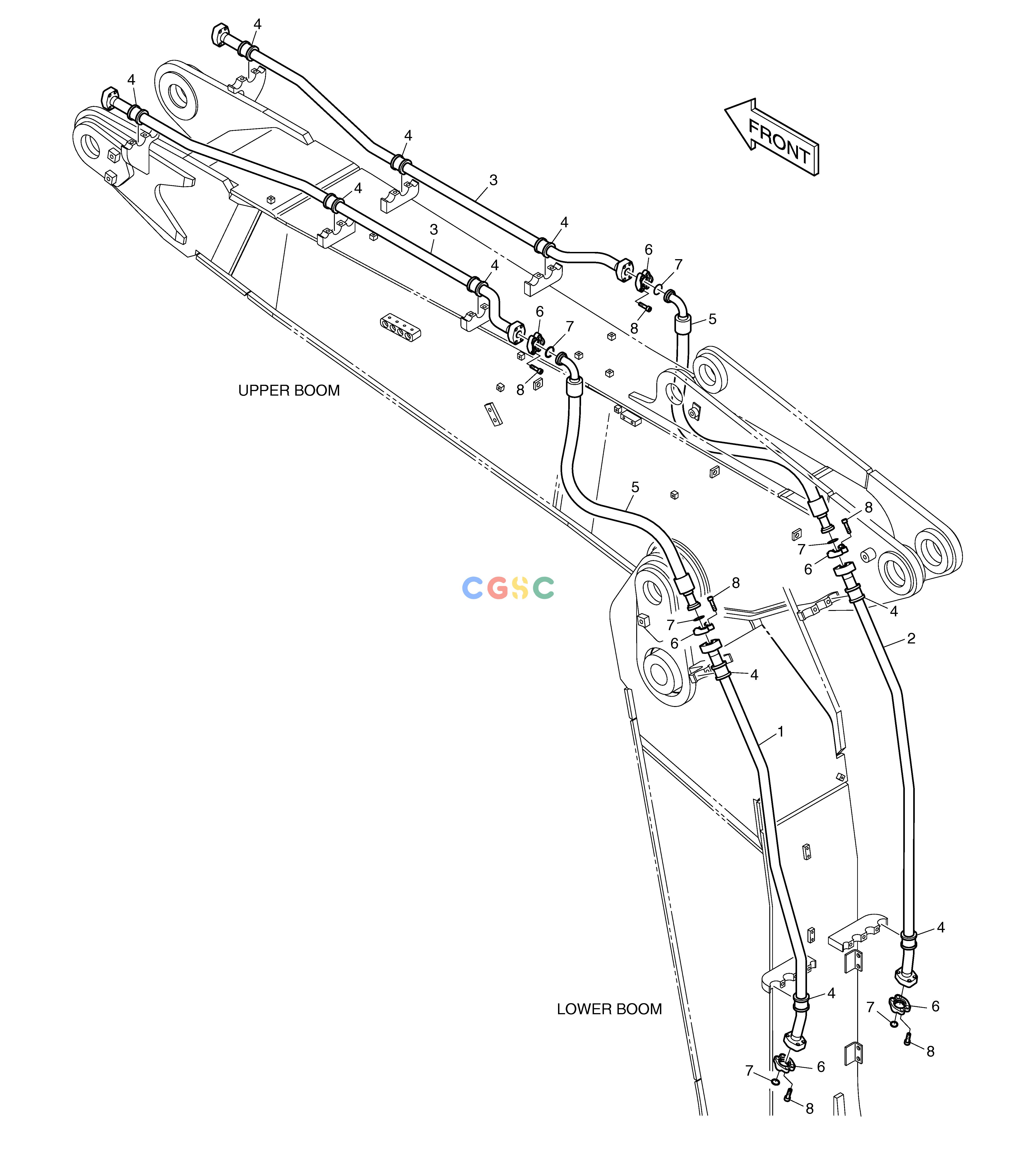

| -. | K1018424A | [-] | ONE & TWO WAY PIPING;ARTI. BOOM | |
| -. | 420212-14439 | [-] | ||
| 1. | K1018425 | [1] | PIPE | |
| 2. | K1018426 | [1] | PIPE | |
| 3. | K1018427 | [2] | PIPE | |
| 4. | K1010532 | [10] | RUBBER;PIPE | |
| 5. | DS2040552 | [2] | HOSE | |
| 6. | 2181-9078 | [12] | FLANGE;SPLIT | |
| 7. | 2180-1026D19 | [6] | O-RING | DS2856003 |
| 7. | DS2856003 | [6] | O-RING | |
| 8. | S2212466 | [24] | BOLT |
