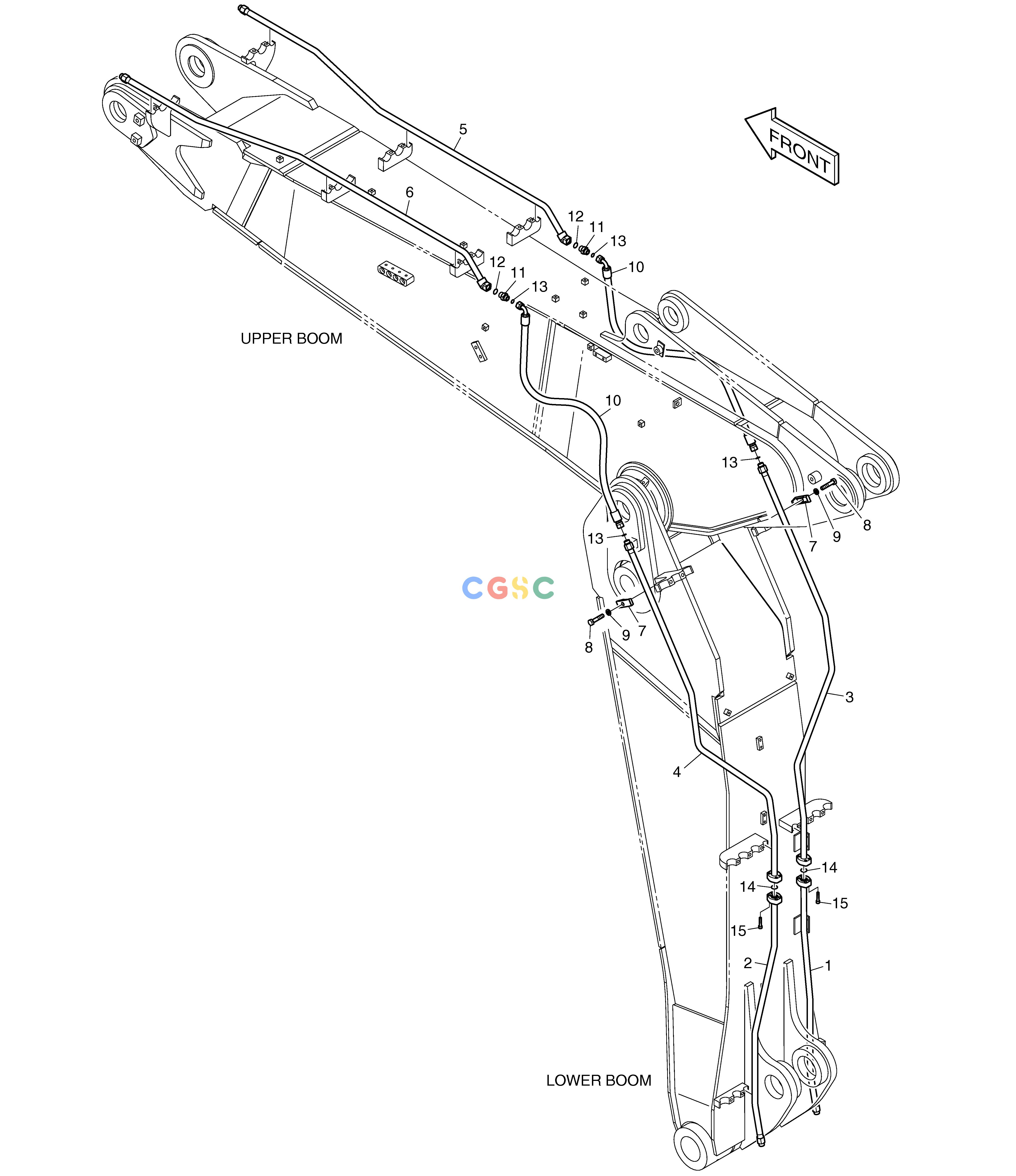

斗山零件查询ARTI.BOOM PIPING - ROTATING DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1018428
|
[-] |
ROTATING PIPING;ARTI. BOOM
|
|
| 1. |
K1018429
|
[1] |
PIPE
|
|
| 10. |
DS2013387
|
[2] |
HOSE
|
|
| 11. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 12. |
S8000181
|
[2] |
O-RING
|
|
| 13. |
S8030081
|
[4] |
O-RING
|
|
| 14. |
2180-1026D30
|
[2] |
O-RING
|
|
| 15. |
S2209466
|
[8] |
BOLT
|
|
| 2. |
K1018430
|
[1] |
PIPE
|
|
| 3. |
K1018431
|
[1] |
PIPE
|
|
| 4. |
K1018432
|
[1] |
PIPE
|
|
| 5. |
K1018433
|
[1] |
PIPE
|
|
| 6. |
K1018434
|
[1] |
PIPE
|
|
| 7. |
2124-1026D1
|
[2] |
CLAMP;PIPE
|
|
| 8. |
S0558566
|
[2] |
BOLT
|
|
| 9. |
S5102603
|
[2] |
. WASHER
|
|
