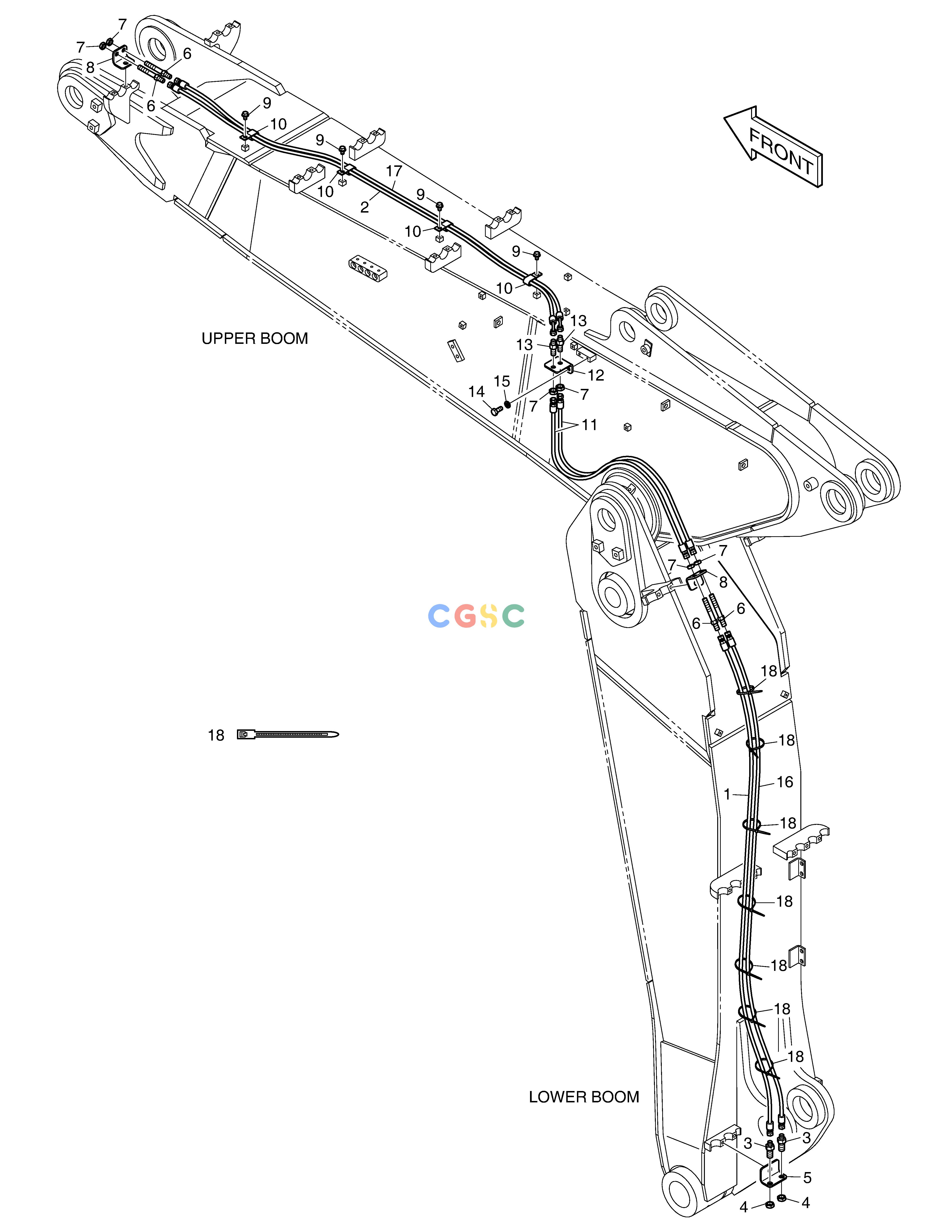

斗山零件查询ARTI.BOOM PIPING - QUICK FIT DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1018435A
|
[-] |
QUICK CLAMP PIPING;ARTI. BOOM
|
|
| -. |
420212-10182
|
[-] |
|
|
| 1. |
DS2053901
|
[1] |
HOSE
|
|
| 10. |
DS2805009
|
[4] |
CLIP
|
|
| 11. |
DS2053902
|
[2] |
HOSE
|
|
| 12. |
K1018716
|
[1] |
PLATE
|
|
| 13. |
DS2410007
|
[2] |
ADAPTER
|
|
| 14. |
S0512066
|
[2] |
. BOLT
|
|
| 15. |
S5102603
|
[2] |
. WASHER
|
|
| 16. |
DS2053940
|
[1] |
HOSE
|
|
| 17. |
DS2055984
|
[1] |
HOSE
|
|
| 18. |
2124-1084D3
|
[7] |
CLIP;BAND
|
|
| 2. |
DS2055959
|
[1] |
HOSE
|
|
| 3. |
181-00078D5
|
[2] |
ADAPTER
|
|
| 4. |
121-00010D1
|
[2] |
NUT
|
|
| 5. |
K1011074
|
[1] |
BRACKET
|
|
| 6. |
K1000356
|
[4] |
ADAPTER
|
|
| 7. |
121-00010D7
|
[6] |
NUT
|
|
| 8. |
K1018437
|
[2] |
PLATE
|
|
| 9. |
K1001029
|
[4] |
BOLT
|
|
