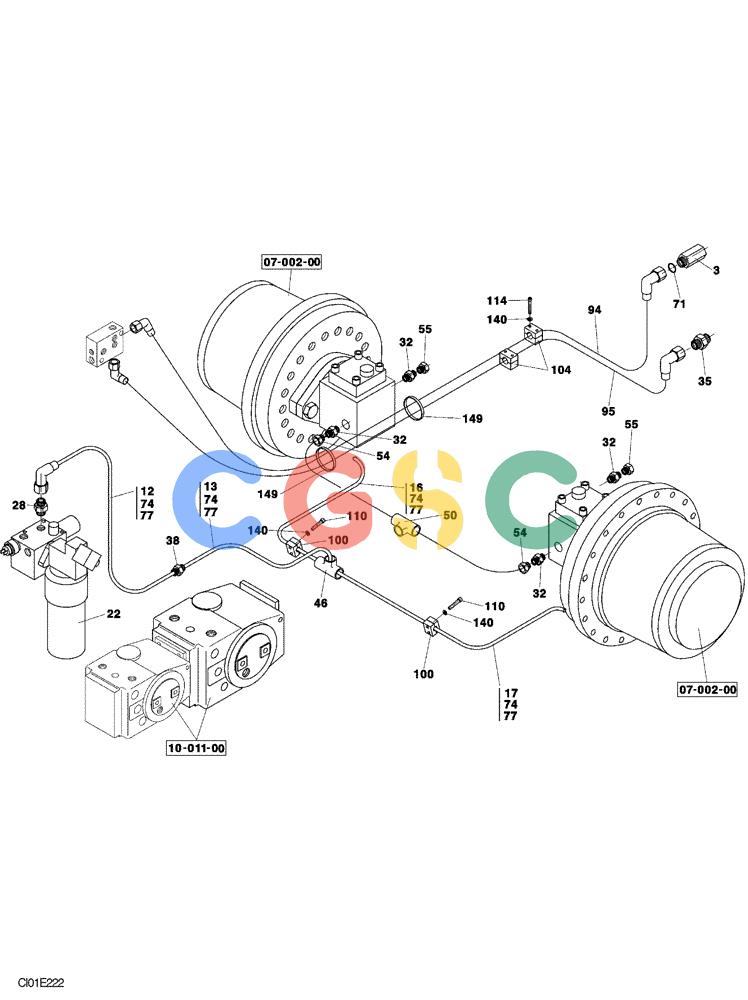

纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (10-004-00[01]) - HYDRAULIC CIRCUIT, TRAVEL - REAR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
642 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | ND031345 | [2] | HYD CONNECTOR | STA |
| 12. | ND104435 | [1] | RIGID TUBE | STA1350mm |
| 13. | ND104436 | [1] | RIGID TUBE | STA1200mm |
| 16. | ND104437 | [1] | RIGID TUBE | STA950mm |
| 17. | ND104438 | [1] | RIGID TUBE | STA1450mm |
| 22. | ND067795 | [1] | VALVE | STA |
| 28. | ND062153 | [1] | HYD CONNECTOR | STA |
| 32. | ND062135 | [4] | HYD CONNECTOR | STA |
| 35. | ND062224 | [1] | HYD CONNECTOR | STA |
| 38. | ND062291 | [1] | HYD CONNECTOR | STA |
| 46. | ND062294 | [1] | HYD CONNECTOR | STA |
| 50. | ND062335 | [1] | HYD CONNECTOR | STA |
| 54. | ND062391 | [2] | REDUCER | STA |
| 55. | ND062433 | [3] | RESTRICTOR | STA |
| 71. | ND073366 | [1] | WASHER | STA27 x 36 x 2 |
| 74. | ND062039 | [8] | SEAL | STA Superseded by part number: 11266811 |
| 77. | ND062046 | [8] | NUT | STA Superseded by part number: 11260711 |
| 94. | ND102226 | [1] | HOSE | STA1650mm |
| 95. | ND102227 | [1] | FLEXIBLE HOSE | STA1530mm |
| 100. | ND064797 | [5] | SLEEVE | STA |
| 104. | ND064801 | [2] | SLEEVE | STA |
| 110. | ND024231 | [5] | BOLT | STAM6 x 22 |
| 114. | ND024238 | [4] | BOLT | STAM6 x 50 |
| 140. | ND029248 | [4] | WASHER | STAID6,4 |
| 149. | ND106910 | [15] | STRAP | STA370mm |
