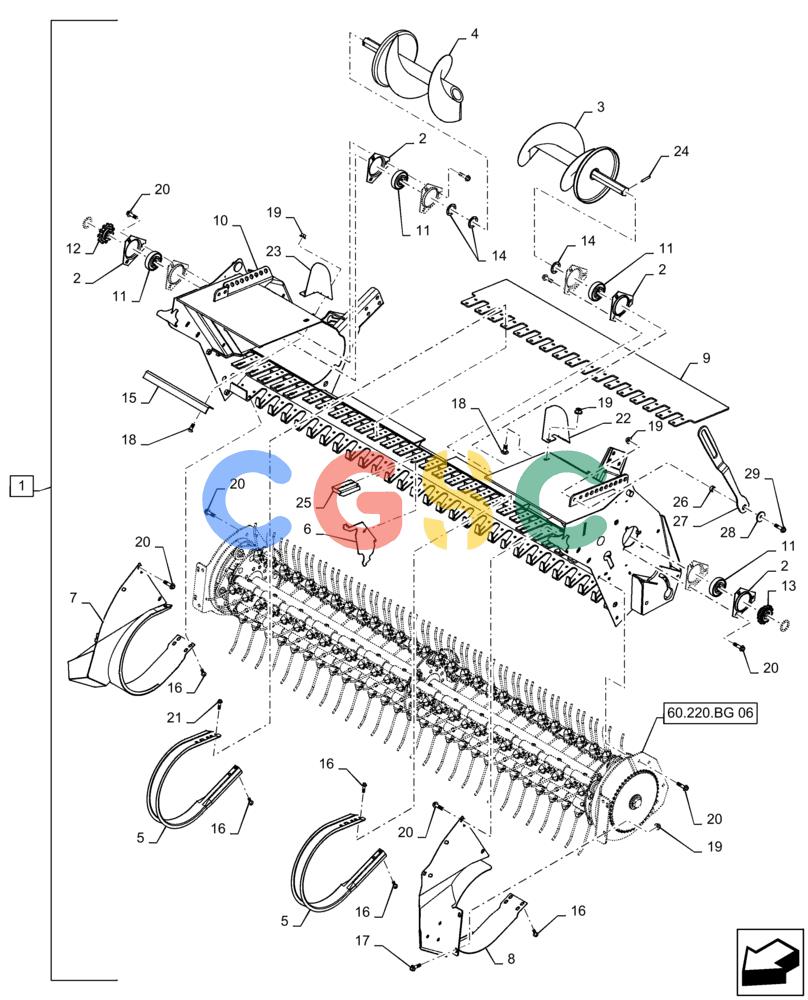

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (60.220.BD[07]) - VAR - 726918 - 1.8M NON ROTOR PICKUP ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
985 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47517967
|
[1] |
PICK-UP
|
NH
Service, 1.8M Service Non-Assist Roll
|
| 2. |
578189
|
[8] |
FLANGE
|
NH
Superseded by part number: 86620026
|
| 3. |
84375533
|
[1] |
AUGER
|
NH
LH
|
| 4. |
84375559
|
[1] |
AUGER
|
NH
RH
|
| 5. |
84329282
|
[27] |
GUARD
|
NH
|
| 6. |
84297360
|
[27] |
DIVIDER
|
NH
|
| 7. |
84305031
|
[1] |
GUIDE
|
NH
RH
|
| 7. |
47847841
|
[1] |
GUARD
|
NH
RH
|
| 8. |
84305034
|
[1] |
GUIDE
|
NH
LH
|
| 8. |
47881435
|
[1] |
GUARD
|
NH
LH
|
| 9. |
47864510
|
[1] |
FLOOR,260mm W x 1150mm L x 6.35mm Thk, Polyurethane
|
NH
|
| 10. |
84522950
|
[1] |
FRAME
|
NH
1.8M Pickup
|
| 11. |
86594423
|
[4] |
BEARING,28.6mm Hex x 72mm OD x 25mm W
|
NH
Superseded by part number: 84330069
|
| 12. |
84297306
|
[1] |
SPROCKET
|
PLO
11T, RC60
|
| 13. |
87037892
|
[1] |
SPROCKET
|
PA
13T, RC50 Superseded by part number: 87641197
|
| 14. |
47447659
|
[6] |
SPACER,44 mm OD x 2mm Thk
|
NH
|
| 15. |
84281955
|
[2] |
ANGLE
|
PLO
|
| 16. |
87039762
|
[82] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 17. |
9804261
|
[4] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 18. |
86633356
|
[6] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 19. |
9804278
|
[10] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 20. |
86050286
|
[24] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 21. |
87577839
|
[34] |
SELF-TAP SCREW,Hex Washer Hd, 5/16" - 18 x 7/8"
|
SAS
|
| 22. |
84385892
|
[1] |
SHIELD
|
PLO
LH Upper
|
| 23. |
84385890
|
[1] |
SHIELD
|
PLO
RH Upper
|
| 24. |
86625115
|
[2] |
PIN,M6 x 40mm OAL
|
IMO
|
| 25. |
84404702
|
[27] |
DIVIDER
|
NH
|
| 26. |
87020910
|
[1] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
| 27. |
84307932
|
[1] |
LINK
|
PLO
|
| 28. |
213404
|
[1] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
|
| 29. |
9804263
|
[1] |
BOLT,M10 x 49.2mm, Cl 8.8
|
NH
|
